Specification &Details

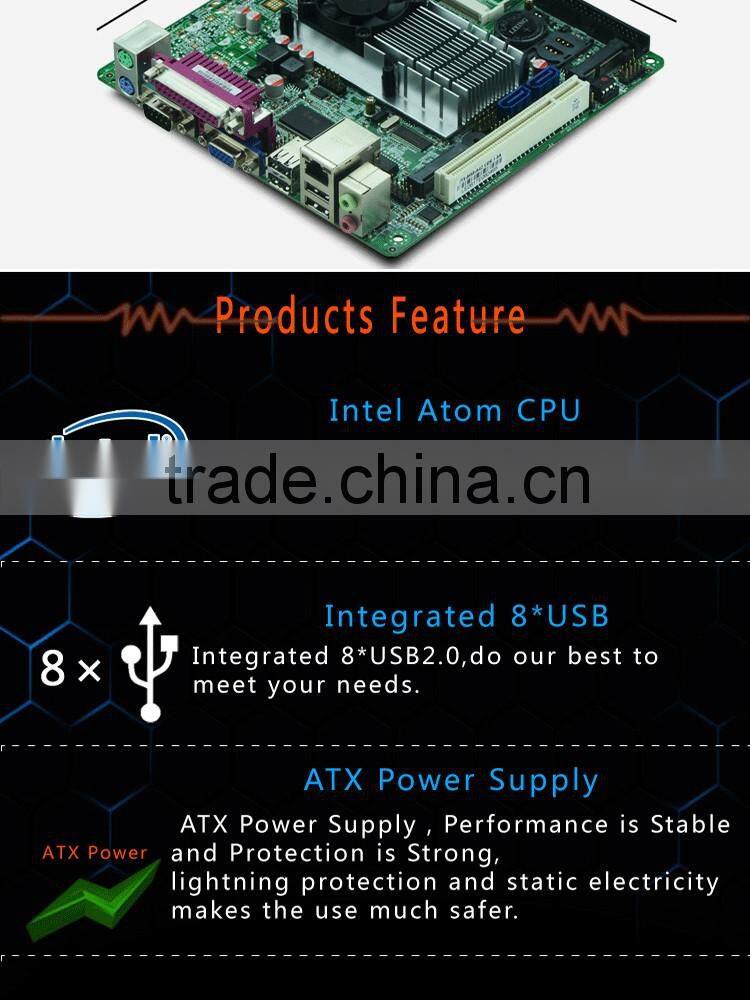

Intel Atom d525 Motherboard pos industrial cheapest mainboard support 18bit lvds
Specifications:
Model NO. |
ITX-M58_D56 VER:1.6A |
CPU |
Intel®D525/1.80GHz dual core CPU,TDP 13W |
Chipset |
Intel® 8201HBM chipset |
Memory |
1*SO DDRIII slot, support 1600/1333/1066MHz memory, max. Up to 2GB |
Graphics |
Intel®3150 Graphics |
Support 1*VGA,1*LVDS (support single channel 18BIT) | |
VGA;LVDS support synchronous/asynchronous display | |
LAN |
1* RTL8105E 100 Mbps LAN controller, support Wake-on-LAN/PXE |
Storage |
2* SATAII, transfer rate up to 3Gbps |
Audio |
ALC662 6channel HD audio controller, support MIC/Line-out / amplifier |
|
Expansion Slots

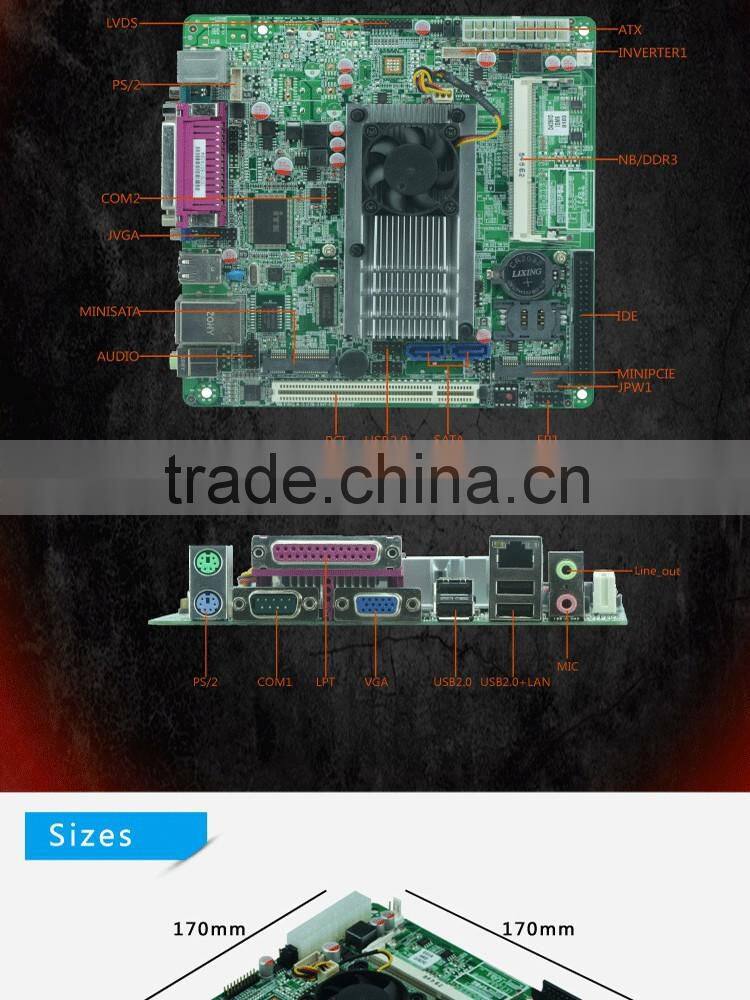

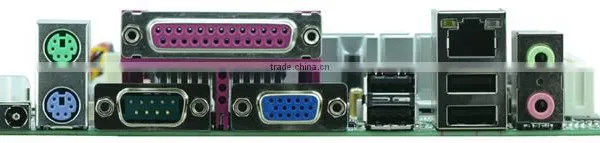

Rear I/O
|
1* 52pin PCIEx1 slot, support WIFI/3G module |
1* MSATA slot, support SSD,SSD transfer rate up to 3Gbps | |
1* 12V DC_JACK input | |
1* PS/2( KB&MS) | |
1* COM(RS232) | |
1* VGA | |
1* LPT | |
4* USB2.0 | |
1* RJ-45 | |
1* Audio (Line out / MIC) | |
|
Internal I/O |
1* LVDS (2*10pin),support single channel 24 BIT LCD display |
1* LVDS INVERTER(1*6pin) | |
1* JVGA1 (2*5pin) , same signal with DB15 | |
5* COM ( COM2 connector is 2*5pin ; COM3~6 connector is 2*20pin, COM2 supports RS485) | |
4* USB2.0 (If Mini-PCIE slot for 3G module, only support 2*USB2.0) | |
1* PS/2, KB/MS connector (1*6Pin) | |
1* AUDIO front panel audio connector (2*5pin) | |
1* SIM card socket | |
2*PWROUT (HDD power connector) | |
1* FP1 front panel function buttons and indicator connector (2*5pin) | |
1* ATX_12V | |
Fan Interface |
1* CPUFAN 3pin;1* SYSFAN 3pin |
BIOS |
AMI 8MB Flash ROM |

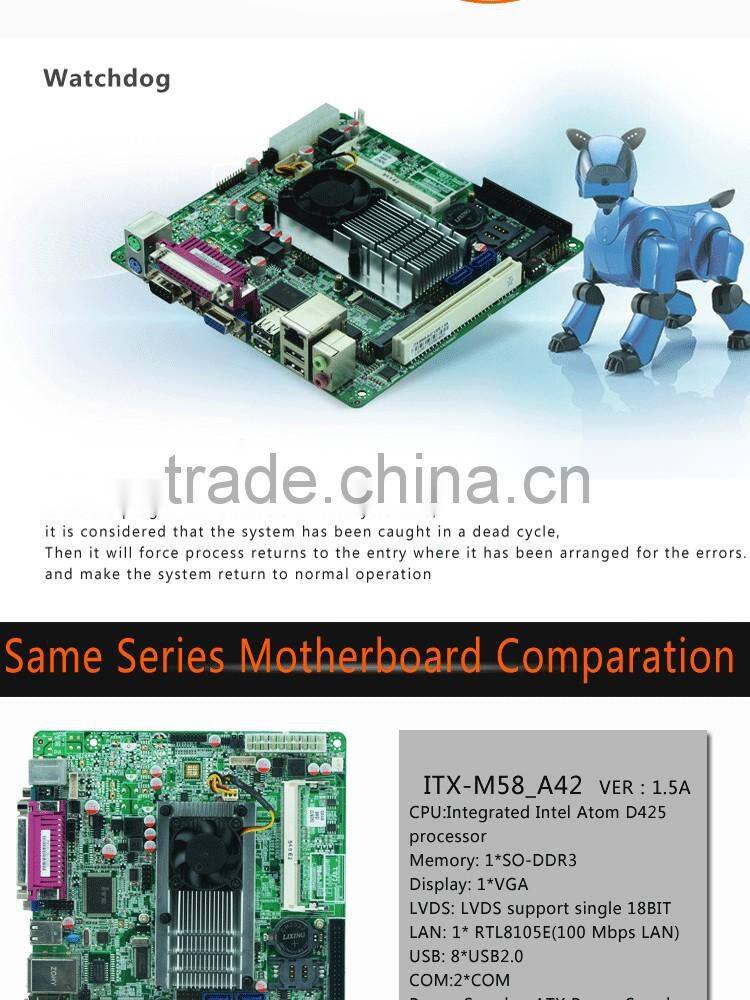

Watchdog |
Support hardware reset function (L256, 0~255 seconds) |
Power Input |
DC_12V single power supply |
Operating Temp. |
-10°C~60°C |
Storage Temp. |
-20°C~70°C |
Humidity |
5%-95% (relative humidity; non-condensing) |
Dimension |
170mm x 170mm |

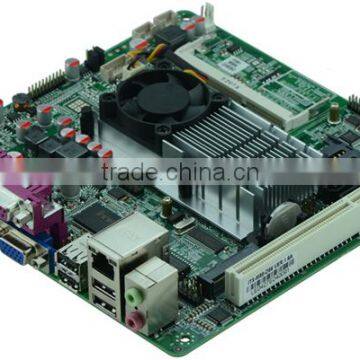

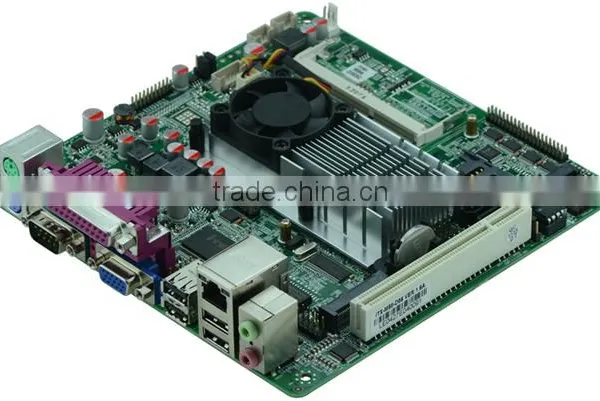

Images of product:
Order Information:
No. |
Model No. |
CPU |
Memory |
Display |
LVDS |
LAN |
USB |
COM |
RS485/422 |
Power |
1 |
ITX-M58_D56 VER:1.6A |
D525/1.80G |
1*SODDR3 |
1*VGA |
1*18BIT |
1*RTL805E |
8 |
6 |
COM2 |
DC12V |
2 |
ITX-M58_A45E VER:1.5A |
N455/1.66G |
1*SODDR3 |
1*VGA |
1*18BIT |
1*RTL805E |
8 |
2 |
X |
ATX |
3 |
ITX-M58_A50 VER:2.1 |
N450/1.66G |
1*SODDR2 |
1*VGA |
1*18BIT |
1*RTL805E |
8 |
2 |
X |
ATX |
4 |

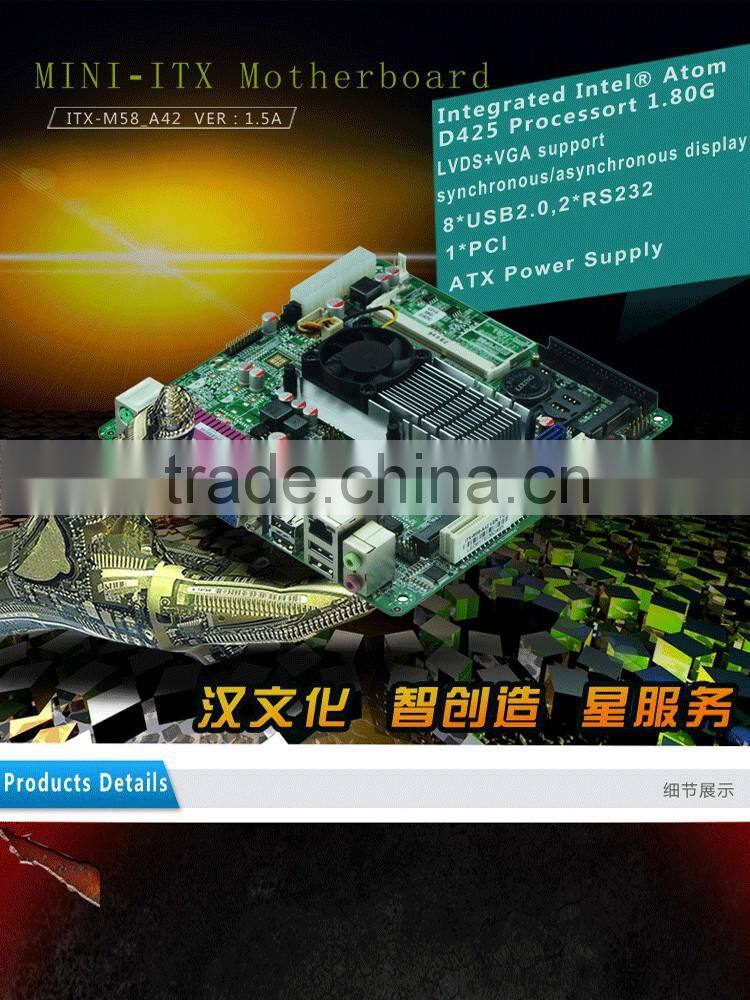

ITX-M58_A42 VER:1.5A |
D525/1.80G |
1*SODDR3 |
1*VGA |
1*18BIT |
1*RTL805E |
8 |
2 |
X |
ATX |
5 |

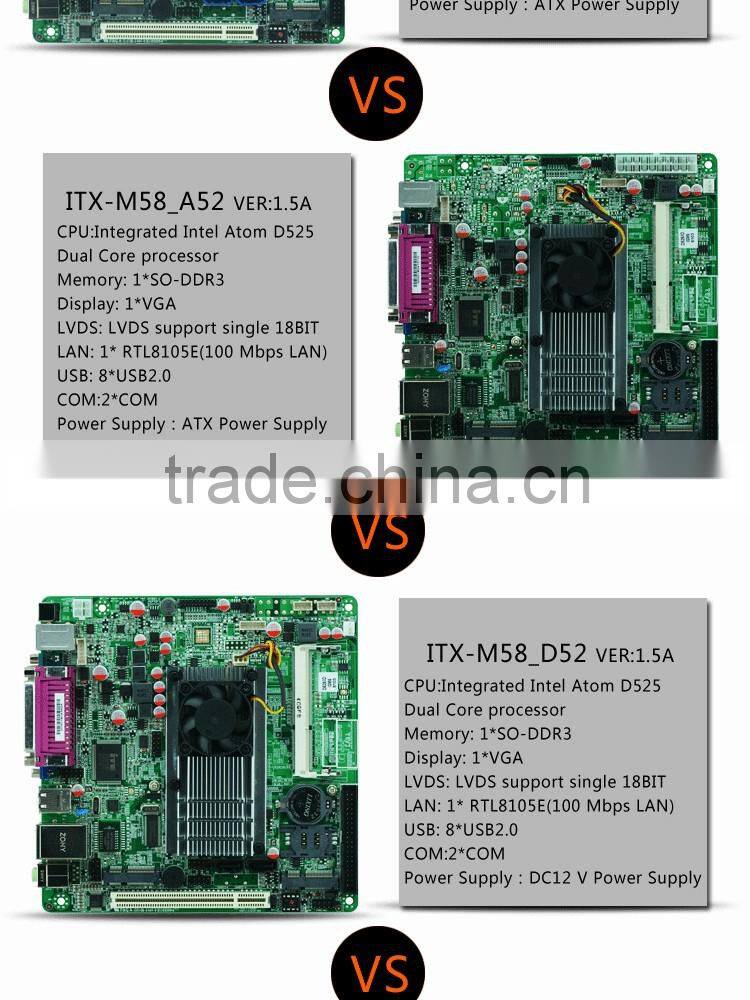

ITX-M58_A52 VER:1.5A |
D525/1.80G |
1*SODDR3 |
1*VGA |
1*18BIT |
1*RTL805E |
8 |
2 |
X |
ATX |
6 |

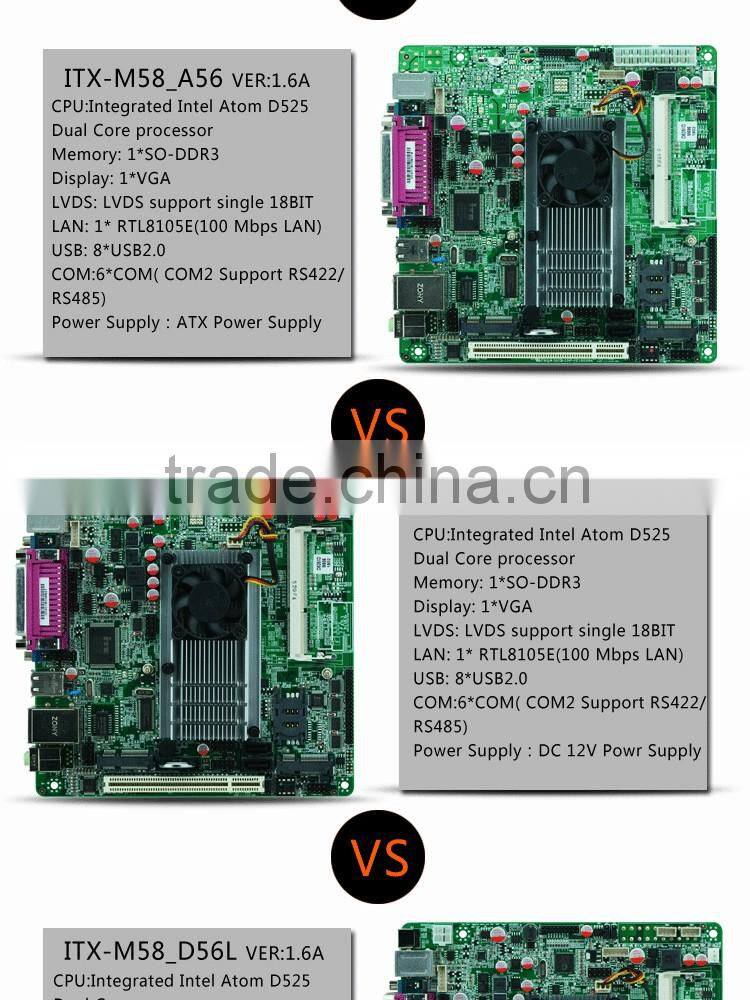

ITX-M58_A56 VER:1.6A |
D525/1.80G |
1*SODDR3 |
1*VGA |
1*18BIT |
1*RTL805E |
8 |
6 |
COM2 |
ATX |
7 |
ITX-M58_D52 VER:1.5A |
D525/1.80G |
1*SODDR3 |
1*VGA |
1*18BIT |
1*RTL805E |
8 |
2 |
X |
DC12V |
8 |
ITX-M58_D56L VER:1.6A |
D525/1.80G |
1*SODDR3 |
1*VGA |
1*24BIT |
1*RTL805E |
8 |
6 |
COM2 |
DC12V |
