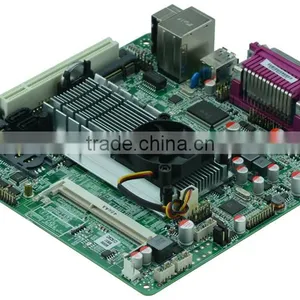

Network Security Motherboard Pos Motherboard With Lvds 2* SATAII, Transfer Rate up to 3Gbps thumbnail-1
Network Security Motherboard Pos Motherboard With Lvds 2* SATAII, Transfer Rate up to 3Gbps thumbnail-2
Network Security Motherboard Pos Motherboard With Lvds 2* SATAII, Transfer Rate up to 3Gbps photo-1

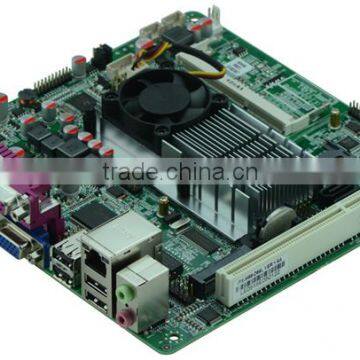

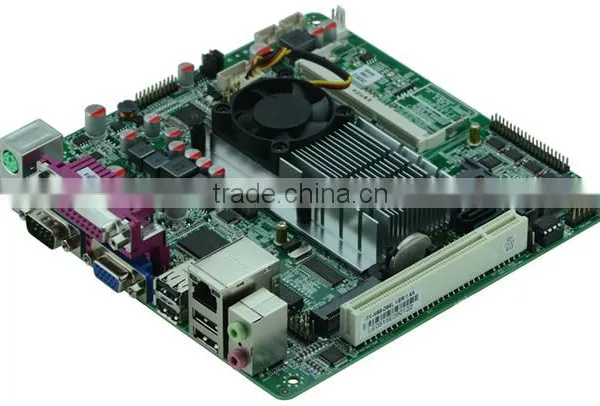

Network Security Motherboard Pos Motherboard With Lvds 2* SATAII, Transfer Rate up to 3Gbps photo-2
US$ 1 - 99 MOQ: 2 Units
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Embedded Industrial Motherboard
Brand Name:
YANYU GONGKONG
Contact Supplier Request Quote Chat Now
Shenzhen Hanzsung Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type Embedded Industrial Motherboard
Brand Name YANYU GONGKONG
Model Number ITX-M58_D56L M01
Place of Origin Guangdong, China

                                              Specification &Details

Network Security Motherboard pos motherboard with lvds  2* SATAII, transfer rate up to 3Gbps

Specifications:

Model NO.

ITX-M58_D56L VER:1.6A

CPU

Intel®D525/1.80GHz dual core CPU,TDP 13W

Chipset

Intel® 8201HBM chipset

Memory

1*SO DDRIII slot, support 1600/1333/1066MHz memory, max. Up to 2GB

Graphics

Intel®3150 Graphics

Support 1*VGA,1*LVDS (support single channel 24BIT)

VGA;LVDS support synchronous/asynchronous display

LAN

1* RTL8105E 100 Mbps LAN controller, support Wake-on-LAN/PXE

Storage

2* SATAII, transfer rate up to 3Gbps

Audio

ALC662 6channel HD audio controller, support MIC/Line-out / amplifier



Expansion Slots









Rear I/O



1* 52pin PCIEx1 slot, support WIFI/3G module

1* MSATA slot, support SSD,SSD transfer rate up to 3Gbps

1* 12V DC_JACK input

1* PS/2( KB&MS)

1* COM(RS232)

1* VGA

1* LPT

4* USB2.0

1* RJ-45

1* Audio (Line out / MIC)











Internal I/O

1* LVDS (2*10pin),support single channel 24 BIT LCD display

1* LVDS INVERTER(1*6pin)

1* JVGA1 (2*5pin) , same signal with DB15

5* COM ( COM2 connector is 2*5pin ; COM3~6 connector is 2*20pin, COM2 supports RS485)

4* USB2.0 (If Mini-PCIE slot for 3G module, only support 2*USB2.0)

1* PS/2, KB/MS connector (1*6Pin)

1* AUDIO front panel audio connector (2*5pin)

1* SIM card socket

2*PWROUT (HDD power connector)

1* FP1 front panel function buttons and indicator connector (2*5pin)

1* ATX_12V

Fan Interface

1* CPUFAN 3pin;1* SYSFAN 3pin

BIOS

AMI 8MB Flash ROM

Watchdog

Support hardware reset function (L256, 0~255 seconds)

Power Input

DC_12V single power supply

Operating Temp.

-10°C~60°C

Storage Temp.

-20°C~70°C

Humidity

5%-95% (relative humidity; non-condensing)

Dimension

170mm x 170mm

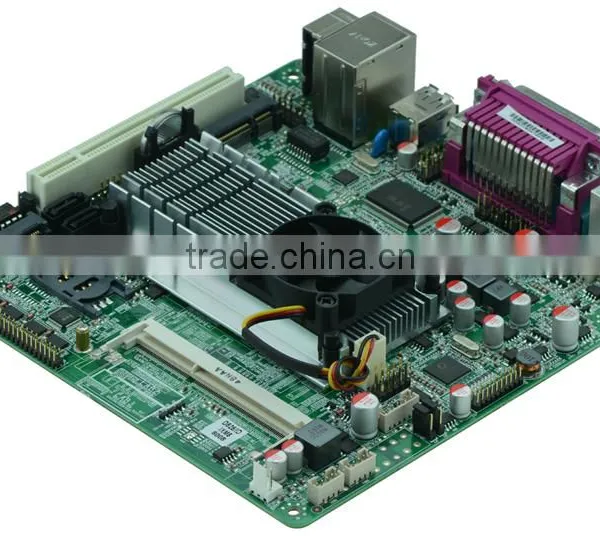

Images of product:

Network Security Motherboard pos motherboard with lvds 2* SATAII, transfer rate up to 3GbpsNetwork Security Motherboard pos motherboard with lvds 2* SATAII, transfer rate up to 3GbpsNetwork Security Motherboard pos motherboard with lvds 2* SATAII, transfer rate up to 3GbpsNetwork Security Motherboard pos motherboard with lvds 2* SATAII, transfer rate up to 3GbpsNetwork Security Motherboard pos motherboard with lvds 2* SATAII, transfer rate up to 3GbpsNetwork Security Motherboard pos motherboard with lvds 2* SATAII, transfer rate up to 3GbpsNetwork Security Motherboard pos motherboard with lvds 2* SATAII, transfer rate up to 3Gbps

Order Information:



No.

Model No.

CPU

Memory

Display

LVDS

LAN

USB

COM

RS485/422

Power

1

ITX-M58_D56L VER:1.6A

D525/1.80G

1*SODDR3

1*VGA

1*24BIT

1*RTL805E

8

6

COM2

DC12V

2

ITX-M58_A45E VER:1.5A

N455/1.66G

1*SODDR3

1*VGA

1*18BIT

1*RTL805E

8

2

X

ATX

3

ITX-M58_A50 VER:2.1

N450/1.66G

1*SODDR2

1*VGA

1*18BIT

1*RTL805E

8

2

X

ATX

4

ITX-M58_A42 VER:1.5A

D525/1.80G

1*SODDR3

1*VGA

1*18BIT

1*RTL805E

8

2

X

ATX

5

ITX-M58_A52 VER:1.5A

D525/1.80G

1*SODDR3

1*VGA

1*18BIT

1*RTL805E

8

2

X

ATX

6

ITX-M58_A56 VER:1.6A

D525/1.80G

1*SODDR3

1*VGA

1*18BIT

1*RTL805E

8

6

COM2

ATX

7

ITX-M58_D52 VER:1.5A

D525/1.80G

1*SODDR3

1*VGA

1*18BIT

1*RTL805E

8

2

X

DC12V

8

ITX-M58_D56 VER:1.6A

D525/1.80G

1*SODDR3

1*VGA

1*18BIT

1*RTL805E

8

6

COM2

DC12V
