To get more detailed information about our products,
YANYUGONGKONG - Intel industrial Firewall Industrial Motherboards /Appliance.
YANYUGONGKONG also provide the service of custom design to meet your special requirement.
Model No.:R873SL
8 Gigabit Ethernet Ports Network appliance firewall barebone ,firewall appliance 1U rackmount server ,firewall appliance router pfsense
Features
♦ Turbine copper fan heat sink structure
♦ High quality galvanized steel, compact structure, dustproof, wall-mounted installation
♦ Support Intel LGA1150 series processor
♦ 1 x VGA,2 x USB2.0,1 x COM
♦ 8 x Intel 825874L Gigabit Ethernets
♦ Dimension:430mm x 360mm x 46mm

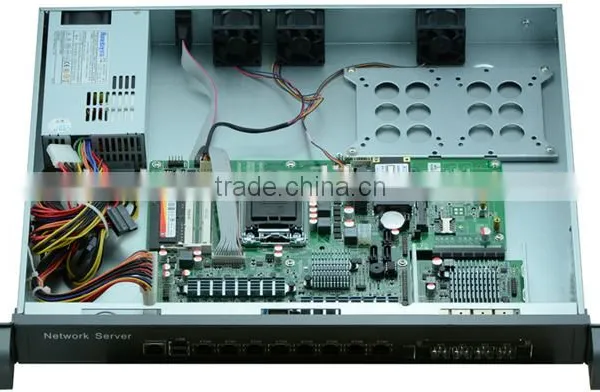

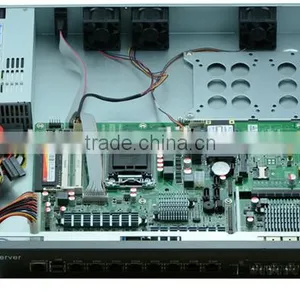

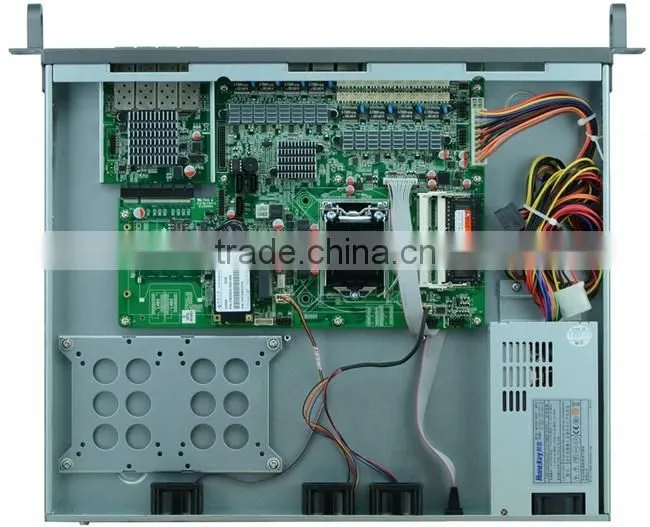

Pictures of product
Chassis |
Color |
Light sliver black |
Dimensions |
430mm x 360mm x 44.5mm(L x W x H) |
|
Structure |
Turbine copper fan heat sink structure |
|
Material |
Galvanized steel sheet |
|
Motherboard |
Model No. |
H87SL_B |
CPU |
Support LGA1150 Intel® Core™ i3/i5/i7 processor |
|
Graphics |
Integrated Intel®HD Graphics |
|
Memory |
1 x DDR3 /1.35V /8GB Ram memory |
|
Storage |
2.5"HDD |
N/A |
CF |
N/A |
|
SSD |
64G |
|
Features |
LAN |
Intel 82574L, 1000/100/10Mbps,8 x LAN Intel 82580EB 1000Mbps,4 x Fiber Ports |
USB |
2 x USB2.0 |
|
Serial Ports |
1x COM |
|
Display |
1 x VGA |
|
Audio |
N/A |
|
Expansion Slots |
2 x MINIPCIE(1 x MSATA,1 x WIFI interface ) |
|
Indicater |
1 x PWRLED, 1 x HDDLED |
|
System Control |
System Switch and AC power connector |
|
Wireless |
N/A |
|
Power |
Power supply |
220W |
Reliability |
Installation |
Desktop or wall_mounted |
Working T. |
0℃~45℃ |
|
Storage T. |
-20℃~70℃ |
|
Relative humidity |
5%-95%( relative humidity, non_condensing ) |
|
Vibration |
0.5g rms/5-500HZ/random/operating |
Order Information
No. |
Model No. |
CPU Socket |
Processor |
Motherboard |
Memory |
SSD |
LAN |
Fiber Port |
COM |
USB |
Power |
OS |
1 |
R873BG |
LGA1150 |
I3-4160/3.4GHz |
H87SL_B |
2G |
16G |
8x 82574L |
4x 82580EB |
1 |
2 |
220W |
ROS |
2 |
R813BV |
LGA1150 |
I3-4160/3.4GHz |
H81SL |
2G |
16G |
6x 82583V |
N/A |
1 |
2 |
220W |
ROS |
3 |
R873BL |
LGA1150 |
I3-4160/3.4GHz |
H87SL_B |
2G |
16G |
8x 82574L |
N/A |
1 |
2 |
220W |
ROS |
4 |
R873SL |
LGA1150 |
I3-4160/3.4GHz |
H87SL_B |
8G |
64G |
8x 82574L |
N/A |
1 |
2 |
220W |
ROS |
5 |
R813BG |
LGA1150 |
I3-4160/3.4GHz |
H81SL |
2G |
16G |
6x82583V |
4x82580EB |
1 |
2 |
220W |
ROS |
|
YANYUGONGKONG(HANZSUNG) MEMBER OF INTEL® IOT ALLIANCE, is a R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products. Our products include:industrial motherboard and computer, OEM / ODM available.
|
1-3 YEARS MANUFACTURER'S LIMITED WARRANTY
Hanzsung products have been tested for quality control and free of defects prior to shipping. If a product is not working properly, please contact our technical support staff so they may assist you.
Please send product only, do not send accessories or other parts if not requested as they may not be returned.
4F Building G, Heng Changrong Technology Park,
HuaNing RD, DaLang Street,
Longhua,BaoAn District,
Shenzhen City,China
Shenzhen Hanzsung Technology Co., Ltd.
Hanzsung confirms the feasibility of the repair and issues a RMA number to the customer for tracking the repair status.
FedEx,EMS,UPS Express Saver,TNT,DHL,UPS Expedited
Tag: 1U atom server/1U mini server/ 1u server case
