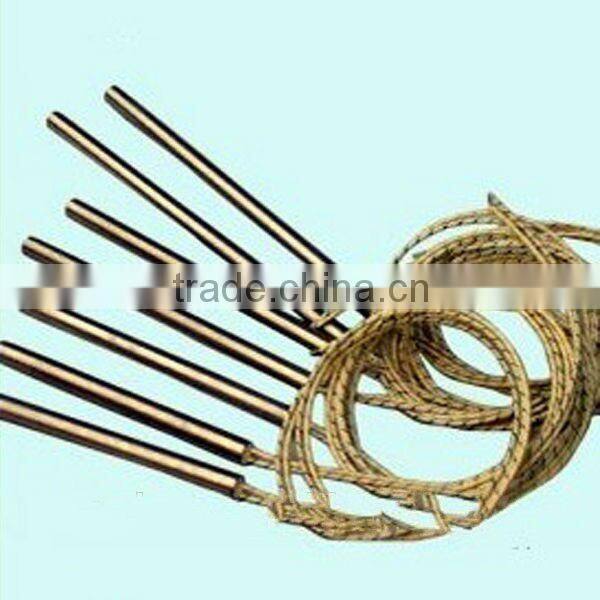

12v High Watt Density Electric Cartridge Heater
General Information
An electric cartridge heater is a tube-shaped, heavy-duty, industrial joule heating element (electrical resistance) used in the process heating industry, usually custom manufactured to a specific watt density, based on its intended application. Highly compacted they reach a surface watt density of up to 30 w/cm².
It may be used to heat any kind of substance or material, such as oil, air, or sugar. However, a common application is plastic pellets, which are melted in order to form molded plastic parts. An example of such a process is the "hot runner" process. Electric cartridge heater resemble tubular heaters structurally but tend to have higher watt densities.
Characteristics & Properties
- Tube diameter: Φ4mm-Φ30mm
- Tube Material: SS304, SS316, SS321 and NICOLOY800 etc
- Insulation Material: High-purity MgO
- Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire
- Wattage density: high/middle/low (5-25w/cm2)
- Lead Connection Option: Crimped or Swaged leads
- Lead wire type: 10" Standard (Teflon/silicone high temperature fiberglass)
Heat intensity |
Not exceeding 30w/cm2 (advisable) |
Power |
Depends on the dimension |
Exhaust extreme (when cold) |
<=0.1mA to 242 v. |
Insulation (when cold) |
5 Min Ohms 500 Watts minimum |
Dielectric strength |
1500v. 1/sec |
Working temperature |
750 Deg C max. |
Length tolerance |
+/-1.5% |
Diameter tolerance |
-0.02 to -0.06 mm |
Cut off connection tolerance |
+/-15 mm |
Power tolerance (w) |
+5 % - 10 % |
Cold areas |
Depends on length and diameter 5-25mm |
Suggested Applications
- Liquid Immersion of Electric Cartridge Heater
- Plastic Molds of Electric Cartridge Heater
- Dies of Electric Cartridge Heater
- Labeling of Electric Cartridge Heater
- Medical Equipment of Electric Cartridge Heater
- Platens of Electric Cartridge Heater
- Packaging Equipment of Electric Cartridge Heater
- Hot Stamping of Electric Cartridge Heater
- Sealing of Electric Cartridge Heater
- Injection Molding of Electric Cartridge Heater
To Order
Custom heaters, shapes and voltages are available on request for Electric Cartridge Heater.
Please contact us with your special requirements. We are pleased to contact you if you would like more information or want to discuss custom product availability and pricing.
