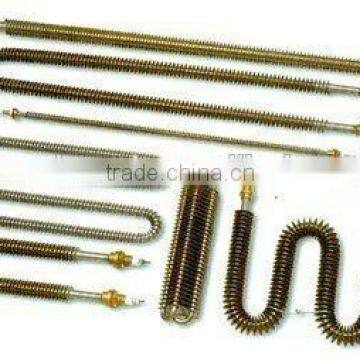

Spiral Fin Tube Heater Fin Tube Air Heater
General Information
Fin Tube Air Heater is a tube-shaped, heavy-duty, industrial joule heating element (electrical resistance) used in the process heating industry, usually custom manufactured to a specific watt density, based on its intended application. Highly compacted they reach a surface watt density of up to 30 w/cm².
It may be used to heat any kind of substance or material, such as oil, air, or sugar. However, a common application is plastic pellets, which are melted in order to form molded plastic parts. An example of such a process is the "hot runner" process. Stainless Steel Fin Tube Air Heater resemble tubular heaters structurally but tend to have higher watt densities.
Characteristics & Properties
- Tube diameter: Φ4mm-Φ30mm
- Tube Material: SS304, SS316, SS321 and NICOLOY800 etc
- Insulation Material: High-purity MgO
- Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire
- Wattage density: high/middle/low (5-25w/cm2)
- Lead Connection Option: Crimped or Swaged leads
- Lead wire type: 10" Standard (Teflon/silicone high temperature fiberglass)
Heat intensity |
Not exceeding 30w/cm2 (advisable) |
Power |
Depends on the dimension |
Exhaust extreme (when cold) |
<=0.1mA to 242 v. |
Insulation (when cold) |
5 Min Ohms 500 Watts minimum |
Dielectric strength |
1500v. 1/sec |
Working temperature |
750 Deg C max. |
Length tolerance |
+/-1.5% |
Diameter tolerance |
-0.02 to -0.06 mm |
Cut off connection tolerance |
+/-15 mm |
Power tolerance (w) |
+5 % - 10 % |
Cold areas |
Depends on length and diameter 5-25mm |
Suggested Applications
- Liquid Immersion of Fin Tube Air Heater
- Plastic Molds of Fin Tube Air Heater
- Dies of Fin Tube Air Heater
- Labeling of Fin Tube Air Heater
- Medical Equipment of Fin Tube Air Heater
- Platens of Fin Tube Air Heater
- Packaging Equipment of Fin Tube Air Heater
- Hot Stamping of Fin Tube Air Heater
- Sealing of Fin Tube Air Heater
- Injection Molding of Fin Tube Air Heater
To Order
To custom Fin Tube Air Heater, Shapes, Watts and Voltages are available on request.
Please contact us with your special requirements. We are pleased to contact you if you would like more information or want to discuss custom product availability and pricing.
