Specifications
electric lab oven SiC silicon carbide heating element1.Temperature:600-1600C
2.Types:ED,GC,U,W,SCR
3.Diameter:8-54mm
1600C electric lab oven SiC silicon carbide heating element
Temperature: 600-1600C
Shapes: ED, GC, DB, U, W, UL, SC, SCR, UX
Diameter: 8mm, 10mm,12mm, 14mm, 16mm, 18mm, 20mm, 25mm,30mm,35mm, 40mm, 45mm, 50mm and so on.
1) Non-metallic heating element, based on material of high quality green silicon carbide.
2) Compared with metal, SiC heating element is characterized by anti-oxidation, corrosion resistance, long service life, deformation, easy installation and maintenance.
3) Widely used in multiple high temperature furnace(magnetic material, powder metallurgy, ceramic, glass, metallurgy and mechanical used) and other electric heating devices
4) SiC heating element can be used in air atmosphere without any protect atmosphere.
Specific gravity |
2.6~2.8g/cm3 |
Bend strength |
>300kg |
Hardness |
>9MOH’S |
Tensile strength |
>150kg/cm3 |
Porosity rate |
<30% |
Radiancy |
0.85 |
Technical parameter of rod type silicon carbide heating element
Diameter (OD, mm) |
Hot zone (HZ, mm) |
cold zone (CZ, mm) |
Overall length (OL, mm) |
Range of resistance (ohms) |
12 |
150-300 |
150-200 |
450-700 |
1.85-3.15 |
14 |
200-400 |
200-250 |
600-900 |
1.22-2.40 |
16 |
300-600 |
250-350 |
800-1100 |
1.60-3.00 |
20 |
300-900 |
300-400 |
1100-1500 |
1.14-3.10 |
25 |
300-1000 |
300-450 |
900-1600 |
0.75-2.40 |
30 |
400-1100 |
300-500 |
1000-1800 |
0.70-1.82 |
31.7 |
356-1499 |
280-406 |
916-2261 |
0.5-2.25 |
35 |
40-1700 |
300-400 |
1200-2300 |
0.68-2.89 |
38.1 |
406-1422 |
280-394 |
966-2210 |
0.4.-1.36 |
40 |
500-1700 |
300-400 |
1300-2300 |
0.60-2.02 |
44.4 |
508-2437 |
280-432 |
1068-3277 |
0.36-1.66 |
50 |
1000-2000 |
400 |
1800-2800 |
0.73-1.46 |
54 |
508-2438 |
305-458 |
862-3278 |
0.30-1.40 |

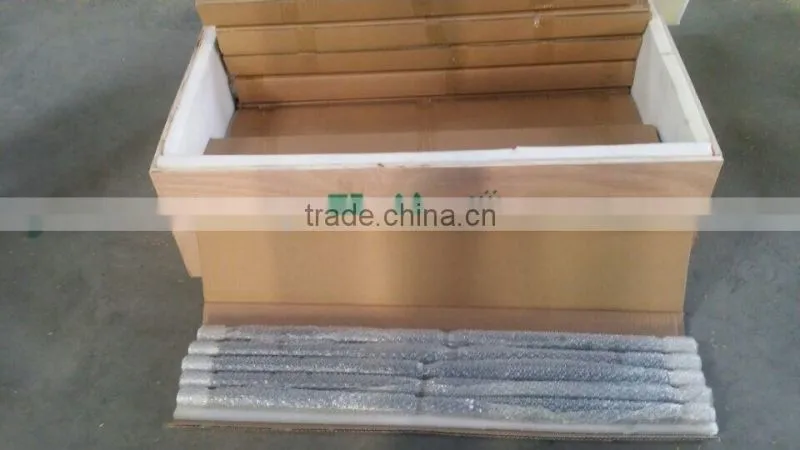

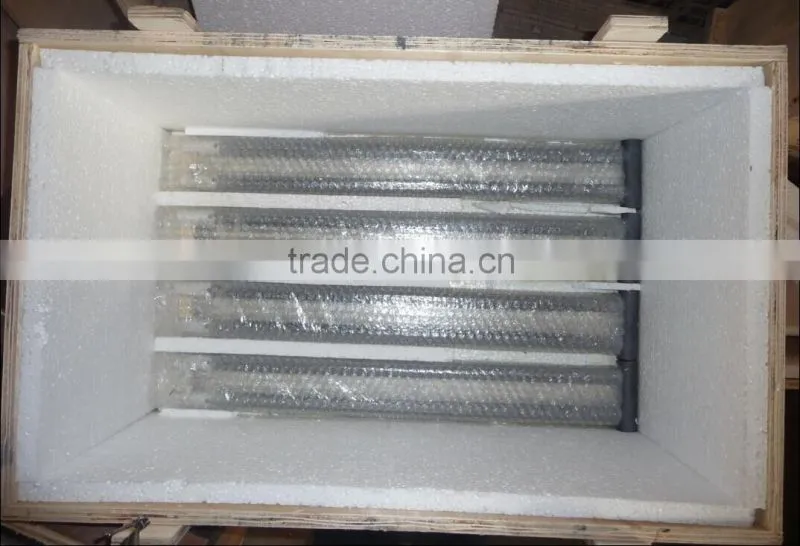

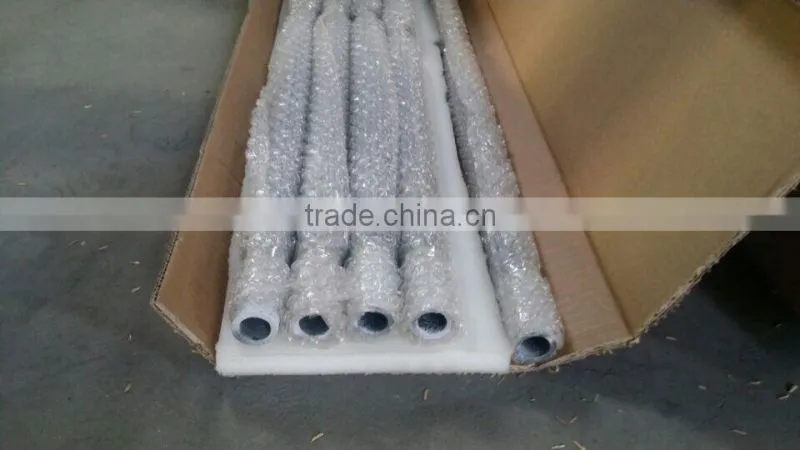

if any heater is broken during delivery, we would return, resend or refund to you!

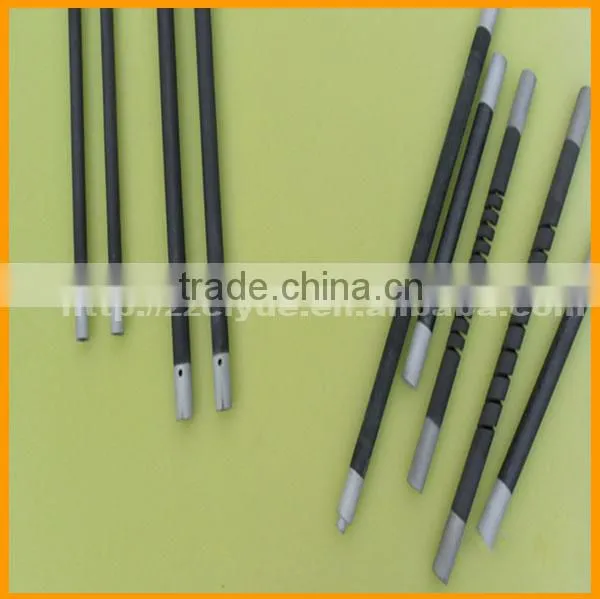

SiC heating elements (for more details, please press the picture )
MoSi2 heating elements (press the picture for more details)

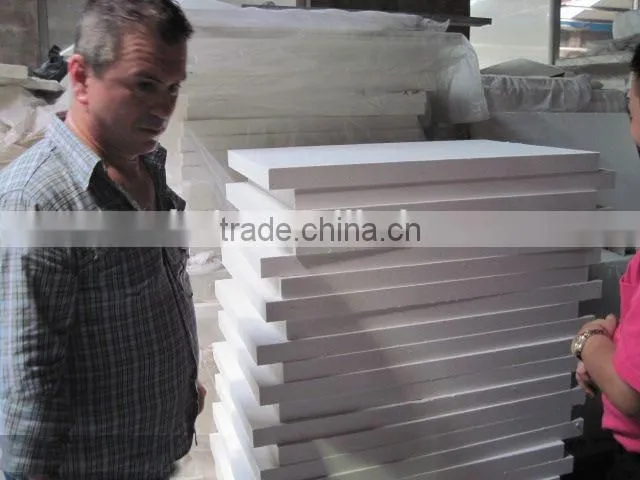

Ceramic fiber board

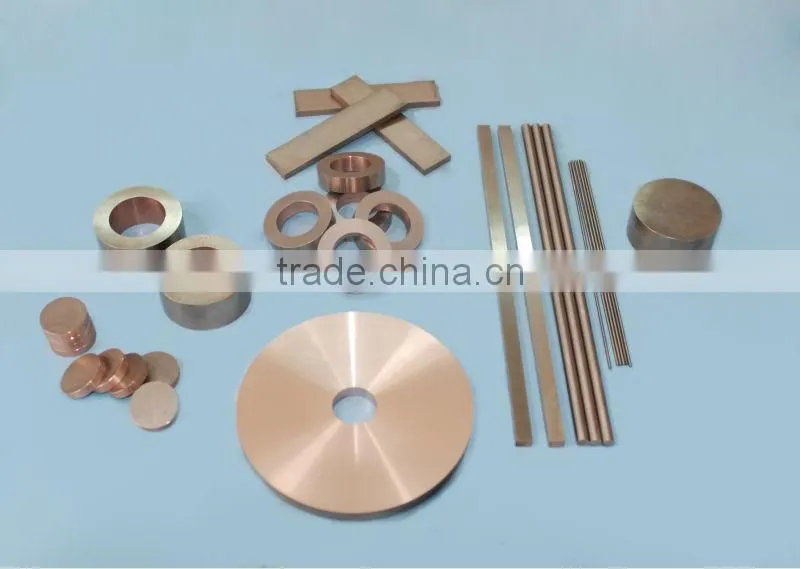

Tungsten & Molybdenum products
