high speed bubble bag making machine made in China
I.Main specification
1. Electrical control system
Servocontrol motor, microprocessor controller, LCD display, adjusting parameter by
touching screen, auto temperature controller.
2. Triangle forming rack .
3. Main transmission system.
4. Heat seal equipment ;
5. Cooling system;
6. Perch brake system;
7. Special design structure of rear feeder, Running stably.
8. Electro-static remover.
9. PLC control system
II.Technical data
| Model | MX-B75R |
| Bag making width | 60~700mm |
| Bag making length | 60~1000mm |
| Bag making speed | 20~130 bags/min (if two line making, efficiency double) |
| Thickness | foam 0.5mm~2mm bubble film 3mm~5mm |
| Total power | 6.5kw |
| Consumption power | 2.8~4.8kw |
| Electricity | 380V(three phases) /220V(single phase), 50Hz-60Hz |
| Machine dimension | L : 5m , W : 2.8m, H : 1.6m. |
| Weight | 960kg |
III. Main parts of the machine

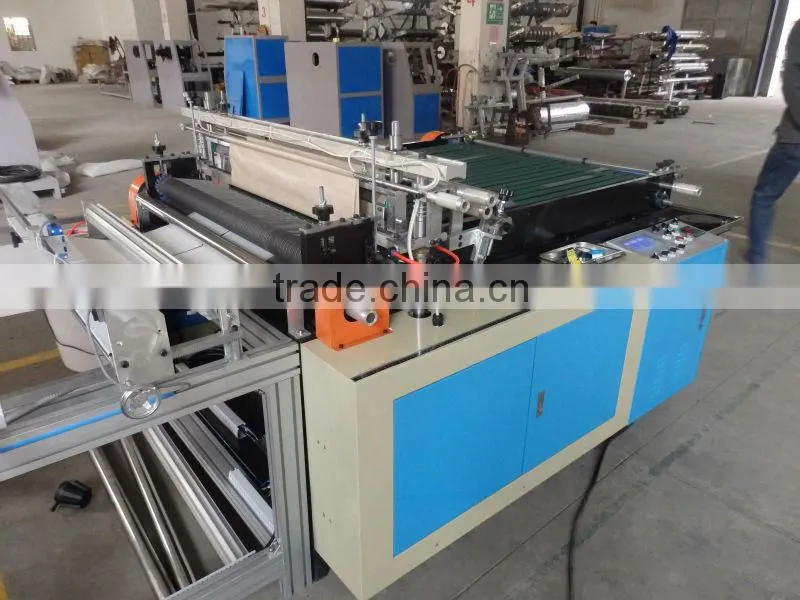

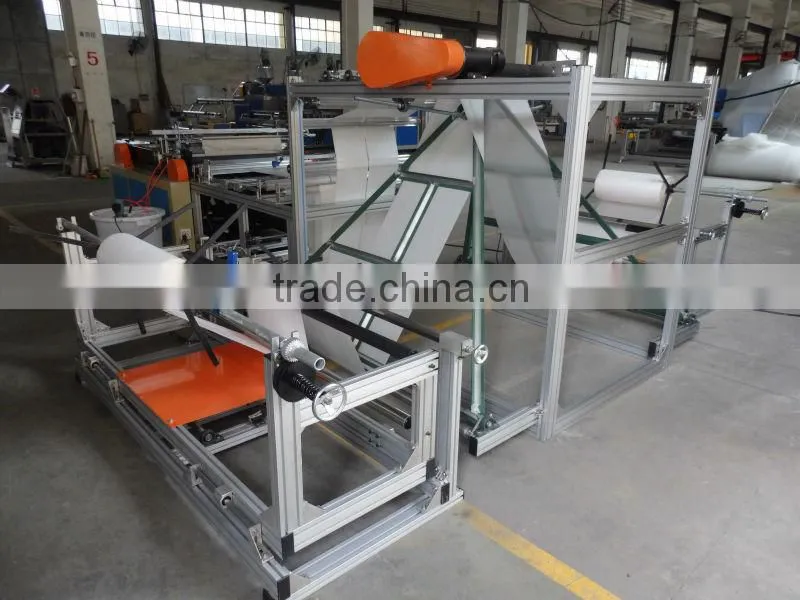

sealing part forming part (front)

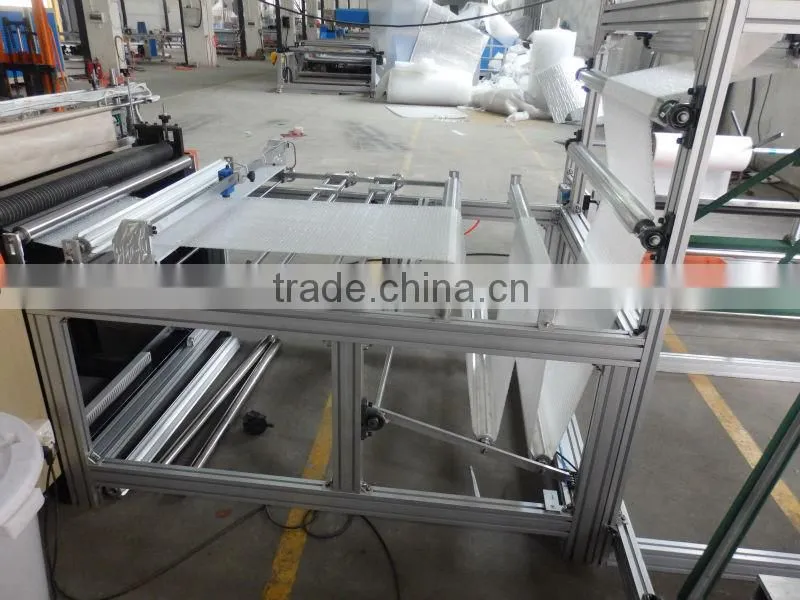

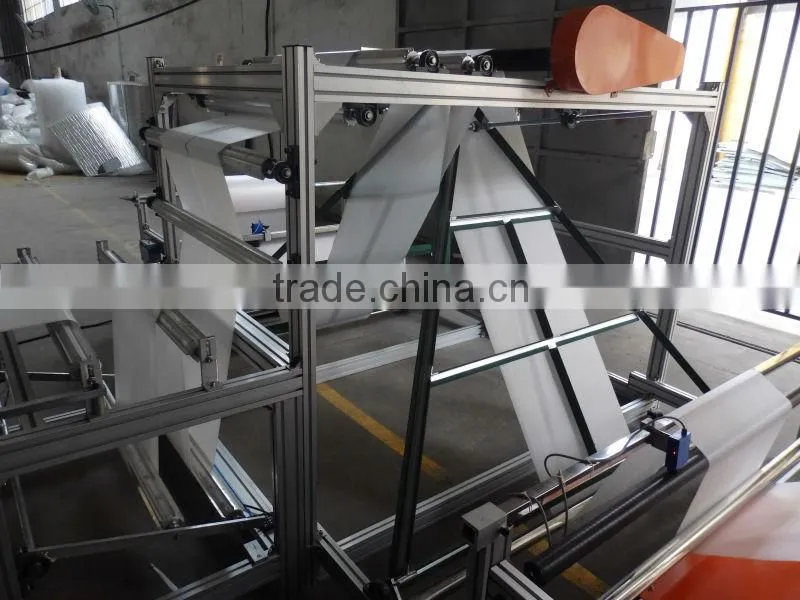

forming part detail

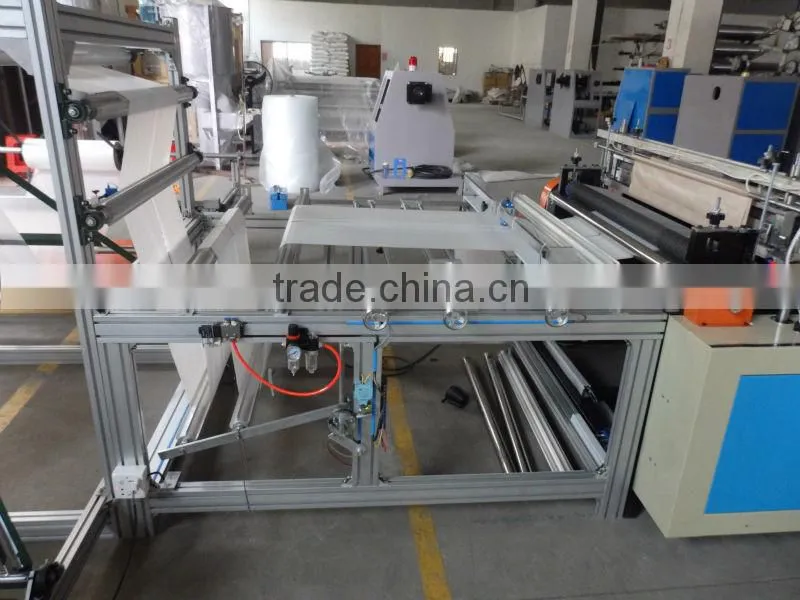

forming part (back)

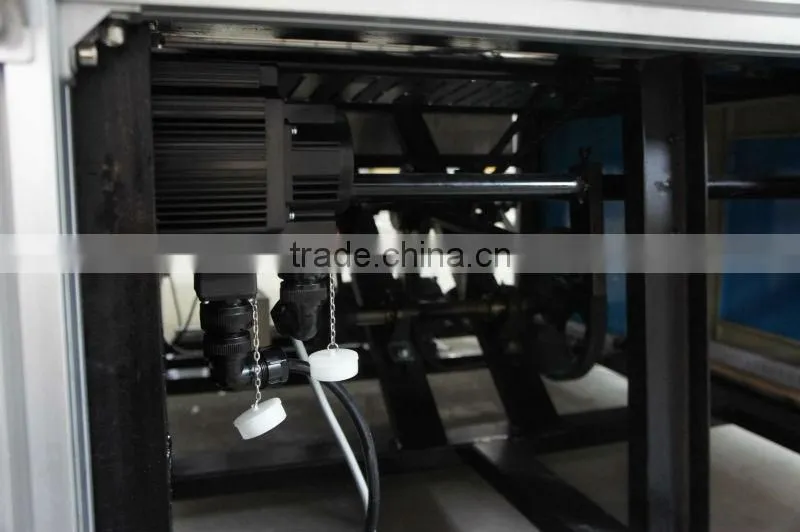

motor profile of the machine

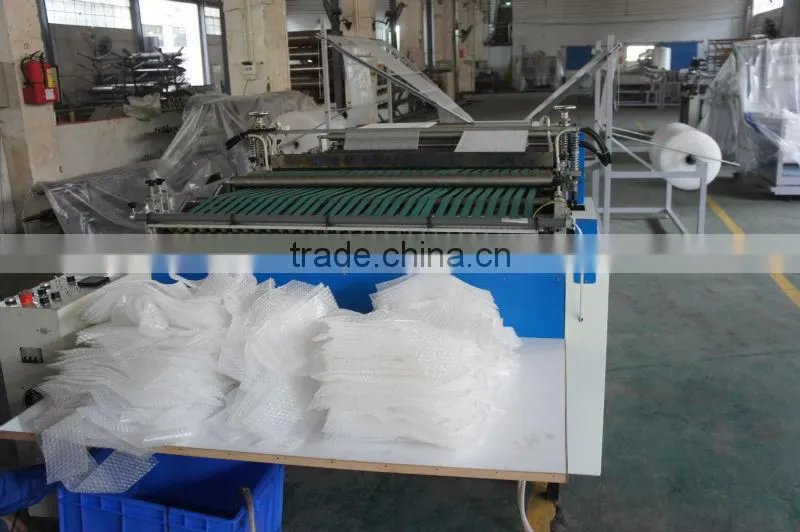

IV. Products of the machine
a steel pallet to protect the machine at the bottom and wrap the whole machineby air bubble film
1. The Seller send 2 engineers to the Buyer’s factory for Installation, Trial Running & Training. The Working duration of the 2 engineers in the Buyer’s factory will be 7 days.
2. The Buyer will pay the round airfare and will be responsible for the food, hotel and local transportation of the engineers .
3. The Buyer should offer a Chinese Interpreter for the seller’s installation engineers.
4. The Buyer should provide the Seller with required documents & help related to the entrance Visa.
5. The Seller offers one year Quality Guarantee of the machines to the Buyer.
Malex has focused on the production of packaging equipment--air bubble film machine more than 10 years. It is one of the enterprises with the National Sandards Planning (NSP);
Malex's bubble film machine, bag making machine, has passed CE certification, and smoothly entry into the EU market and is popular by customers.
All Malex's products, will be one-year warranty and lifetime technical support.
Malex will send engineers to client's company for installing and training.
Main products: air bubble film machine, bubble film foil / craft laminating machine, bag making machine.
Scale: more than 30 workers, more than 10 office staff.
1,How long is the producing time?
60 days after receiving the deposit.
2,How long is the warranty?
1 year.
