Specifications
7-layer Laminated MachineFeatures:1. inner water cooling mould, good cooling effect;
2. fast producing speed;
3. good prod
Introduction for 7-layer Laminated Machine.[5 Screw Extruder]
1. Main parts: three extrusion parts, three electrical control parts,one aluminized film unwinding units, forming part and winding part.
2. Same natures with air bubble film machine, this machine can produce two, three or five layers air bubble film, can laminate the bubble film with aluminum film, brown paper and other with PE thin film into seven layers laminated films with special use.
3. Adopting Japanese "Nano" technology and high density, anti high temperature silica rubber roller to laminate film, the film will not stick to the rubber roller, pressing film smoothly, good laminated result to the brown paper and aluminum film.
4. Be able to manufacture various specifications of bubble between Φ6mm and Φ30mm and forming mould with different heights.
5. Be able to manufacture various width specifications of air bubble film machines between 1000-2500mm
6. Produce product at once with high productivity, efficiency and high product quality.

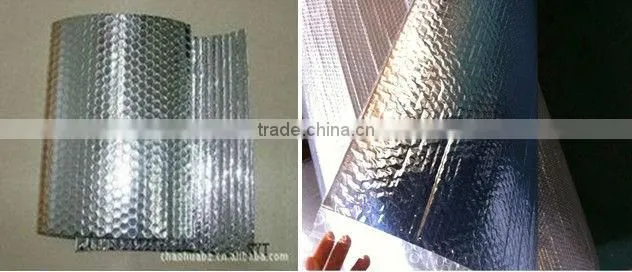

Photo of final product:

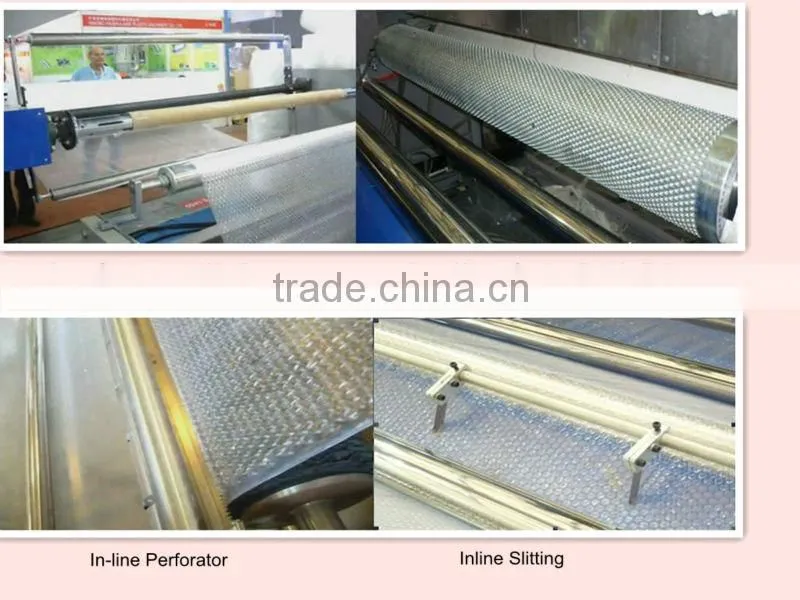

Other Features
Technical parameter
| Model | MX-W125SA | MX-W150SA | MX-W200SA |
Screw diameter (mm) |
Φ 55*5 | Φ 55/ Φ 65*4 | Φ 65/ Φ 75*4 |
Ways of changing net |
simple | simple | simple |
Width (mm) |
1250 | 1500 | 2000 |
Max output kg/hr |
105-160 | 150-240 | 300-320 |
Max effciency m/hr |
700-1300 | 700-1300 | 700-1300 |
Total power kw |
210 | 282 | 362 |
Consumption power kw |
65-75 | 90-100 | 120-135 |
Layer |
7 | 7 | 7 |
Weight (kg) |
12800 | 14200 | 17500 |
