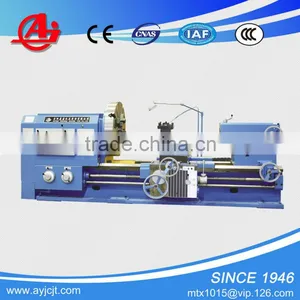

Horizontal Heavy Duty/roll LatheCW61100B for Sale
US$ 25,600 - 126,900
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Lathe CW6163BUS$ 10,880 - 99,500MOQ: 1 Set -
Horizontal Heavy Duty Lathe C61125(16Ton)US$ 47,800 - 206,900MOQ: 1 Set
-
Conventional Lathe Heavy Duty LatheCW61100BUS$ 25,600 - 126,900MOQ: 1 Set
-
Horizontal Heavy Duty Roll Lathe CW61100BUS$ 25,600 - 126,900MOQ: 1 Set
-
Universal Lathe CW6180, CW61100US$ 15,000 - 99,500MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Place of Origin
Henan, China
Brand Name
XINSHENG
Model Number
CW61100B,CW61125B,CW61160B
Certification
ISO9001, ISO 1400
After-sales Service Provided
Engineers available to service machinery overseas
CW61100B/125B/160B parallel lathes are suitable for turning of cast iron and steel workpieces,turning of non-ferrous metal parts of big or medium sizes.It can do external cylindrical surface turning,inner hole and end face turning,groove broaching,drilling,boring and trepanning.It can also turn various intemal and external metric,inch module and diametrical pitch threads,the top slide can be used independently for turning of short taper.
These lathes are of high power,high rigidity and wide rotating speed range,so it can be used for high speed and strong force turning.
| Main technical specification | |||||
| Capacities | CW61100B | CW61125B | CW61160B | ||
| Swing over bed | mm | 1000 | 1250 | 1640 | |
| Swing over carriage | mm | 615 | 865 | 1250 | |
| Maximum length of workpiece | mm | 500 1500 3000 5000 6000 8000 10000 12000 | |||
| Maximum turning length | mm | 480 1300 2800 4800 5800 7800 9800 11800 | |||
| Width of guideway | mm | 755 | |||
| Spindle | |||||
| Spindle nose code | mm | A2158×M22 | |||
| Diameter of spindle thru hole | mm | 130 | |||
| Taper hole of spindle | 140 | ||||
| Number of forward turning speeds | 21 | ||||
| Number of reverse turning speeds | 12 | ||||
| Spindle speed | Forward | r/min | 3.15315 | ||
| Reverse | r/min | 3.5291 | |||
| Feed motion | |||||
| Number of feeds per revolution longitudinal/transverse | 56/56 | ||||
| Feed per revolution | longitudinal | mm | 0.112(0.004"0.473") | ||
| transverse | mm | 0.056(0.002"0.236") | |||
| upper tool-post | mm | 0.0253(0.001"0.118") | |||
| Number and range of metric thread | 44;1120mm | ||||
| Number and range of inch thread | 31;281/4 | ||||
| Number and range of module thread | 45;0.560mm | ||||
| Number and range of diametrical pitch thread | 38;1/256DP | ||||
| Tool post | |||||
| Distance between spindle center-line and tool resting plane | mm | 48 | |||
| Size of tool shank | mm | 45 | |||
| Tool post swing range | ° | ±90° | |||
| Max.travel of carriage | mm | 450 1450 2950 4950 5950 7950 9950 11950 | |||
| Max.travel of top slide | mm | 300 | |||
| Max.travel of cross slide | mm | 520(20") | 580(22") | 630(24") | |
| Tool post travel per turn of the dials of top or cross slide | mm | 0.05(0.002") | |||
| rapid travel speed | longitudinal | mm/min | 3740 | ||
| transverse | mm/min | 1870 | |||
| top slide | mm/min | 935 | |||
| Tailstock | |||||
| Diameter of Tailstock quill | mm | 160(6") | |||
| Travel of tailstock quill | mm | 300(12") | |||
| Taper hole of tailstock quill | Morse 6# | ||||
| Lub and operating pump | |||||
| Type | CB-B10 | ||||
| Flux | L/mim | 10 | |||
| Working pressure | kg/cm | 25 | |||
| Speed | r/min | 1450 | |||
| Machine overall dimension | |||||
| Hight | mm | 1700 | 1825 | 2150 | |
| Width | mm | 2150 | |||
| Max.weight of workpiece | |||||
| Max.weight of workpiece | kg | 5000 | |||
