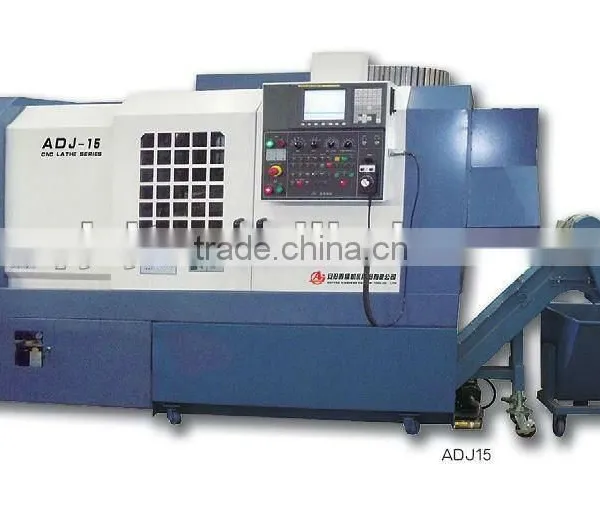

Help CenterCNC Slant Bed High Speed Precision Lathe Economical ADJ15
Related Products
-
CNC Slant Bed High Speed Precision Lathe Economical ADJ25US$ 20,000 - 50,000MOQ: 1 Set -
Gang Type CNC LatheUS$ 1 - 1MOQ: 35000 Sets
-
Gang Type CNC LatheUS$ 37,800 - 37,800MOQ: 1 Set
-
Slant Bed CNC Lathe,CNC LatheUS$ 35,000 - 50,000MOQ: 1 Set
-
Slant Bed CNC Lathe,AD15US$ 35,000 - 50,000MOQ: 1 Set
There lathes are semi-closed loop CNC machine tools suitable to run various complicated shaft-,sleeve-,and disk-like work-pieces or their complex, such as turning of internal and external cylindrical. Conical and other circumgyration surface as well as various metric, inch , modular , and diametric pitch threads. They can also be used for oil grooves and keyways broaching , end-facing grooving and chamfering , etc. The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions. The machining accuracy is about IT5~IT6, and the surface roughness is about Ra0.8μm for ferrous metals.
Item |
Unit |
ADJ15P |
ADJ15 |
ADJ25 |
Main specifications |
|
|
|
|
Swing over bed |
mm |
400 |
400 |
500 |
Max.turning dia. |
mm |
360 |
300 |
370 |
Max.turning dia.over carriage |
mm |
220 |
230 |
270 |
Max.turning length |
mm |
400 |
500 |
530 |
Distance between centers |
mm |
|
600 |
600 |
Spindle and chuck |
|
|
|
|
Chuck nose |
|
A2-6 |
A2-5 |
A2-6 |
Main spindle motor |
kw |
11/15 |
7.5 |
15 |
Spindle speed |
|
3000r/min |
3000rpm |
2500rpm |
Spindle bore(dia.) |
mm |
53 |
50 |
62 |
Max. bar capacity |
mm |
45 |
35 |
51 |
Feed |
|
|
|
|
X-axis servo motor |
kw |
1.5 |
1.2 |
1.2 |
X-axis servo motor torque |
Nm |
10 |
7 |
7 |
X-axis Max.travel |
mm |
220 |
170 |
210 |
Z-axis servo motor |
kw |
1.5 |
1.4 |
1.4 |
Z-axis servo motor torque |
Km |
10 |
11 |
11 |
Z-axis Max.travel |
mm |
400 |
510 |
550 |
Rapid speed of X-/Z-axis |
m/min |
9/9 |
12/16 |
12/16 |
Connection of X-/Z-axis |
|
direct-coupled |
direct-coupled |
direct-coupled |
Tool | ||||
Type of tool post |
|
Line Cutter |
8 position |
8position |
Whirl direction |
|
Table 550*227mm |
electric |
Electric/hydraumatic |
Tool size |
mm |
25*25 |
25*25 |
25*25 |
Boring tool |
mm |
40 |
40 |
40 |
Tailstock |
|
|
|
|
Diameter of tailstock |
mm |
No tailstock |
80 |
80 |
Tracel of tailstock quill |
mm |
100 |
100 |
|
Max.travel of tailstock |
mm |
380 |
380 |
|
Taper hole of tailstocl quill |
|
Morse 4# |
Morse 5# |
|
Others |
|
|
|
|
Overall dimension |
mm |
2180*1510*1390 |
2510*1460*1700 |
2955*1460*21820 |
Weight |
kg |
2500 |
3500 |
4000 |
