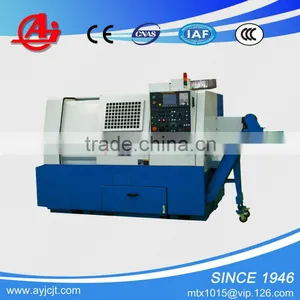

Slant Bed CNC Lathe,CNC Lathe

Name: Slant Bed CNC Lathe,CNC Lathe
Brand: ANYANG XINSHENG
SKU: 133149245
Availability: InStock

US$ 35,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Turning Center

CNC or Not:

CNC

Anyang Xinsheng Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Turning Center

CNC or Not CNC

Automatic Grade Automatic

Place of Origin Henan, China

Brand Name ANYANG XINSHENG

Model Number AD-10

Name

CNC Lathe Series

Model

AD-15

Specification

Company

Xinsheng Machine Tool

Main Specifications

Capacity	Swing over bed	mm	440
	Max.turning dia.	mm	330
	Max.turning dia.over slide	mm	300
	Max.turning length	mm	500
	Distance between centers	mm	500
	Max.bar capacity	mm	52
Travel and feed	X-axis travel	mm	180
	Z-axis travel	mm	510
	Rapid traverse(x-and z-axis)	m/min	20/24
	Cutting feed(x-and z-axis)	mm/min	0-5000
	Hand feed(x-and z-axis)	mm/min	0-1260
Spindle	Spindle speed	rpm	45-4500
	Spindle nose	type	A2-6
	Spindle front end bearing(dia)	mm	100
	Spindle bore(dia)	mm	62
Turret	Number of stations	posit.	8
	Indexing time	sec	0.72
	Tool shank size	mm	25X25
	Boring bar shank dia.	mm	40
Motor	Main spindle motor	kw	11/9
	X-axis servo motor	kw	1.0
	Z-axis servo motor	kw	2.1
	C-axis servo motor	kw	----
	Tool driving motor	kw	----
Tailstock	Max.travel	mm	460
	Quill dia.	mm	80
	Quill travel	mm	130
	Quill taper hole	type	MT-4
Other contents	Coolant capacity	L	200
	Power	kw	25
	Machine weight	kg	4500
	Machine height	mm	1650
	Floor space(LxW)	mm²	2270X1470
