China High Quality Automatic Polyurethane pu Air Filter Gasket Cleaning Making Machine

China High Quality Automatic Polyurethane pu Air Filter Gasket Cleaning Making Machine photo-1

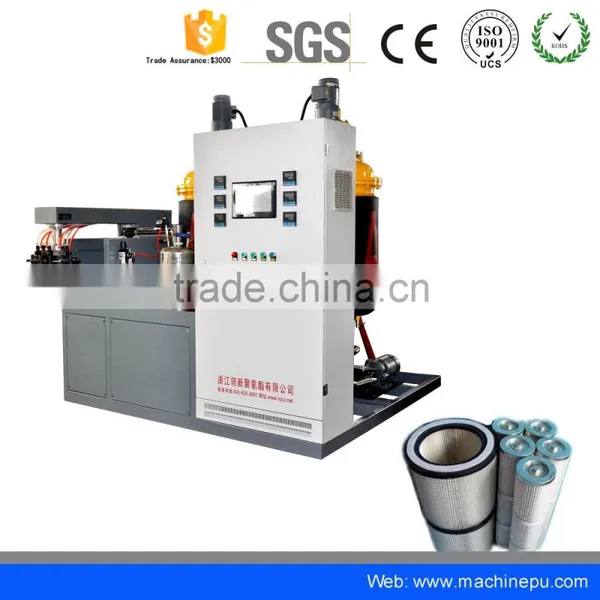

China High Quality Automatic Polyurethane pu Air Filter Gasket Cleaning Making Machine photo-2

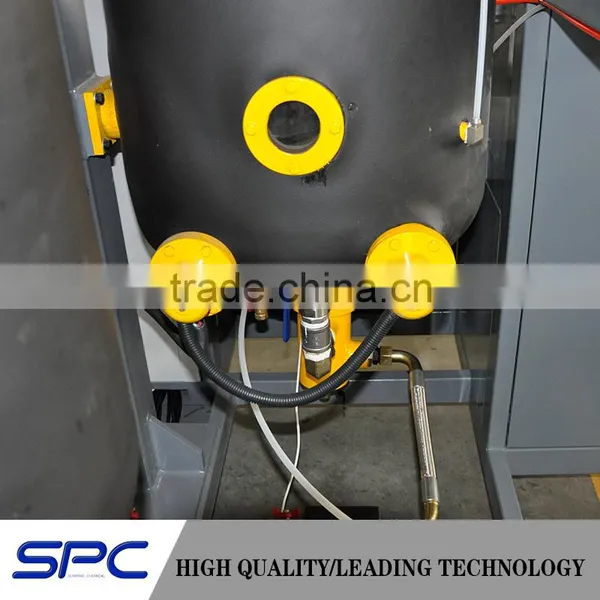

China High Quality Automatic Polyurethane pu Air Filter Gasket Cleaning Making Machine photo-3

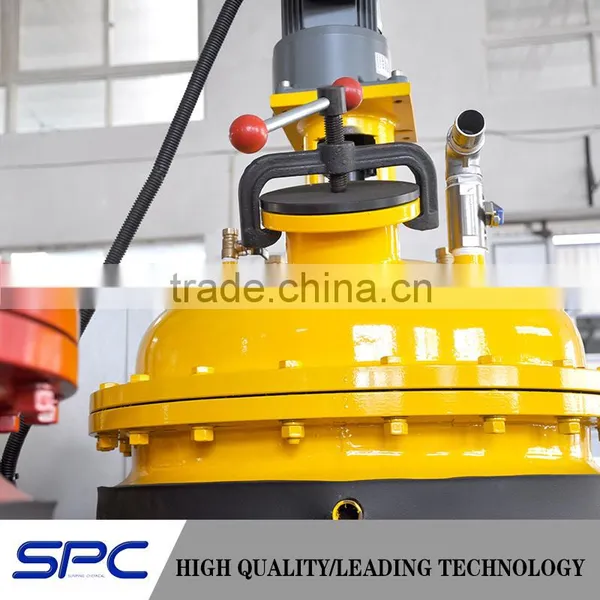

China High Quality Automatic Polyurethane pu Air Filter Gasket Cleaning Making Machine photo-4

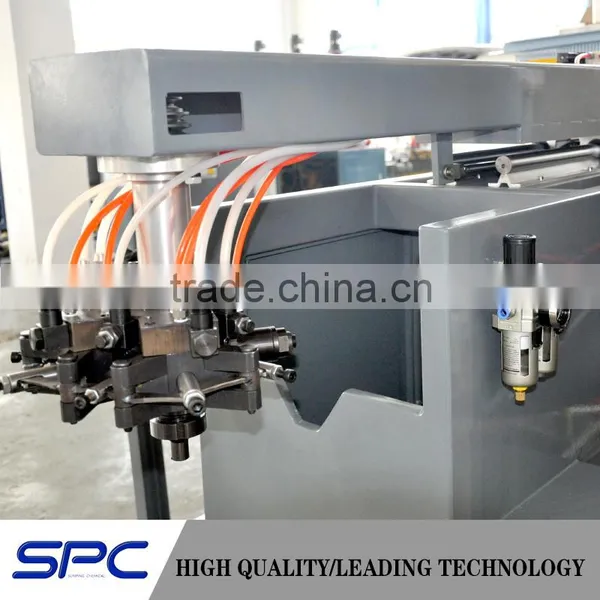

China High Quality Automatic Polyurethane pu Air Filter Gasket Cleaning Making Machine photo-5

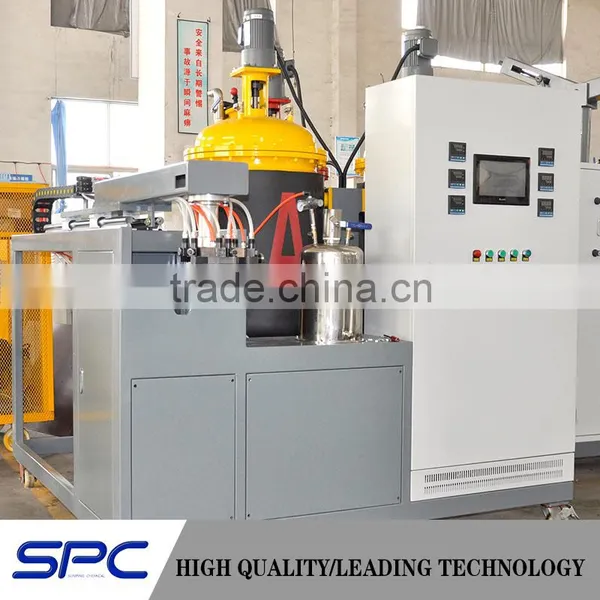

China High Quality Automatic Polyurethane pu Air Filter Gasket Cleaning Making Machine photo-6
US$ 14,500 - 26,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Foam Net
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo for air filter cleaning machine
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Foam Net
Place of Origin Jiangsu, China
Brand Name LISTEN
Model Number SSIPU-M
Voltage 380V
Power(W) About 15KW
Dimension(L*W*H) 1900*1500*2200 (mm)
Weight About 1200Kg
Certification CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas



  China high quality automatic polyurethane pu air filter gasket cleaning making machine





Product Description

Air filter is one of the necessary internal combustion machinery such as a /, with the rapid development of automobile industry, with microporous elastomer polyether type low density as air filter, end cover is widely used in automobile industry.The company developed filter gasket pouring machine has simple operation, easy maintenance, high degree of automation, stable performance.

Specifications of sealing strip casting machine:

1. High precision metering pump, metering precision, precision error is not more than plus or minus 0.5%

2. High performance with drip-proof material mixing device, raw materials out accurate synchronization, mixed evenly

3. The automatic control of mixing head note material time, automatic cleaning and air dry

4. PLC, touch screen man-machine interface, servo system control equipment casting, according to the procedures set by the track mobile, accurate location, can be automatically pouring irregular shape of round, square and special products, high efficiency, reliable performance

5. Can be automatic feeding, loading in alarm, additional features such as automatic cycle, mixed TouShui downtime

Technical parameters of sealing strip casting machine:

Model

Flow

Proportion

Maximum working stroke XXY

Lxpu2-lq300-w1

1-8g/s

100:25-40

300*300

Lxpu2-lq500-w2

3-18g/s

100:25-40

500*500



Project
The machine model PU20-1 PU20-2 PU20-3
Always spit out quantity 4 to 12 g/s 8-30 grams/SEC. 17-60 grams/SEC.
The largest processing size Length x width 400×300mm 500×400mm
Round biggest increase
The diameter of
350mm 500mm 500mm
The total power 10KW
The power supply 380V
The compressed air ≥0.6MPa
The machine weighs 550kg
The nose mixed speed 6000 r/min
Mixed way Dynamic hybrid
Container volume 40L-150L
Hybrid range B:A=25-50:100
Measuring accuracy ±0.5%

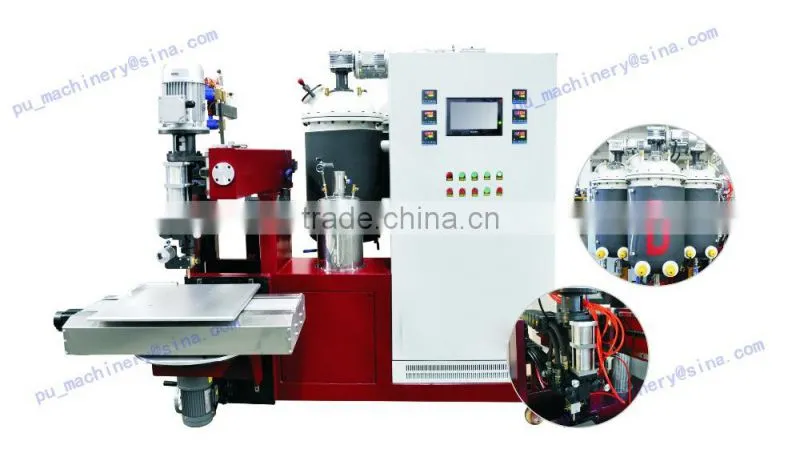

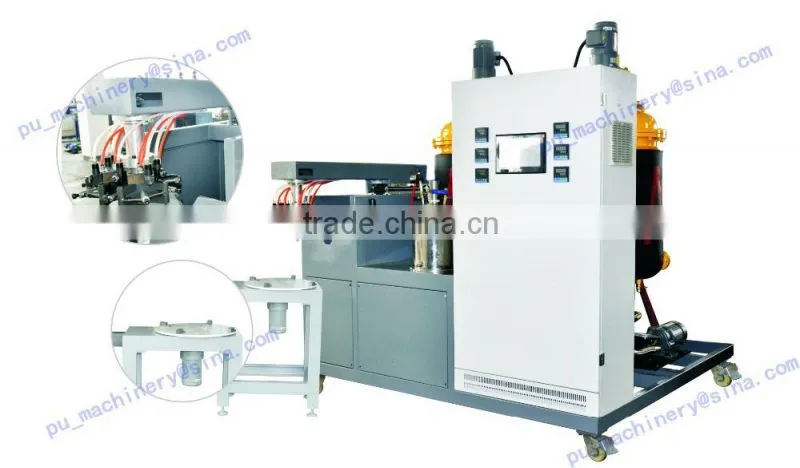

Photos of pu machine:

China high quality automatic polyurethane pu air filter gasket cleaning making machine
China high quality automatic polyurethane pu air filter gasket cleaning making machine

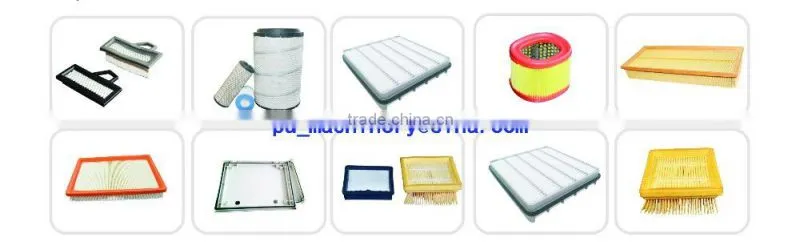

Applications

Fully automatic filter gasket foaming machine is widely employed in the production of automobile and industrial filters, home use filters, etc. The machine owns many advantages, such as high repeat injection precision, even mixing, stable performance, easy operation, high production efficiency, etc.   China high quality automatic polyurethane pu air filter gasket cleaning making machine

Packaging and shipping

China high quality automatic polyurethane pu air filter gasket cleaning making machine
Exhibition Photos
China high quality automatic polyurethane pu air filter gasket cleaning making machine
our services
China high quality automatic polyurethane pu air filter gasket cleaning making machine
our team
China high quality automatic polyurethane pu air filter gasket cleaning making machine
contact us
China high quality automatic polyurethane pu air filter gasket cleaning making machine
