China high pressure polyurethane foam making machine for mattress
- 5000 Set / Sets per Month
- Ningbo for foam making machine
- T/T
- Lightweight thermal insulation house prefabricated wall panel price
- Mgo Sound insulation and heat preservation concrete hollow lightweight partition wall panels
- lightweight partition wall panel
- building material Mgo precast wall panels
- Mgo lightweight concrete foam wall panels Quality Choice
- Supply perforated/acoustic/sound-absorb wall panel mgo board/fireproof mgo board/magnesium oxide board
Product Details
Condition: | New | Product Type: | Foam Net | Place of Origin: | Jiangsu, China |
Brand Name: | SSI | Model Number: | SSIPU-H | Voltage: | 380V |
Power(W): | About 168KW | Dimension(L*W*H): | 4100(L)*1250(W)*2300(H)mm | Weight: | About 1200Kg |
Certification: | CE | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China high pressure polyurethane foam making machine
◊ Polyurethane foam is widely used in our daily life. To make pu foam, we need pu casting machine.
◊SSIPU-H series high pressure foaming machine is widely applied in the production of imitation wood furniture, high resilience PU foam, slow rebound foam, household appliances (refrigerator, freezer, water heater), thermal insulated building materials, automobile interiors and so on.
MAIN TECHNICAL PARAMETERS:
No. | Item | Technical Parameter |
1 | Foam Application | Flexible Foam |
2 | Raw Material Viscosity (22℃) | POLY ~2500MPas ISO ~1000MPas |
3 | Injection Pressure | 10-20Mpa (adjustable) |
4 | Output (mixing ratio 1:1) | 90~450kg/min |
5 | Mixing Ratio Range | 1:5~5:1(adjustable) |
6 | Injection Time | 0.5~99.99S (correct to 0.01S) |
7 | Material Temp Control | ±2℃ |
8 | Repeat Injection Accuracy | ±1% |
9 | Hydraulic System | Output: 10L/min |
10 | Tank Volume | 500L |
11 | Compressed Air Needed | Q: 600NL/min |
12 | Temperature Control System | Heat: 2×9Kw |
13 | Input Power | three-phase five-wire 380V |
STRENGTHS:
Mixing head
1. Using new type mixing means, mixing evenly, no bubble.
Metering unit
1. High precision metering pumps; Promise or frequency control system;
2. Speed ratio more convenient. Precision error ≤±1%
3. Using hot oil circulation termostat agency. Material temperature more accurate, Temperature error<±2ºC
Special device
1. Designed non-return device for elastomer perfusion
2. LXCPU series polyurethane elastomer casting machine, with vacuum degasser
Electrical control system
1. Fully controlled by SCM (Single Chip Microcomputer)
2. Using PCL touch screen computer. Temperature, pressure, revolving speed display system.
3. Alarm function with acoustic warning

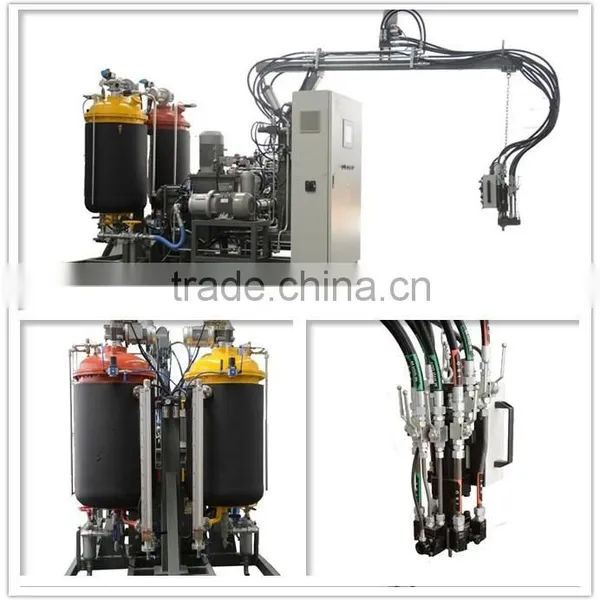

PHOTOS:
Different hardness range selection, different applications.
Household supplies ------ vacuum cup, water heater, disinfecting cabinet, sporting goods, toys
Mining, metallurgical------ sieve plate, shaking table, roller shutter
Mechanical Industry------- rubber roller, tape, seals and others, precision instruments
Automobile Industry--------auto parts, tires, seals, air filter gasket, automotive interior
Light Industry----------------PU shoe sole, memory pillow, mattress, photo frame
Insulation Industry ---------PU sandwich panel, refrigerator, pipe insulation, lab equipment
Machines will be packed in sea worthy plywood box, shiped by sea or by train.
1. We are the biggest pu machine manufacturer in China!
2. We provide most professional technology for you!
3. High quality with very competitive price
4. Best technology guidance and after service
OUR COMPANY:
♦ We are the biggest polyuretahne foam machine manufacturer in China, also professional pu raw material provider with technical solution supported!
♦ We have a group of most experienced engineering engaged in pu machine R&D. Awarded as"PU Integrated Solution Expert" we have gained great reputation in domestic market.
♦ Passed ISO9002 certification, EU RoHS and CE certificates, we can ensure you a reliable quality management.
♦ Main machines include:
- low pressure pu foaming machine
- high pressure pu foaming machine
- pu elastomer casting machine
- automatic filter gasket casting machine
- pu sandwich panel machine
- refrigerator door and cabinet foaming line
- rotary pu production line
our team:
