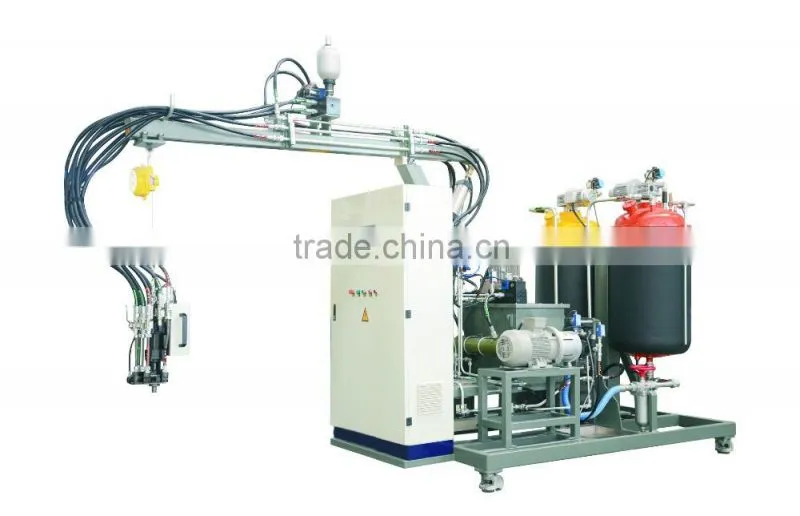

China best High Pressure Polyurethane PU Foaming Machine for Imitation wood
Market users most polyurethane foaming machine, has the economical, convenient operation and maintenance, etc, can be customized according to customer's request various pours out of the machine
Product Features of high pressure pu machine:
- The German original rexroth high precision bent-axial type constant delivery pump(a7vk series), accurate measurement, stable operation;
- Italy imported kracht polyurethane special flow meter; Closed-loop control, high accuracy, stable system, accuracy±0.5%
- South Korea imported high precision self cleaning high-pressure mixing head, high pressure injection and impingement mixing, mixing uniformity is extremely high, no residual material, cleaning and maintenance free. High strength material manufacturing, service life more than 500000 times;
- Major components of hydraulic station adopt imported original parts with Germany-original STAUFF hydraulic pump;
- Feeding pipe adopts american parker high pressure pipe, safe and reliable;
- Adopting plate type cool-heat-exchanger, high heat transfer efficiency, and compact structure, which ensure constant material temperature and products quality;
- Siemens PLC, man-machine interface, full digitalization, modular integrated control all process flow, accurate, safe, intuitive, intelligent, humanization;
Technical Parameter of high pressure pu machine:
high pressure foaming machine output scope
Mixing head
1. Using new type mixing means, mixing evenly, no bubble.
Metering unit
1. High precision metering pumps; Promise or frequency control system;
2. Speed ratio more convenient. Precision error ≤±1%
3. Using hot oil circulation termostat agency. Material temperature more accurate, Temperature error<±2ºC
Special device
1. Designed non-return device for elastomer perfusion
2. LXCPU series polyurethane elastomer casting machine, with vacuum degasser
Electrical control system
1. Fully controlled by SCM (Single Chip Microcomputer)
2. Using PCL touch screen computer. Temperature, pressure, revolving speed display system.
3. Alarm function with acoustic warning

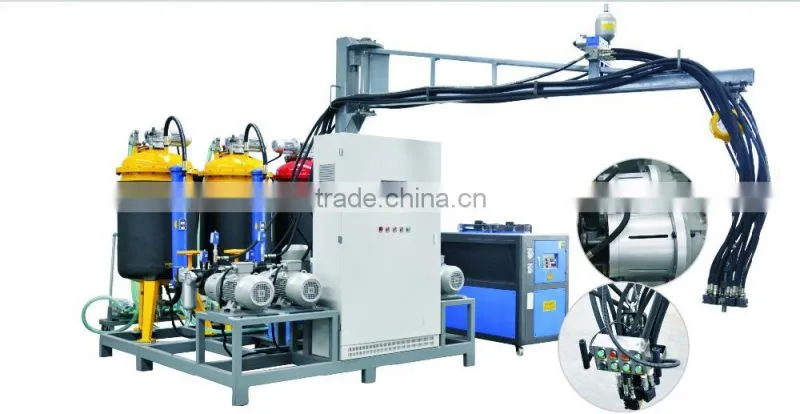

Photos of high pressure pu machine:

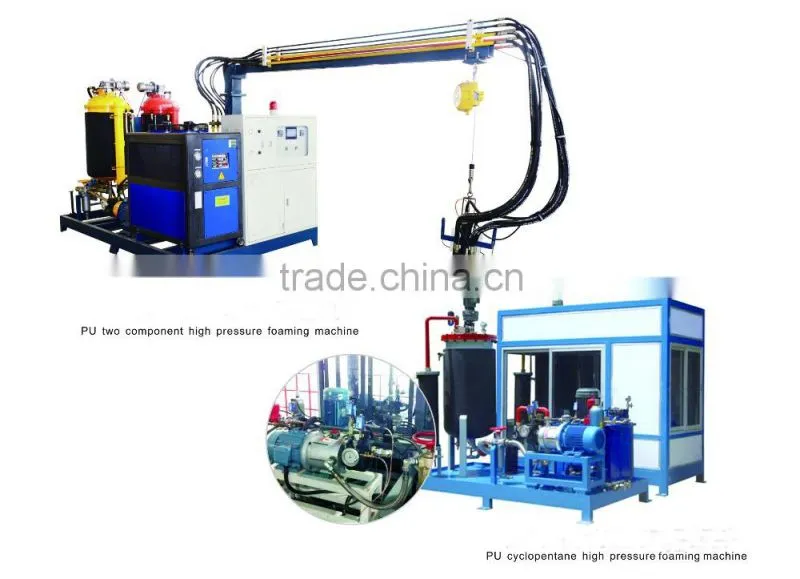

PU three component high pressure foaming machine
Application
Car cushion, pillow, steering wheel, bumper, dashboard, sun visor, motorcycle, bicycle seat cushion, insulation materials, refrigerators, freezers plank, roof insulation board, office chair, armrest, seat cushion, fitness equipment, medical equipment, building materials...
Packaging
Our Company is a PU technology leading enterprise. As one of the few integrated enterprises which are engaged in research and development of PU materials and PU machines, we can provide integrated professional services about product developing and producing to customers, lauded as “ Integrative solutions expert”. The company has passed ISO9001quality system certification, and majority of materials and machines have been proved by RoHS.
