EPS Foam Board Cutting Machine/Styrofoam Cutter
Main Features of eps cutting machine:
1.The main frame of the machine is weld ed from square profile steel, with strong structure, high strength
adn no deformation;
2.the machine has horizontal,vertical and cross cutting devices, and can realize 3-direction cutting , i.e.
horizontal, vertical and cross cutting;
3.The machine daopts converter speed goveming advantageous in stable moving, large
range(0-4m/min)of step-less speed governing, suitable for rwquirements of low-speed cutting and fast
cutter-retract;
4.Voltage adjustment: adopts 10KVA multi-tapped special transformer for adjustment with wide
adjustable range and multiple voltages;
5.C type cutting machine has multi-wire cross cutting system, use motor and converter to motivate
cutting frame upward and downward. Maximum 20wires can be set for cross cutting.
PSC200-800C
Specifications of eps cutting machine
ITEM |
UNIT |
CM/L6000 |
SUITABLE FOR BLOCK SIZE |
[mm] |
6000*1200*1000 |
MIN. CUTTING THICKNESS |
[mm] |
10 |
CUTTING SPEED |
[mm] |
0.5-1 |
Number be manually set in horizontal |
[piece] |
51 |
Number be manually set in Vertical |
[piece] |
3 |
Max Cutting Wires in Cross-cutting |
[piece] |
13 |
HOT WIRE SPECIFICATION |
[mm] |
0.4-0.8 |
CUTTING WIRE CHANGING |
|
MANUAL |
THICKNESS CHANGING |
|
AUTO |
CONNECT LOAD |
[Kw] |
11 |
POWER SUPPLY |
[V/HZ] |
380/50 |
WEIGHT |
[Kg] |
4500 |
CONTOUR SIZE |
MM |
23000*2000*2500 |
|
||
PRODUCT LENGTH |
MM |
2000 |
PRODUCT HEIGHT |
MM |
2500 |
PRODUCT WIDTH |
MM |
1500 |
PRODUCT DIMENSION |
AXES(X, Y, Z) |
3 |
CUTTING SPEED |
M/MIN |
0.5-1 |
POWER |
KW |
7.3 |
VOLTAGE |
V/HZ |
220/50 |
CONTOUR SIZE |
MM |
4370*2400*2500 |
WEIGHT |
KG |
750 |

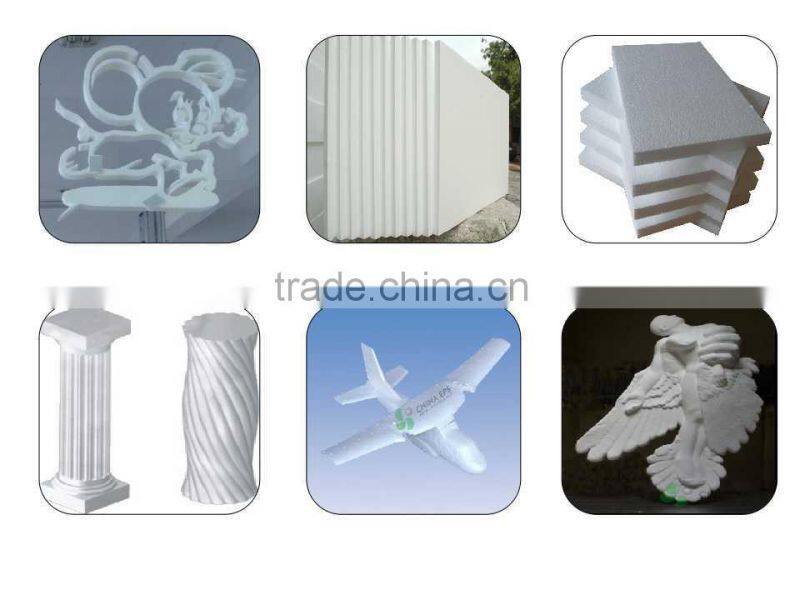

Final eps foam products by eps cutting machine:
Outer package: standard export wooden case;
inner package:plastic paper or wrapped with stretch film,etc for New Automatic CNC Foam Cutting Machine.
our company is a professional INSULATION BUILDING MATERIAL MACHINES' manufacturer in China.
Welcome to contact us for long business cooperation !
Mob: 0086 13656167290
mail:sales (at) chinaeps (dot) net
www:
MORE INFORMATION CAN BE FOUND AT OUR WEB SITE BY SCAN QR CODE . (BELOW)
