Eps Foaming Block Moulding Machinery Equipment With New Technology
US$ 25,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Plastic Sheet
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai for eps machinery equipment
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Qualit EPS Automatic Styrofoam Packaging MachineUS$ 20,000 - 55,000MOQ: 1 Set -
High Qualiyt EPS Expanded Polystyrene Foam Coating MachineUS$ 5,500 - 20,000MOQ: 1 Set
-
Used Eps Foaming Block Moulding Machine /production Lines for SaleUS$ 25,000 - 50,000MOQ: 1 Set
-
Polystyrene EPS Pre-expander Machine For Styrofoam CompactingUS$ 6,000 - 38,000MOQ: 1 Set
-
Low Price Automatic Polystyrene Eps Cool Shaping Moulding MachineUS$ 15,000 - 35,000MOQ: 1 Set
Condition
New
Product Type
Plastic Sheet
Place of Origin
Jiangsu, China
Brand Name
china eps
Model Number
AC/D2000
Voltage
380V/50HZ
Power(W)
8kw
Dimension(L*W*H)
4000*3000*2800mm
Weight
4500KG
Certification
CE, UL
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
eps foaming block moulding machinery equipment with new technology
Product Description
Product Description: EPS Block Machine
1. EPS Air Cooling Block Moulding Machine adopts PLC
2. Touch screen
3. Automatic mould opening
4. Mould closing
EPS Air Cooling Block Moulding Machine
Specifications: Eps Block Machine
1. The machine adopts PLC and touch screen for automatic mould opening, mould closing, material feeding, steaming, temperature keeping, air cooling, de-moulding and ejecting;
2. The machine sets up high-pressure blower for suction the material; Adopts penetration of theory forming and the cycle of comvection cooling, low moisture content.
2. Touch screen
3. Automatic mould opening
4. Mould closing
EPS Air Cooling Block Moulding Machine
Specifications: Eps Block Machine
1. The machine adopts PLC and touch screen for automatic mould opening, mould closing, material feeding, steaming, temperature keeping, air cooling, de-moulding and ejecting;
2. The machine sets up high-pressure blower for suction the material; Adopts penetration of theory forming and the cycle of comvection cooling, low moisture content.
Main technical Parameters: eps block moulding machine
| Specification | Unit | AC/D2000 | AC/D3000 | AC/D4000 | AC/D6000 | AC/D8000 |
| Mould chamber internal size | mm | 2000*1200*600 | 3000*1200*600 | 4000*1200*600 | 6000*1200*600 | 8000*1200*600 |
| Product density | Kg/m 3 | 6-40 | 6-40 | 6-40 | 6-40 | 6-40 |
| Product efficiency | Piece/h | 3-20 | 3-20 | 3-20 | 3-20 | 3-20 |
| Compressed air pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Steam pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Power supply voltage | V/Hz | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Power | kw | 8 | 8 | 10 | 13 | 18 |
| Contour size | mm | 4000*3000*2800 | 5000*3000*2800 | 6000*3000*2800 | 8000*3000*2800 | 10000*3000*2800 |
| Installed weight | kg | 4500 | 5500 | 6500 | 9500 | 10500 |

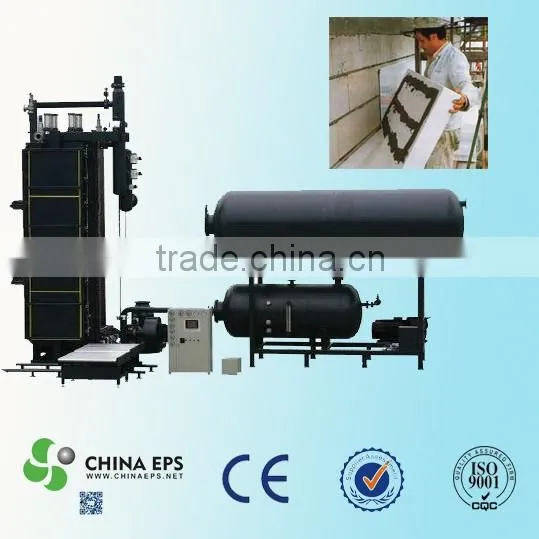

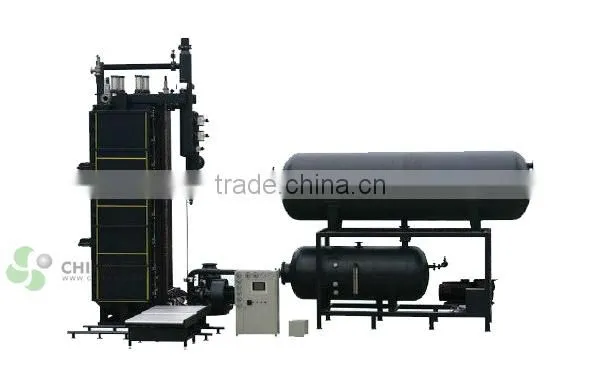

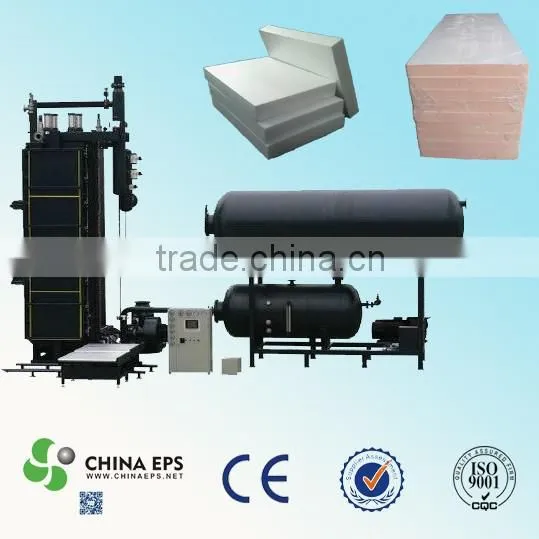

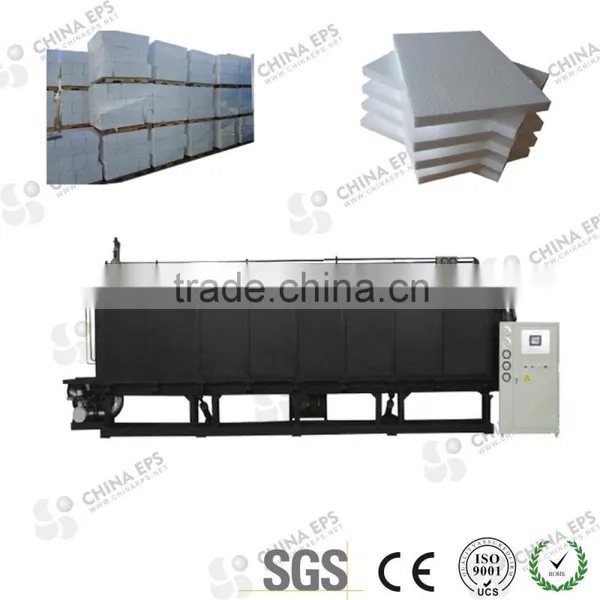

Pictures of eps block moulding machine

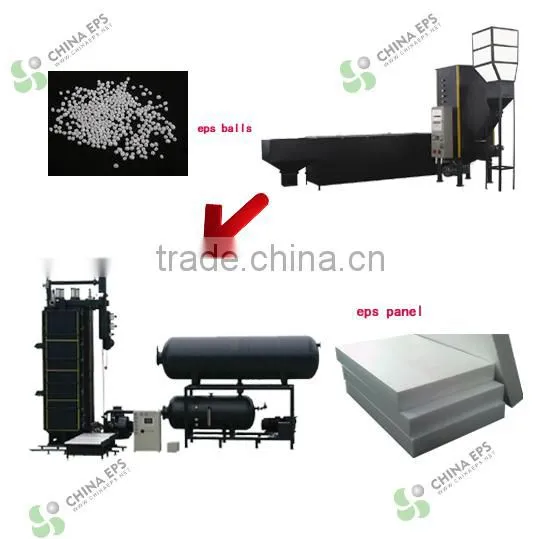

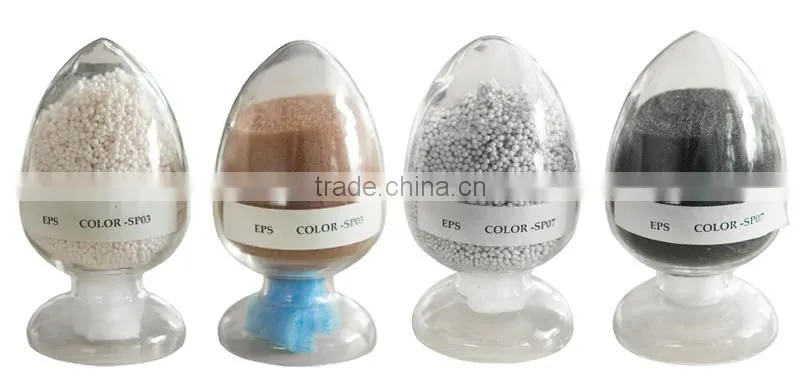

Raw materials: eps block moulding machine
Applications: eps block moulding machine
Packaging & Shipping
Standard export packing: In wooden case, plastic paper or wrapped with film, etc. (or Customization)
FAQ
1.An axial dislocation episodes
Approach: attack as promised condition, loosen the adjustment bolt is mortal, after adjustment tighten.
2.Suction infarction
Approach: In this situation, only the suction mouth open and make cleaning tasks, so you can clean the
suction mouth stick.
3.Sealing convergence at the pad form deformation, and then hit on the hydraulic
Approach: just change these issues a new gasket can be.
