sbs waterproof building materials membrane for insulation
The equipment mainly includes five parts:
1. Coiled material production line
2. Bitumen modification preparation system
3. Thermal oil heating system
4. Cooling water recycling system
5. Lampblack management system
Product specification:
The system can produce SBS, APP modified asphalt waterproofing
membrane with the following specifications:
Base mat: polyester mat, fiberglass mat
Face: sand, PE or Aluminum
Modified Bitumen Waterproofing Membrane Machinery Technical Parameters:
| Technical parameters | ||||||
| Capacity |
Annually output 2 million of various types of modified bitumen waterproofing membrane, one shift per day,8 hours per shift, 250 days per year ,calculated on basis of 3mm of products. |
|||||
| Reinforcement(Base material) |
Polyester felt:160-300g/M²,Fiberglass felt:150-250 g/M², Composite reinforcement(5×5-8×8) |
|||||
| Modified material | SBS, APP | |||||
| Facing material | sand, schist, PE/Aluminium film | |||||
| Thickness | 3-5 mm | |||||
| Linear velocity | 5-25m/min (adjustable) | |||||
| Diesel consumption |
61Kg/h, Thermal efficiency≥73%, oil burning boiler which is of 500000 Kcal to heat conduction oil. |
|||||
| Compressed air | 0.7Mpa,0.6 M3/min | |||||
| The power of air compressor motor | 5.5KW | |||||
| Total installed capacity | 200Kw | |||||
| Water consumption | 0.5T/Day | |||||
| 100 M3 bitumen storage tank | 1 set | |||||
| 1.5 M3 discharging oil pool | 1set | |||||

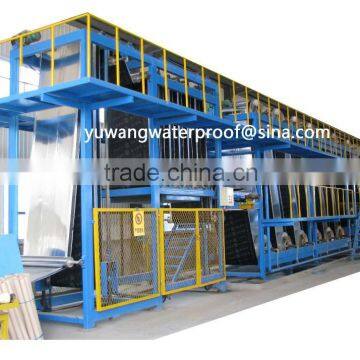

Photos of modified bitumen membrane production line:
Applications of modified bitumen membrane production line:
Our advantage and service:
1. Take our valued client as priority, make sure equipment quality and answer clients’ questions anytime and anywhere.
2. Customizing machines according to clients' needs, such as different design, different brand parts, different colors, more function and etc
3. Engineers go to clients' factory to install machines in time.
4. More spare parts given to clients for free to ensure the factory working without suddenly stop.
Why Choose Us?
1.High-efficiency; energy-saving; CE certification;
2. Famous parts and equipment;
3. We not only sell EPS machines, but also provide more technology and project to customers;
4. Reply you within 24 hours.
5. Our full packge service
Every part is carefully packed to avoid damaging during transportation.
Q1: Do you use a specific provider for raw materials?
Yes,we can offer raw materials for you,however, our customers can buy EPS ram materials in their market.
Q2: How long is the working life of your EPS machine?
The working life is over 15 years and the warranty is 1 year.
Q3: What is your technological service?
We will send our engineers to our customer's factory to adjust EPS machines until our
customer can operate them.
Q4:Have you some videos where we can see the line producing?
Yes, we can provide some videos making our customers pleased.
we are a comprehensive enterprise integrating the design, manufacture, development, sale and service of production lines and plants producing construction materials. We are specialized in eps machine which are extensively used in construction.
we sincerely hope establishing long and friendly business relationship with clients from all over the world.
