APP/SBS bitumen waterproof membrane machine/modified bitumen membrane production line
The equipment mainly includes five parts:
1. Coiled material production line
2. Bitumen modification preparation system
3. Thermal oil heating system
4. Cooling water recycling system
5. Lampblack management system
Product specification
The system can produce SBS, APP modified asphalt waterproofing
membrane with the following specifications:
Base mat: polyester mat, fiberglass mat
Face: sand, PE or Aluminum
Modified Bitumen Waterproofing Membrane Machinery Technical Parameters:
| Technical parameters | ||||||
| Capacity |
Annually output 2 million of various types of modified bitumen waterproofing membrane, one shift per day,8 hours per shift, 250 days per year ,calculated on basis of 3mm of products. |
|||||
| Reinforcement(Base material) |
Polyester felt:160-300g/M²,Fiberglass felt:150-250 g/M², Composite reinforcement(5×5-8×8) |
|||||
| Modified material | SBS, APP | |||||
| Facing material | sand, schist, PE/Aluminium film | |||||
| Thickness | 3-5 mm | |||||
| Linear velocity | 5-25m/min (adjustable) | |||||
| Diesel consumption |
61Kg/h, Thermal efficiency≥73%, oil burning boiler which is of 500000 Kcal to heat conduction oil. |
|||||
| Compressed air | 0.7Mpa,0.6 M3/min | |||||
| The power of air compressor motor | 5.5KW | |||||
| Total installed capacity | 200Kw | |||||
| Water consumption | 0.5T/Day | |||||
| 100 M3 bitumen storage tank | 1 set | |||||
| 1.5 M3 discharging oil pool | 1set | |||||
Photos of modified bitumen membrane production line:

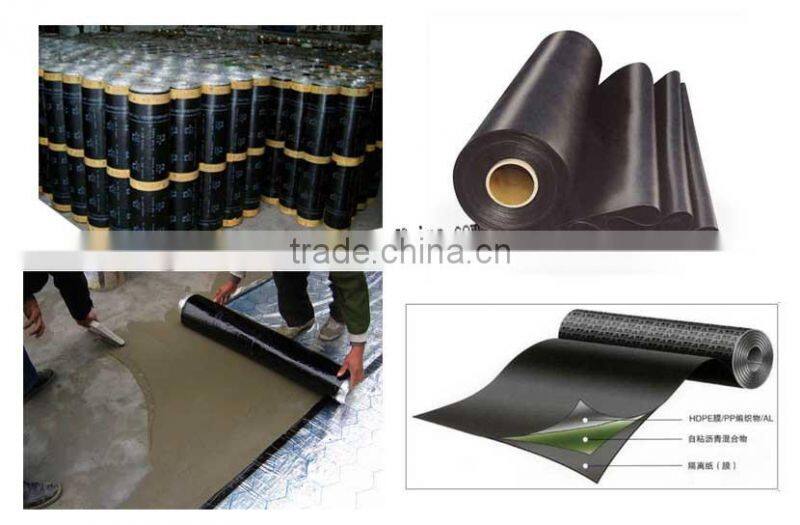

Applications of modified bitumen membrane production line:
Every part is carefully packed to avoid damaging during transportation.
Welcome to contact us for long business cooperation !
