LY-40H Copper Wire Annealer machine
1.Usage: Annealing for copper wire.
3.Technical Parameters of LY-40H Copper wire Annealing Machine :
Product model |
LY- 40TCB |
Take wire motor |
1.5-1.8N.M |
Regulator |
0.75KW |
Annealing length |
4.5m |
heads numbers of entering wire |
40 |
Line speed |
150-300m/min |
Take-up volume |
5-10(20-30)KG |
Completion diameter |
0.1-0.4mm |
Total electric consumption |
60KW |
Supply voltage |
380V/50HZ |
Mechanical dimensions |
23*1.5*2m |
Weight of machine |
4000KG |

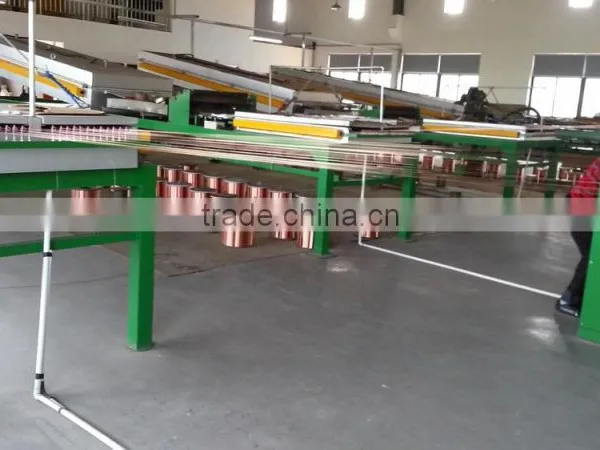

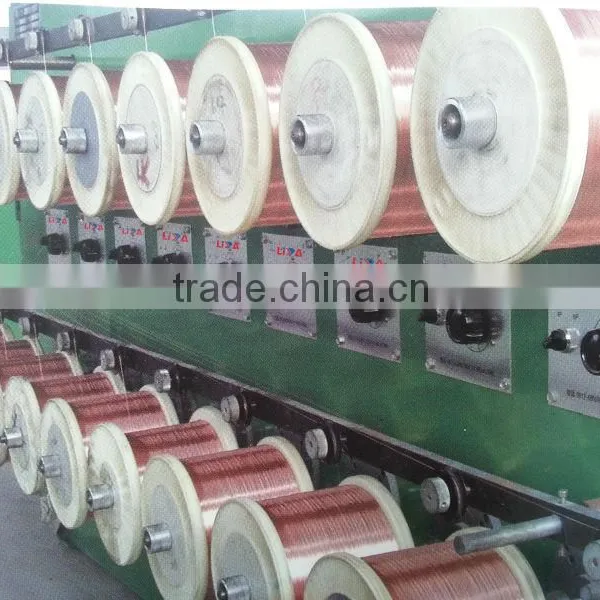

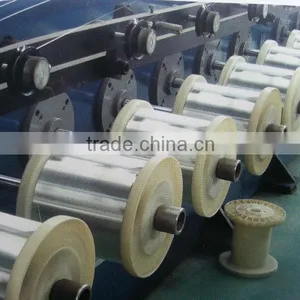

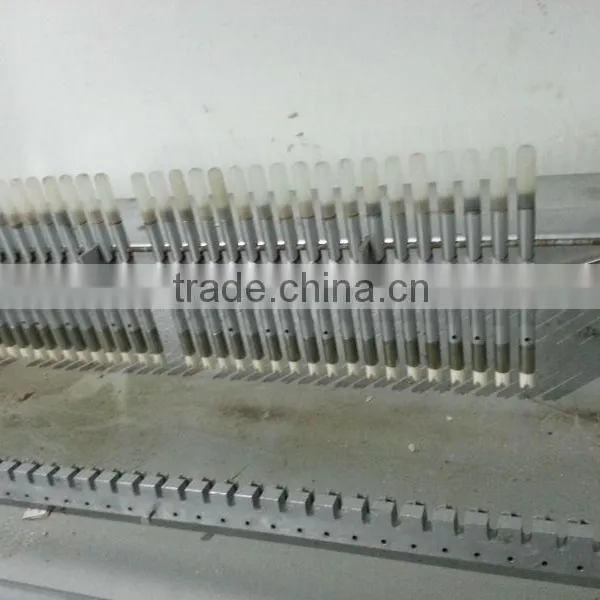

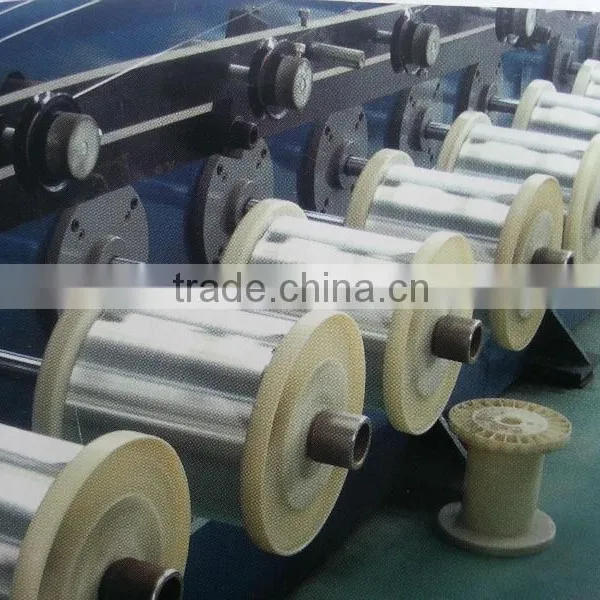

Photo:
After-Sale Service:
1. In order to help customers are able to operate the machine correctly, trainings on operation, maintenance and simple repair can be supplied if necessary.
2. Mechanical parts are provided one-year limited warranty, and electrical parts are six-month since the shipment date.
We shall work with you as a team and to win as a team.
We provide not only quality products but also best service to you.
