Stainless Steel Conduit Annealing Machine
1.Usage: Annealing for stainless steel wire.
2. Main Features of the LY-40TB Stainless Steel Conduit Annealing Machine :
1. High efficiency, little pollution, stable quality and safe.
2. PLC automatically controlled, easy to operate.
3. Load material automatically, the speed can be adjustable, easy to change specification and maintain.
3.Technical Parameters of LY-40TB Stainless Steel Conduit Annealing Machine :
Model |
40TB |
Quantities of Wire |
40 |
Finished Wire Diameter (mm) |
Ø0.25-Ø0.80 |
Tinning Speed(m/min) |
180 |
Send-Out Method |
Hairbrush Wire Placing |
Annealing Method |
Tubular Annealing |
Mode of Tin-Plating |
Single-Furnace Hot Dip (Transverse Plating ) Mould Tin-Scraping |
Length of Annealing Tank (m) |
8 |
Spooler Dimension (mm) |
PT5-PT-25 |
Heater Consumption (KW) |
78 |
Dynamic Power (KW) |
12 |
Total Installed Power (KW) |
90 |
Traversing Control |
Each Head is Controlled by a Motor |
Dimension L×W×H (mm) |
21300*2200*1600 |
Weight (KG) |
4000 |

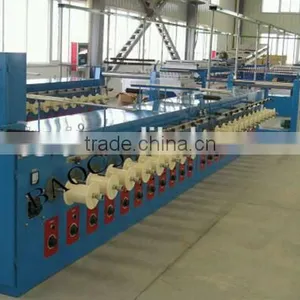

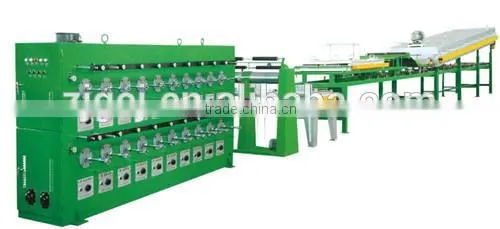

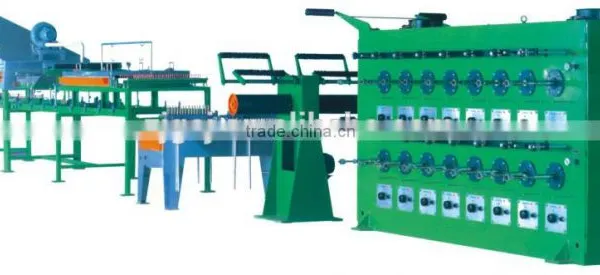

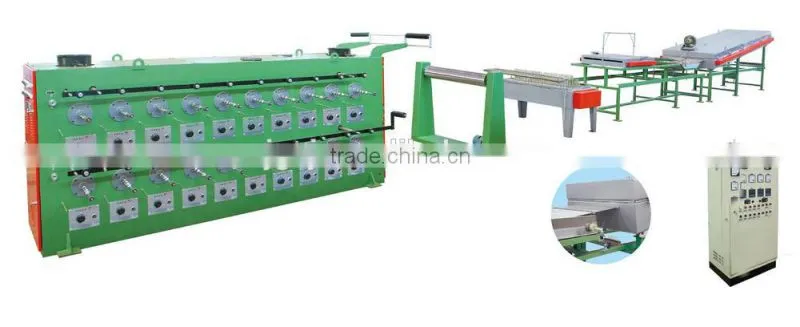

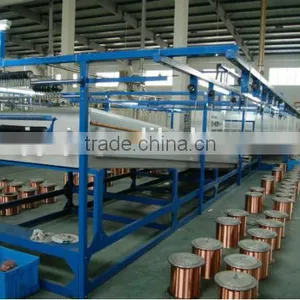

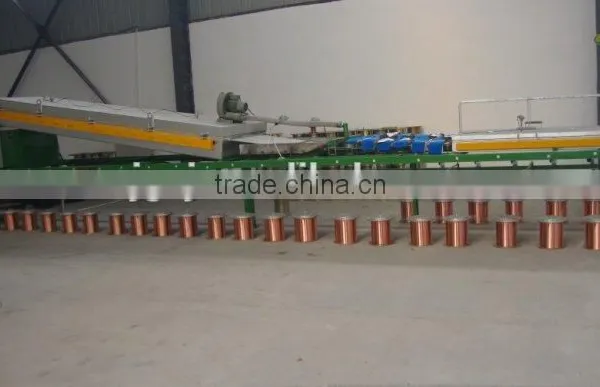

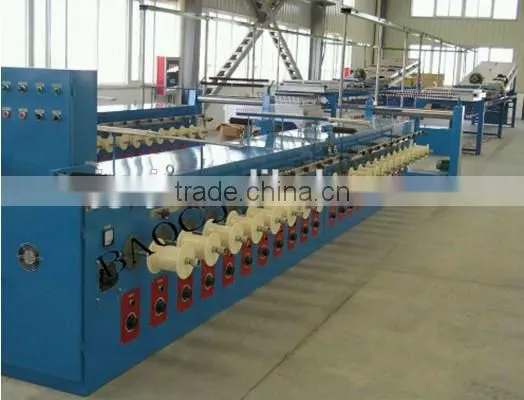

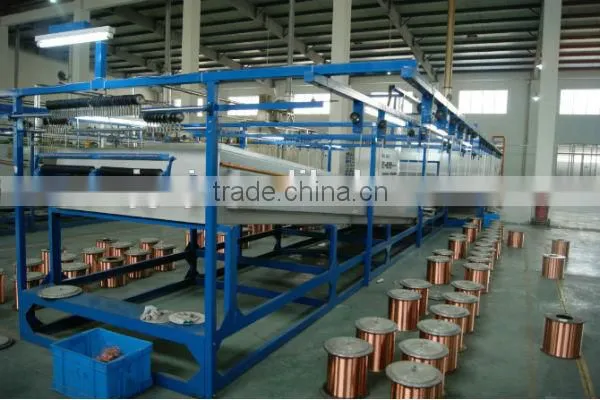

Photo:
After-Sale Service:
1. In order to help customers are able to operate the machine correctly, trainings on operation, maintenance and simple repair can be supplied if necessary.
2. Mechanical parts are provided one-year limited warranty, and electrical parts are six-month since the shipment date.
We shall work with you as a team and to win as a team.
We provide not only quality products but also best service to you.
