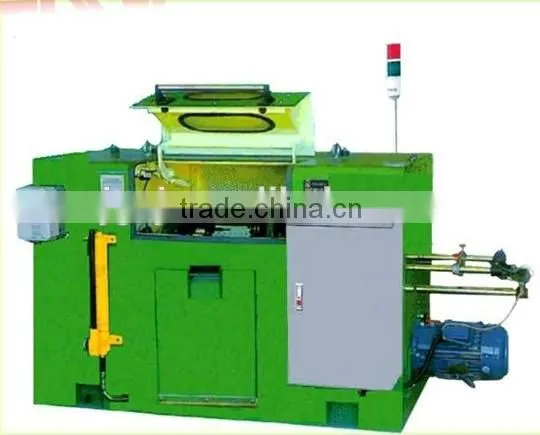

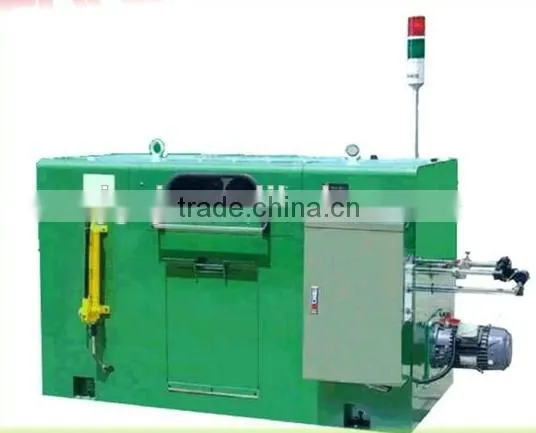

LY-500P Automatic High Speed Wire Twisting Machine/ Spooler Machine
Usage for LY-500P Automatic High Speed Wire Twisting Machine Spooler machine:
LY-500P automatic high speed wire twisting machine is suitable for the stranding of enameled wire and copper wire of HDMI cable, computer traverse cable, head-phone cable, mobile cable, net cable, power cable, PVC wire, etc.
Main Features for LY-500P Automatic High Speed Wire Twisting Machine:
1. It is used for bunching cable, copper or aluminium wire.
2. This machine can adjust speed by frequency change.
3. Working steadily.
4. The twisting machine can automatically brake when the wire is broken.
5. Up and down by hydraulic drive.
LY-500P Automatic High Speed Wire Twisting Machine Technical Parameter:
Power |
5HP Motor 5HP Frequency Converter |
Max.Driving Speed |
2200RPM(4400twist/min) |
Dia,Per Strand |
0.08mm-0.45mm |
Twist Distance |
4.22mm-39.64mm |
Stranding Sec.Area |
0.035mm2-1.25mm2 |
Twist Direction |
S/Z Optional twist direction |
Take-up Bobbin |
500mm |
Tension Control |
Manual adjustment or magnetic clutch automatically control tension |
Traversing Unit |
20Way Winder;bearing traversing;adjustable traversing range and distance |
Brake |
Automatically Internal & external brake controlled by electromagnetic brake |
Upper And Down Axis Platform |
Hydraulic elevator |
Twist Distance Exchange |
Manually Exchange gear |
Spindle Height |
750mm |
Noise level |
<=75Decibel |
Dimension |
2470LX1310WX1470H |
Net Weight |
1700KG |
Coating Color |
Apple green |
|
After-Sale Service for Automatic High Speed Wire Twisting Machine:
1: In order to help customers are able to operate the machine correctly, trainings on operation, maintenance and simple repair can be supplied if necessary.
2: Mechanical parts are provided one-year limited warranty, and electrical parts are six-month since the shipment date.
We shall work with you as a team and to win as a team.
We provide not only quality products but also best service to you.
