GBDR700 Micro-computer Controlled Plastic Garbage Roll Bag/Plastic T-shirt Roll Bag Making Machine

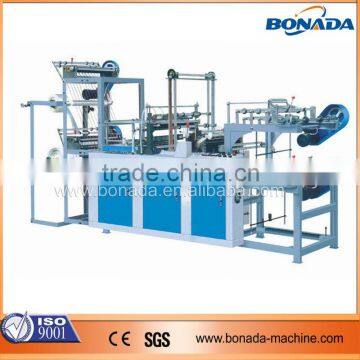

GBDR700 Micro-computer Controlled Plastic Garbage Roll Bag/Plastic T-shirt Roll Bag Making Machine photo-1
US$ 5,500 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Bag Forming Machine
Bag Type:
Shopping Bag
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Machine Type Bag Forming Machine
Bag Type Shopping Bag
Material Plastic
Computerized Yes
Place of Origin Zhejiang, China
Brand Name BONADA
Model Number GBDR500 GBDR600 GBDR700 GBDR800
Voltage 220V Single Phase or according to customer's requirement
Power(W) 1.1kw
Dimension(L*W*H) 3600X1300X1700mm
Weight 1000KGS
Certification CE Centificate
Warranty One year guarantee
After-sales Service Provided Engineers available to service machinery overseas

Specifications

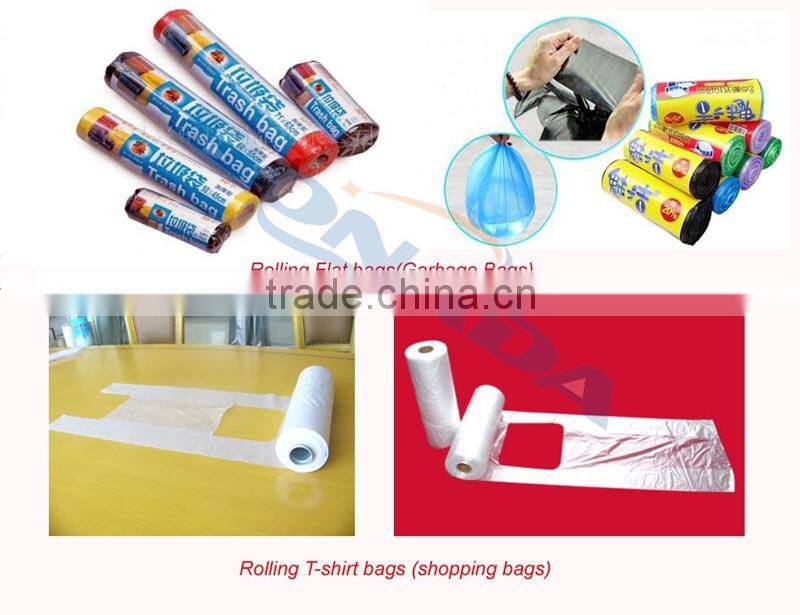

T-shirt bag /garbage bag on roll making machine
advanced photocell tracking system
Japanese servo motor for option

GBDR700 Micro-computer Controlled Plastic Garbage Roll Bag/Plastic T-shirt Roll Bag Making Machine



1 Features:

1. This bottom sealing is suitable for making natural colorprinted plastic bags.

Meanwhile, if the film without color code, the machine can be operated with double production lines.

2. The machine has automatic photoelectric control feeding system,automatic temperature control system

electric static eliminating system,automatic counting system, and alarm system etc. It is an ideal bag maker for

producing freshresisting bag and rubbish bag with the merits of easy operation, steady function and good

sealing etc.

3. The machine had more functions.After removed the dot blade instead of flat blade, substituted the

unwinding platen for the unwinding device, the machine can produce the vest bag and flat-rolling bag etc.



2 Main technical parameters:

Model

GBDR-500

GBDR-600

GBDR-800

Sealing & cutting width

50-400mm

50-500mm

50-700mm

Sealing & cutting length

100-1200mm

100-1200mm

100-1200mm

Sealing & cutting thickness

0.02-0.15mm

0.02-0.15mm

0.02-0.15mm

Bag-making speed

printed bag 10-120pcs/min

plain bag 20-200pcs/min

printed bag 10-120pcs/min

plain bag 20-200pcs/min

printed bag 10-120pcs/min

plain bag 20-200pcs/min

Power of motor(kw)

1.1

1.1

1.5

Electric Heating power(kw)

1.2

1.6

2.2

Weight(kg)

800

900

1100

Overall dimensions(L*W*H)

3600X1200X1700

3600X1300X1700

3600X1500X1700

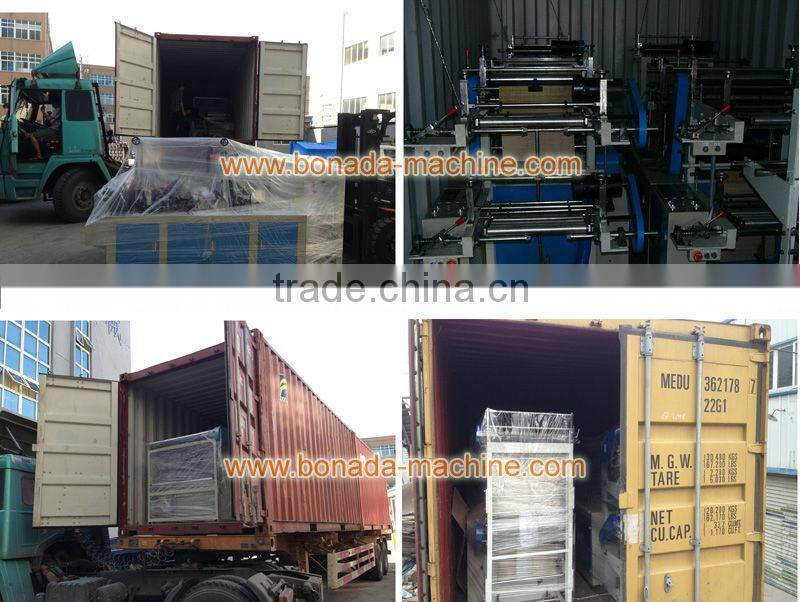

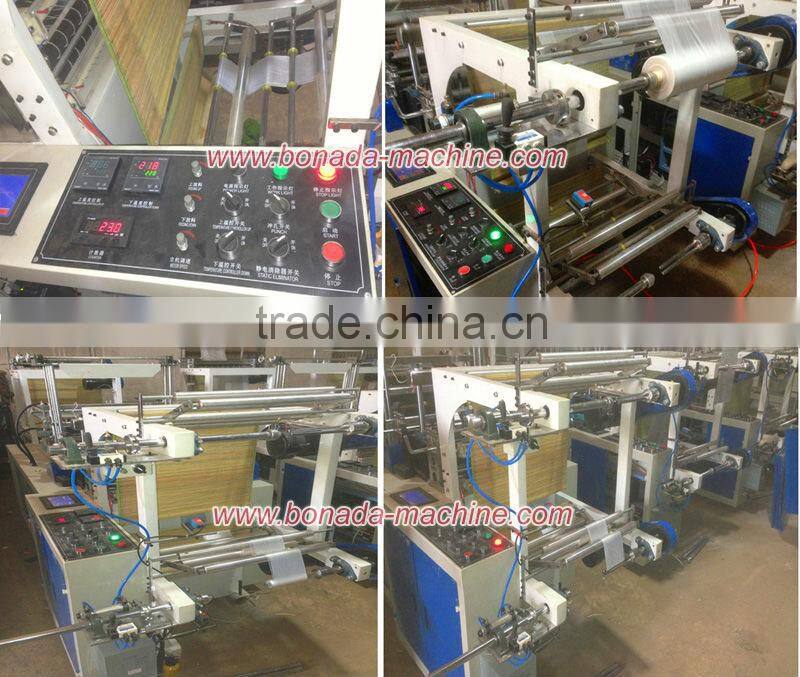

3 Photo of Machine:

GBDR700 Micro-computer Controlled Plastic Garbage Roll Bag/Plastic T-shirt Roll Bag Making MachineGBDR700 Micro-computer Controlled Plastic Garbage Roll Bag/Plastic T-shirt Roll Bag Making Machine

GBDR700 Micro-computer Controlled Plastic Garbage Roll Bag/Plastic T-shirt Roll Bag Making MachineGBDR700 Micro-computer Controlled Plastic Garbage Roll Bag/Plastic T-shirt Roll Bag Making Machine
