Specifications
2 stepping motor or 2 servo motordouble unwinding stations
automatic punch or man operate punch
equipped with conveyor

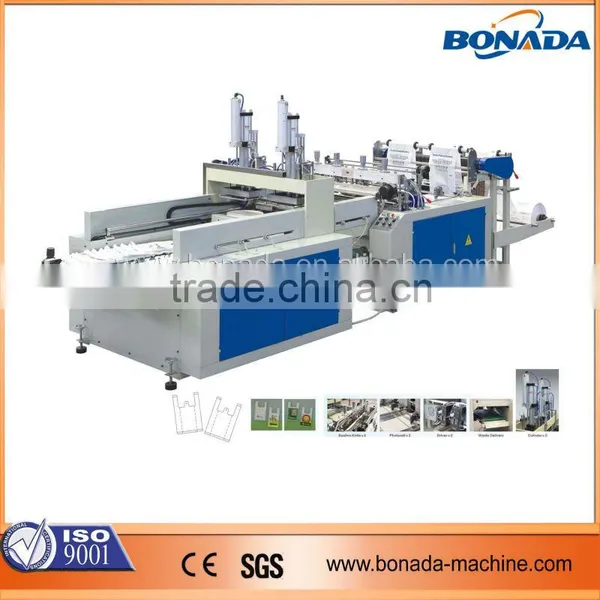

DFR-400*2/450*2/500*2 double lines Shopping T-shirt Bag Making Machine with inline punching machine
1,Features:
This machine is applied to make the printed and uncolored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double step motor fixed length and the liquid crystal screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automatic and good economic result. It’s traced by 2 photocells to make the printing very exactly.
The machine is strong and nice wit frequency inverter control. It will automatically switch to protection mode when machine was overloaded. It can realize automatic discharge and rest after the number set machine will be automatically stop when the material was used up. It can be run again after the operation person finish the material feeding work.
We adopt the advance technology of Japan. This equipment has the characters of novel structure, reliable performance, high efficiency and automation.
2,Technical Parameters:
Model |
DFR-400*2 |
DFR-450*2 |
DFR-500*2 |
Max. width of bag making (mm) |
200-400*2 |
200-450*2 |
200-500*2 |
Max. Length of bag-making(mm) |
350-600*2 |
350-600*2 |
350-600*2 |
Speed of bag-making |
200-250pcs/min |
200-250pcs/min |
200-250pcs/min |
Air pressure |
7.5HP |
7.5HP |
7.5HP |
Main power |
7.5KW |
7.5KW |
7.5KW |
Weight |
1800KGS |
2000KGS |
2200KGS |
Overall dimension(L x W x H)mm |
6000 x 1550 x 1700 |
6000 x 1650 x 1700 |
6000 x 1750 x 1700 |

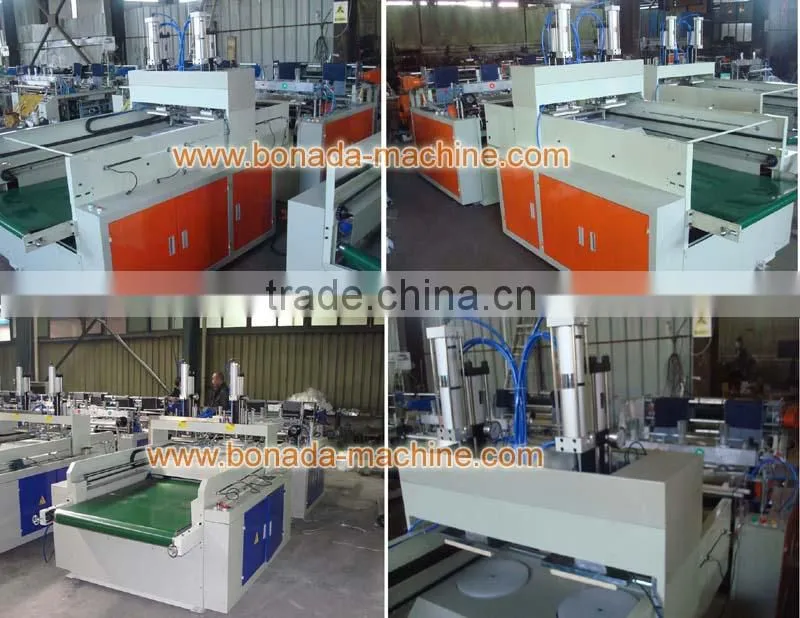

3,Photos
