Specifications
High resolution double die high speed film blowing machine for normal bags in daily lifehigh speed film blowing machine

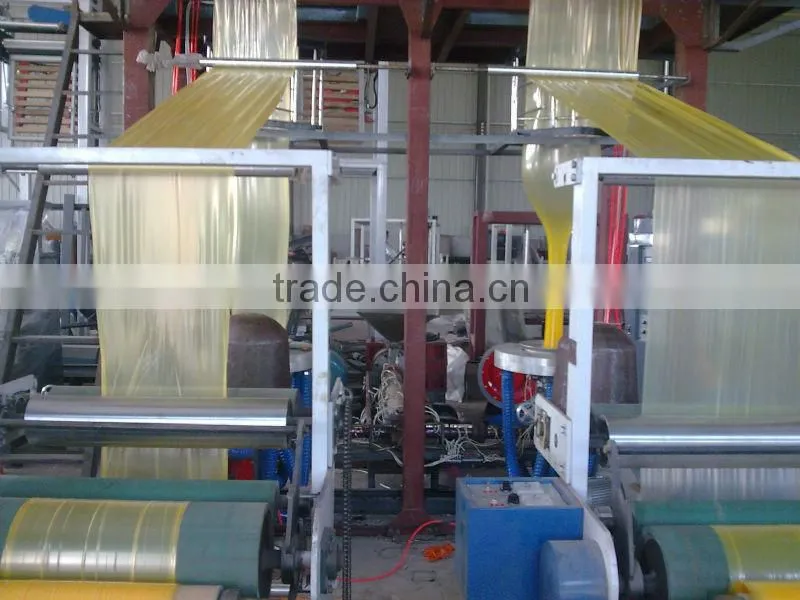

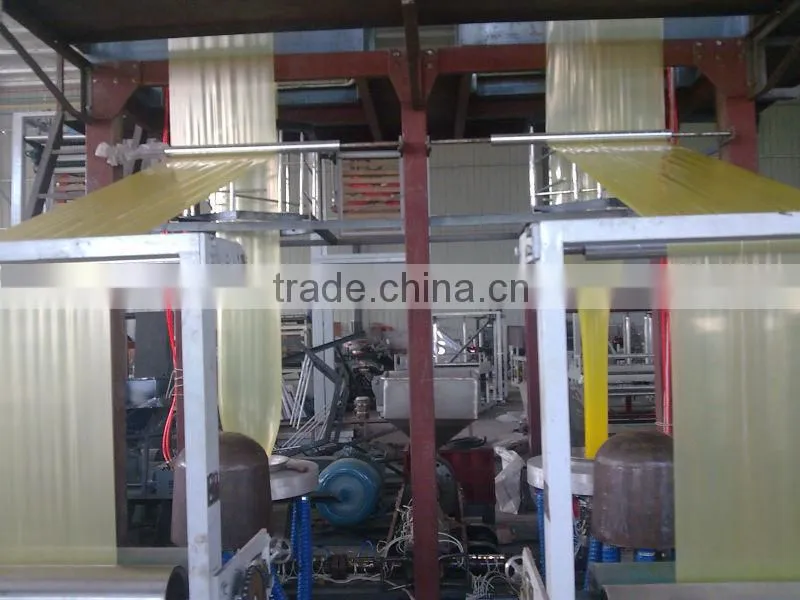

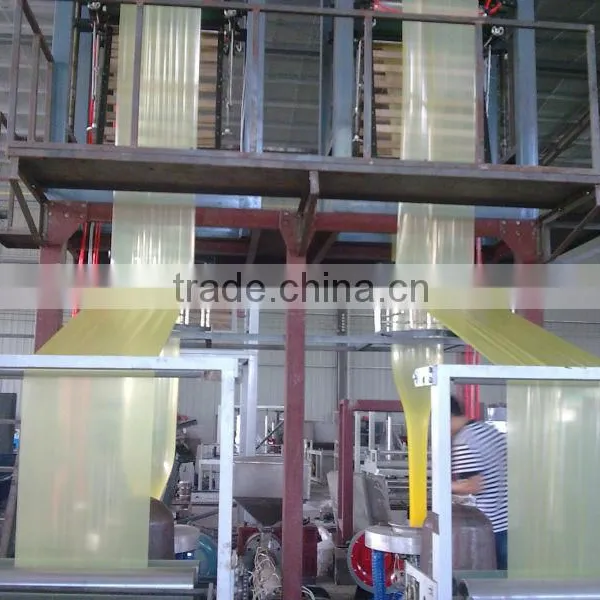

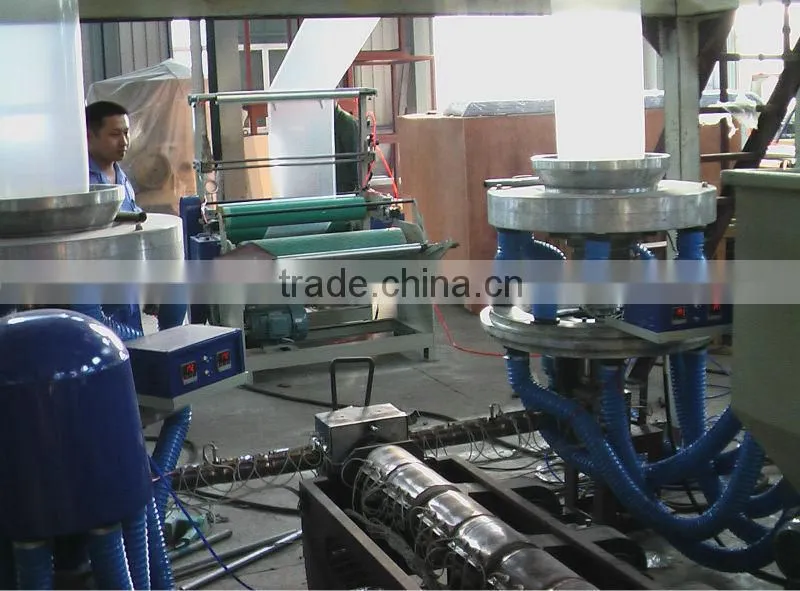

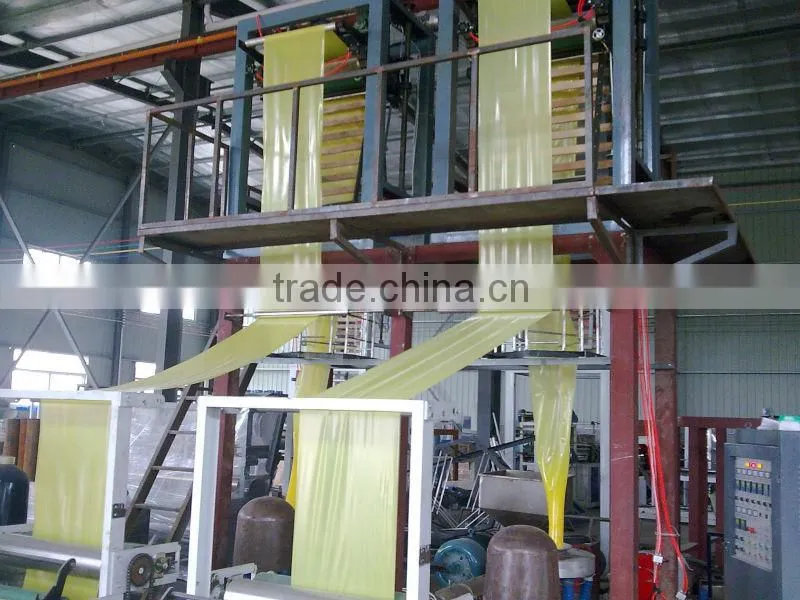

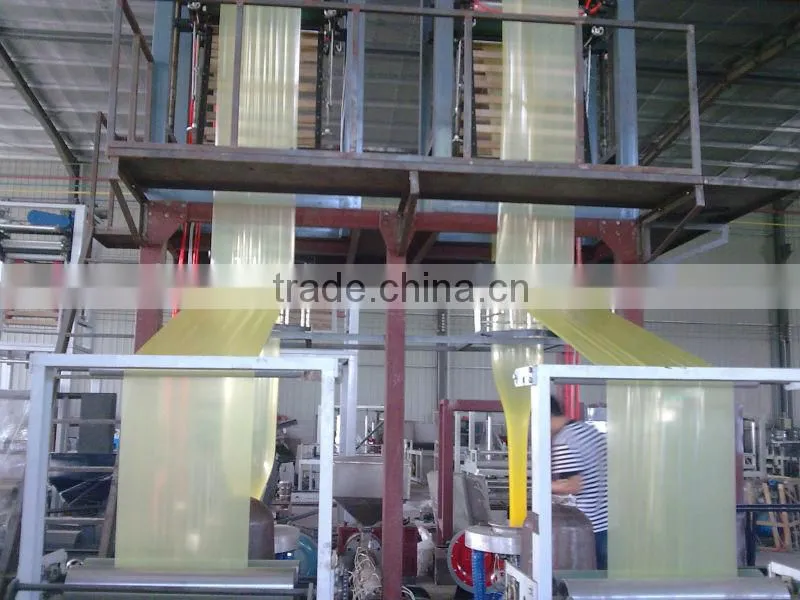

High resolution double die high speed film blowing machine for normal bags in daily life
Characteristics:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity.
Appliable:
It is applied to blowing the plastic films like low density polythene (LDPE), high density polythene(HDPE) and linear low density polythene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Performance:
It adopts the device of two different plastic materials, which can blow different kinds of striped vest bags (shopping bag), it can get colorful bags without pringting , with such features as beautiful colors, average stripe, logical structure, advanced technology, even rewinding and high output.
Technical Parameter
Model |
SJ55-FM600 |
SJ60-FM700 |
SJ65-FM800 |
Diameter of screw |
55mm |
60mm |
65mm |
Screw Ratio(L/D) |
28:1 |
28:1 |
28:1 |
Screw Speed |
10-110r/min |
10-110r/min |
10-110r/min |
Max.output |
40kg/h |
55kg/h |
70kg/h |
Max.Folding Width of Film |
550mmx2 |
650mmx2 |
750mmx2 |
Single-sided Thickness of Film |
0.006-0.10mm |
0.006-0.10mm |
0.006-0.10mm |
Power of Main Motor |
15kw |
18.5kw |
22kw |
Total Power |
26kw |
30kw |
35kw |
Weight of Machine |
2800kg |
3200kg |
3800kg |
Overall Dimensions |
4800x2200x3000mm |
5000x2400x3200mm |
5200x2600x3400 |
