Specifications
2 sides sealing and cutting machineMicro computrer controlling system
Max speed could reach 240pcs/min

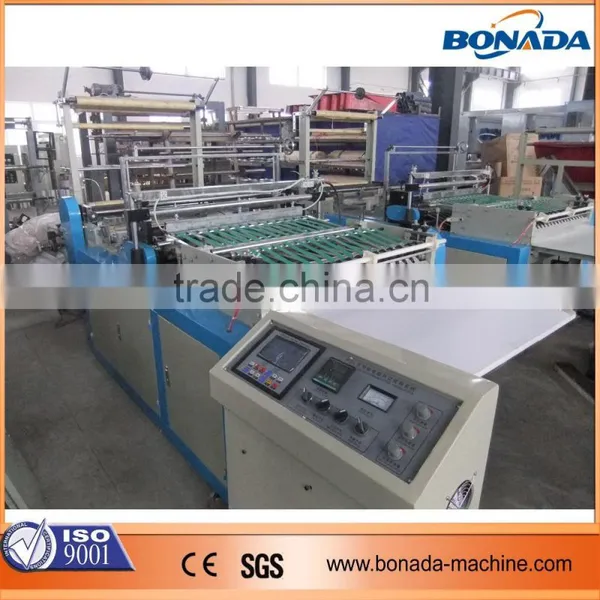

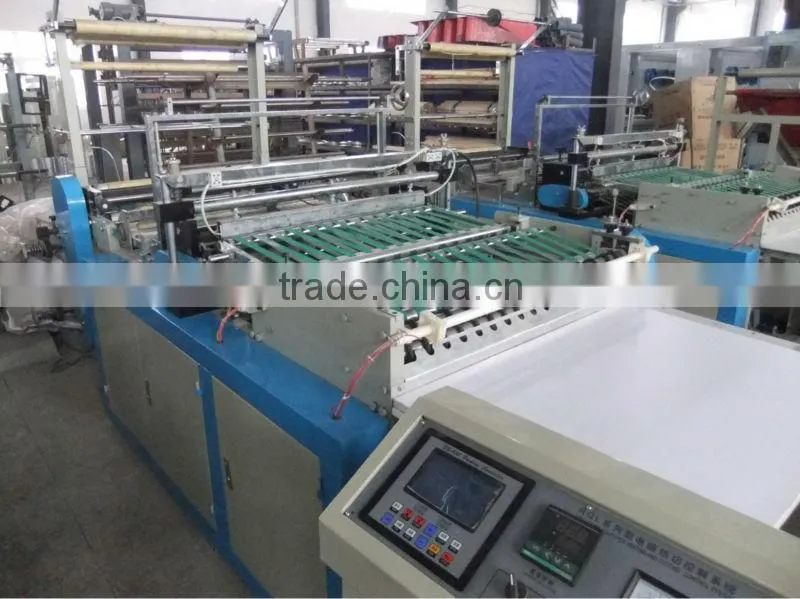

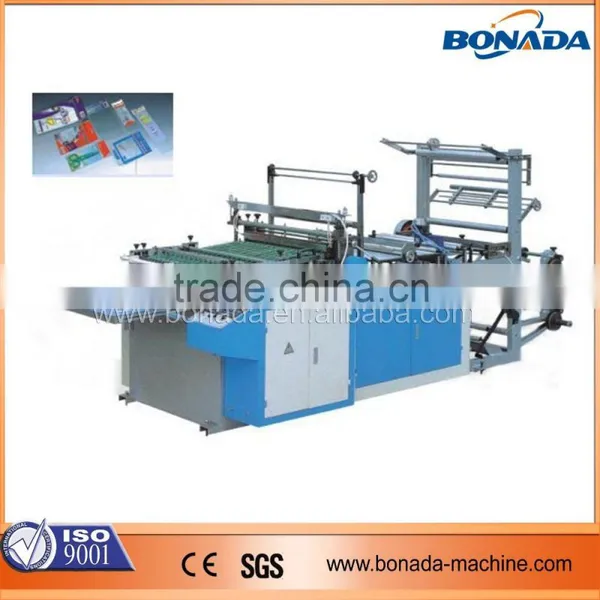

RQL-700/800 Doubles Sides side sealing and cutting machine
Specification:
The side sealing bag making machine suitable for heat sealing and heat cutting such materials as BOPP,OPP thermal contracting films.ect.
Descreptions:
1. The machine is suitable for heating sealing and heating cutting such material as BOPP, OPP, thermal contracting films etc.
2. The whole machine adopts microcomputer control and material pulling by stepping motor.
3. Arbitrary fixed length, accurate and stable step photoelectric tracking, stopping automatically when the lable is lost.
4. Automatic and synchronous two side tape gluing, automatic punching on the bag.
5. Equipped with inline gusset on the bag.
6. Automatic counting and set table counting alarm.
7.Heating sealing decorative border, automatic constant temperature, firm and smooth sealing
8. Machine comes with two types of sealing knife. One is straight knife, another is slotted knife.
9.Equipped with Antistatic bar to make stacked bag smoothly.
Main Technical Variables:
Model |
RQL-700 |
RQL-800 |
Max. Cutting Length |
600mm |
600mm |
Max. Bag-making Width |
700mm |
800mm |
Production Capacity |
40-150pcs/min |
40-150pcs/min |
Total Power |
3.6kw |
3.6kw |
Weight of Machine |
1100kg |
1200kg |
Dimensions(L*W*H)(mm) |
4500*1100*1750 |
4500*1200*1750 |
