Specifications
Computer control carry bag making machinedouble deck, 4 lines
heat sealing, cold cutting bag making machine
Name: Computer control carry bag making machine
Use
FLAT-BOTTOMED & VEST BA G MAKING MACHINE. The equipment is designed and manufactured on the basis of overseas advanced technology as well as domestic leading product of the same kind. As a fully automatic computer-controlled bag maker, it is mainly used to manufacture bags with films like PE, PP, PVC, etc. Equipped with various functions, such as photoelectric controlled automatic feeding, photoelectric color-code follow-up, double or quadruple feeding, double or quadruple sealing, motor speed and bag length control by computer, automatic pile-up, etc. This machine is an ideal one to produce vest bag, flat-bottomed bag and fertilizer bag.
Features:
1) Computer control carry bag making machine is used for producing vest bags, flat-opening bags with printing;
2) the main motor adopt frequency control of motor speed to save more electricity and regulate speed more freely.
3) The color code tracker with good performance makes the sealing and cutting length more accurate and the error smaller.
4) It adopts advanced computer to adjust length more freely and accurately.
5) It could work max. 4 lines same time.
Technical Parameters:
Model |
700 |
800 |
900 |
1000 |
Max. Width of bag-making(mm) |
620 |
720 |
800 |
900 |
Max.Length of bag-making(mm) |
1200 |
1200 |
1400 |
1600 |
Speed of bag-making(pc/min) |
240-400 |
60-100 |
50-100 |
40-100 |
Power of motor(kw) |
4 |
2 |
1 |
1 |
Power of motor(kw) |
1.5 |
1.5 |
2.2 |
3 |
Weight(kg) |
850 |
850 |
1000 |
1100 |
Outine dimension(L x w x h)mm |
3500 x 1300 x 1700 |
3500 x 1300 x 1800 |
3700 x 1600 x 2000 |
3800 x 1800 x 2100 |

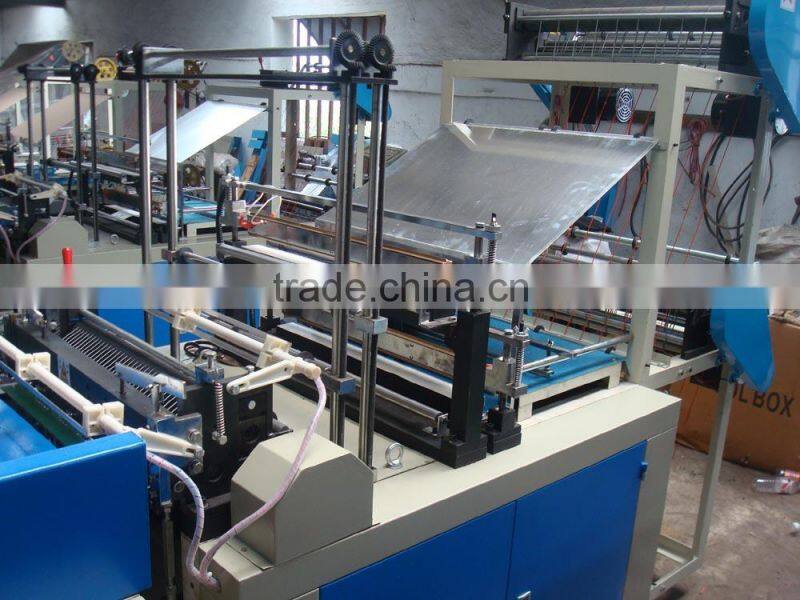

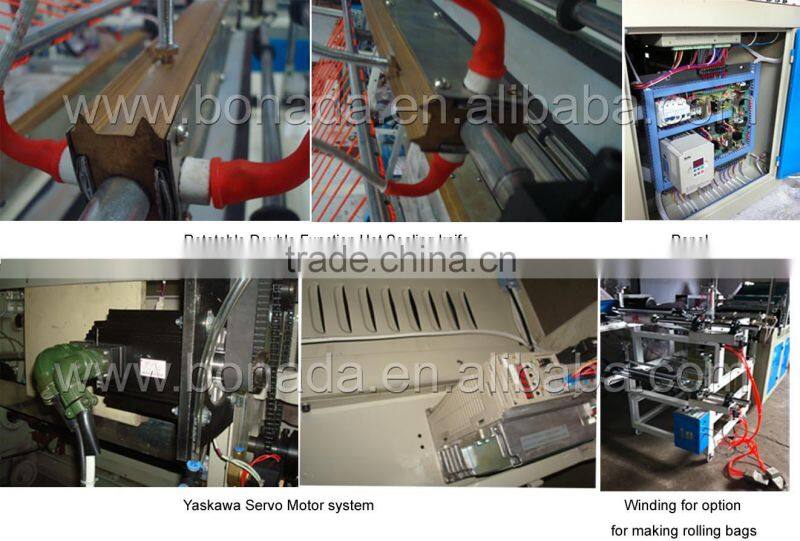

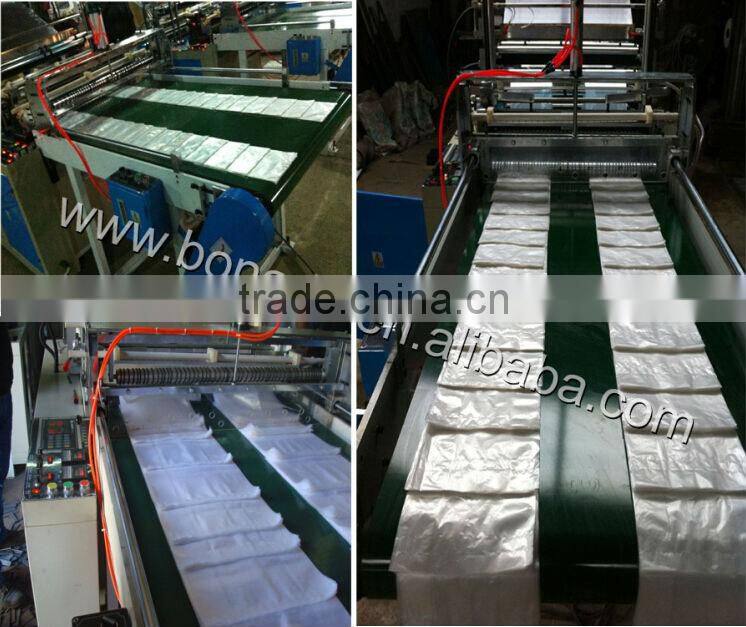

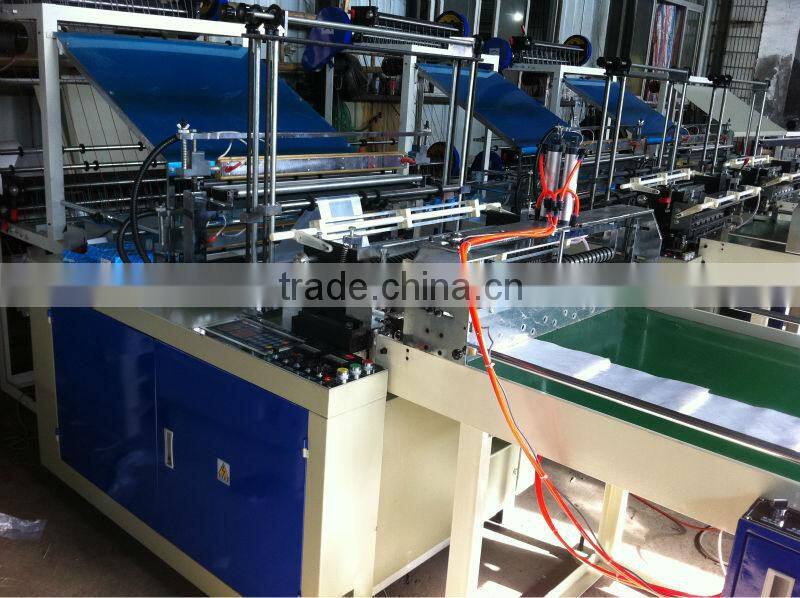

Machine live photos:
Conveyor for option
