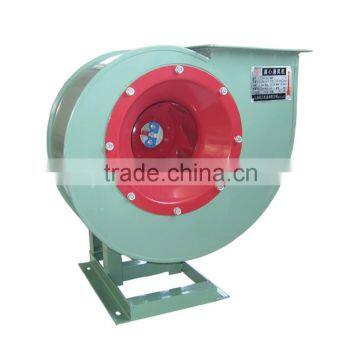

4-72 model Low Pressure Centrifugal fan with house
- 5000 Piece / Pieces per Month
- ningbo
- T/T Credit Card PayPal
You May Like
Product Details
Electric Current Type | AC | Blade Material | Cast Iron | |
Mounting | Wall Fan | Place of Origin | Zhejiang, China | |
Brand Name | FENGDA | Model Number | 3.2A | |
Power | 2.2kW | Voltage | 380V | |
Air Volume | 1688-3517m3/H | Speed | 2900RPM | |
Certification | CCC, CE, CSA, GS, ROHS, UL | After-sales Service Provided | No overseas service provided |
Product Description
Specifications
4-72 model Low Pressure Centrifugal fan with house1.Size: 2A to5A
2. 1year warranty
3.High Quality
4.CCC,CE appro
4-72 model Low Pressure Centrifugal fan with house
The T4-72 series centrifugal fans convey air and other non-hypergolic gas which are not harmful to the hauman body and will not corrode steel and ironmaterials . The adhesive materals are not allowed in the gas. It is applicable for the indoor ventilation and air-exchange to the common factories and architectures. Tt can be used either as input or output gas.
1.Parameters
Model | Speed | Input Power | Air Flow | Pressure |
RPM | Kw-p | m3/h | Pa | |
2.8A | 2900 | 1.5-2 | 1131-2356 | 994-606 |
3.2A | 2900 | 2.2-2 | 1688-3517 | 1300-792 |
1450 | 1.1-4 | 884-1758 | 324-198 | |
3.6A | 2900 | 3.0-2 | 2664-5268 | 1578-989 |
1450 | 1.1-4 | 1332-2634 | 393-247 | |
4A | 2900 | 5.5-2 | 4012-7419 | 2014-1320 |
1450 | 1.1-4 | 2006-3709 | 501-329 | |
4.5A | 2900 | 7.5-2 | 5712-10562 | 2554-1673 |
1450 | 1.1-4 | 2856-5281 | 634-416 | |
5A | 2900 | 15-2 | 7728-15445 | 3187-2019 |
1450 | 2.2-4 | 3864-7728 | 790-502 | |
6A | 1450 | 4.0-4 | 6677-13353 | 1139-724 |
960 | 1.5-6 | 4420-8841 | 498-317 |
Model | Air Inlet Size | Air Outlet Size | ||||||||||||
D1 | D2 | D3 | bolt | number | A1 | A2 | A3 | A4 | A5 | A6 | a×b | c×d | n1×d1 | |
2.5 | Φ250 | Φ285 | Φ310 | M×10 | 6 | 204 | 228 | 254 | 179 | 207 | 229 | 3 ×76 | 3 ×69 | 12-Φ69 |
2.8 | Φ280 | Φ306 | Φ324 | M8×12 | 8 | 224 | 256 | 278 | 196 | 228 | 251 | 4×64 | 4×57 | 16-Φ7 |
3.2 | Φ320 | Φ350 | Φ367 | M6×12 | 16 | 256 | 288 | 310 | 224 | 256 | 276 | 4×72 | 4×64 | 16-Φ7 |
3.6 | Φ360 | Φ394 | Φ416 | 288 | 320 | 343 | 252 | 284 | 308 | 4×80 | 4×71 | 16-Φ7 | ||
4 | Φ400 | Φ440 | Φ462 | 320 | 355 | 374 | 280 | 315 | 336 | 4×70 | 4×60 | 20-Φ7 | ||
4.5 | Φ450 | Φ490 | Φ512 | M8×20 | 16 | 360 | 395 | 415 | 315 | 350 | 371 | 4×78 | 4×70 | 20-Φ7 |
5 | Φ500 | Φ550 | Φ572 | 400 | 435 | 456 | 350 | 385 | 406 | 4×88 | 4×75 | 20-Φ7 | ||
5.6 | Φ560 | Φ610 | Φ645 | 452 | 480 | 502 | 397 | 426 | 447 | 5×96 | 4×100 | 18-Φ7 | ||
6 | Φ600 | Φ650 | 676 | 480 | 511 | 536 | 420 | 455 | 476 | 5×87 | 5×75 | 24-Φ7 |
Model | Installation size | |||||||||||
G | M | L | F | N | K | E | a | b | a1 | b1 | d2 | |
2.5 | 406 | 504 | 379 | 167 | 350 | 175 | 90 | 200 | 225 | 260 | 250 | Φ10 |
2.8 | 454 | 576 | 440 | 187 | 350 | 196 | 100 | 140 | 256 | 320 | 280 | |
3.2 | 518 | 648 | 478 | 213 | 390 | 252 | 115 | 150 | 255 | 340 | 280 | |
3.6 | 582 | 740 | 517 | 239 | 450 | 252 | 129 | 160 | 275 | 360 | 300 | Φ12 |
4 | 647 | 790 | 578 | 265 | 520 | 280 | 143 | 350 | 370 | 410 | 406 | |
4.5 | 728 | 885 | 613 | 298 | 570 | 315 | 161 | 370 | 370 | 430 | 406 | |
5 | 808 | 980 | 737 | 330 | 635 | 350 | 178 | 450 | 440 | 530 | 484 | |
5.6 | 903 | 1100 | 663 | 369 | 650 | 392 | 200 | 400 | 380 | 500 | 430 | |
6 | 969 | 1171 | 609 | 396 | 745 | 420 | 216 | 370 | 375 | 450 | 420 |
1.Warranty:1 year warranty for all products.
2.Products Quality:100% products inspection before delivery.
3.Just in time delivery: Normally,lead time is 30 days.
4.Customized Service: As we have our own molding department,customized service can be provided.
5.Prompt customers services:E-mail will be replied in 24 hours.
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs. We professionally
manufacture various fans and motors,which widely used in ventilation,air condition,cooling and heating industry.
We have strong technology,specialized production facilities and advanced inspection instruments,relying on professionally
R &D team,high efficiency production lines and scientific management ."Low noise,high airflow volume,stable running and long lifetime" to be our strongpoint. By national detection,the technical values of noise, volume, temperature rising balance,lifetime are better than other factories.
1. Q: What information do you need to provide in order to get a question?
A: Generally,information about size,Air Flow,Voltage of required fans is needed in order to
select a right fan for you and provide you a quation.
2. Q: Can I have samples for testing before ordering products?
A: Yes,we sincerely suggest that customers should be have samples of required fans for testing because
the truly performace of fans can be fully demonstrated after testing is conducted.
3. Q:Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity.If annual usage quantities increase,please provide the information to our sales.We will provide you a furth discount.
4. Q:What is the warranty of products?
A: All of our products have 1 year warranty.Every product has its own production code.This code is
able to track the productiuon time.
