Home > Products > Centrifugal Fan > Industrial 108mm 230/400v Galvanized Steel Impeller Forward Curved Centrifugal Fans
Industrial 108mm 230/400v Galvanized Steel Impeller Forward Curved Centrifugal Fans
US$ 12.5
≥1 Pieces
- shanghai
- T/T L/C PayPal Western Union Other
- 20 days
You May Like
-
Factory Customized 120mm AC 230V/400V Forward Inclined Impeller Centrifugal Fans
-
OEM 133mm 230V/400V Small Single Inlet Centrifugal Fan With Forward Curved Impeller
-
Custom Small Size 140mm 230v Housing AC Forward Centrifugal Cooling Fans
-
Wholesale 150mm AC Forward Centrifugal Fans Blowers for Air Purifier
-
160mm AC Forward Curved Centrifugal Fan for Extractor Hood
-
180mm Ac Stable and Efficient Centrifuge Air Blower Fan
Product Details
| Brand Name | surke | Place of Origin | China | |

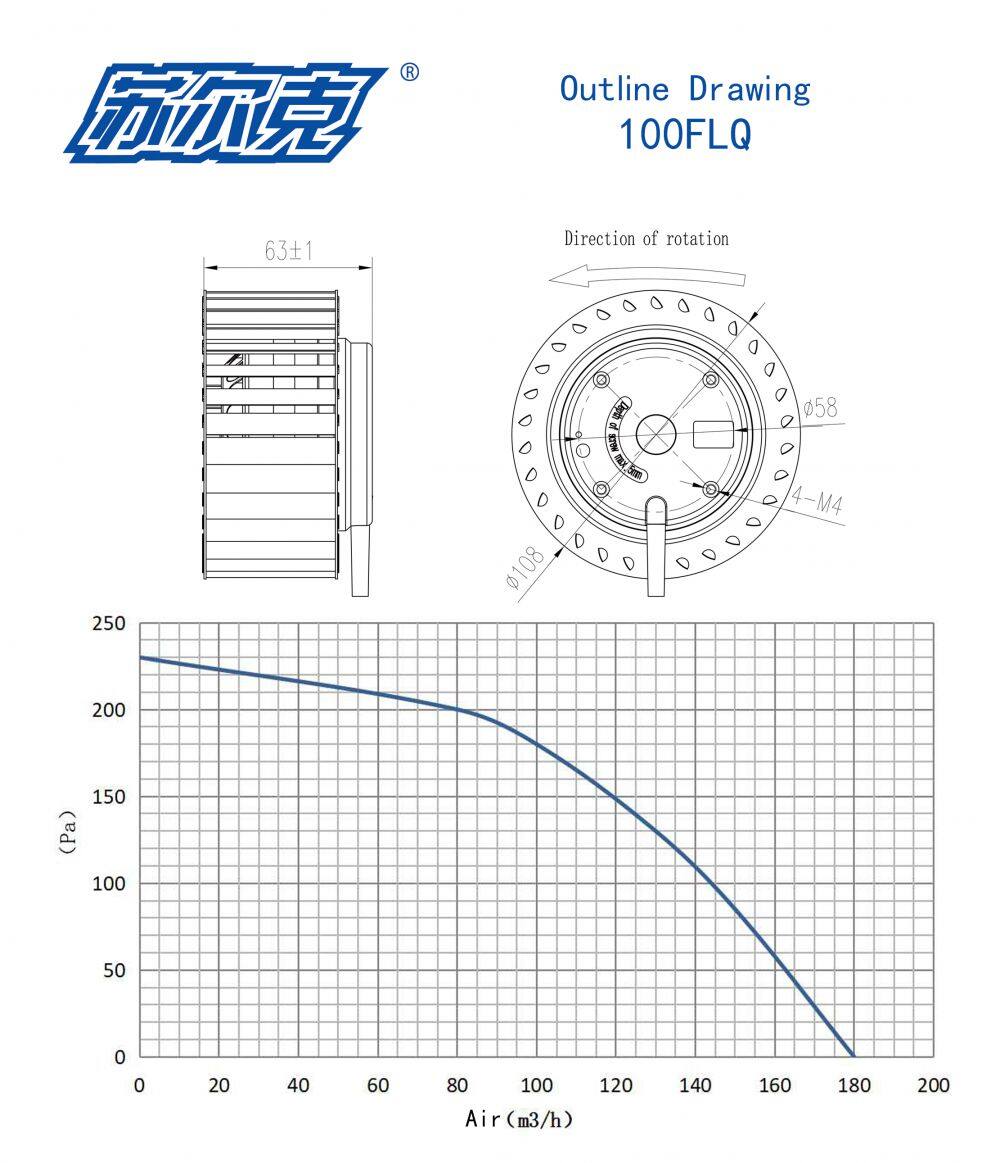

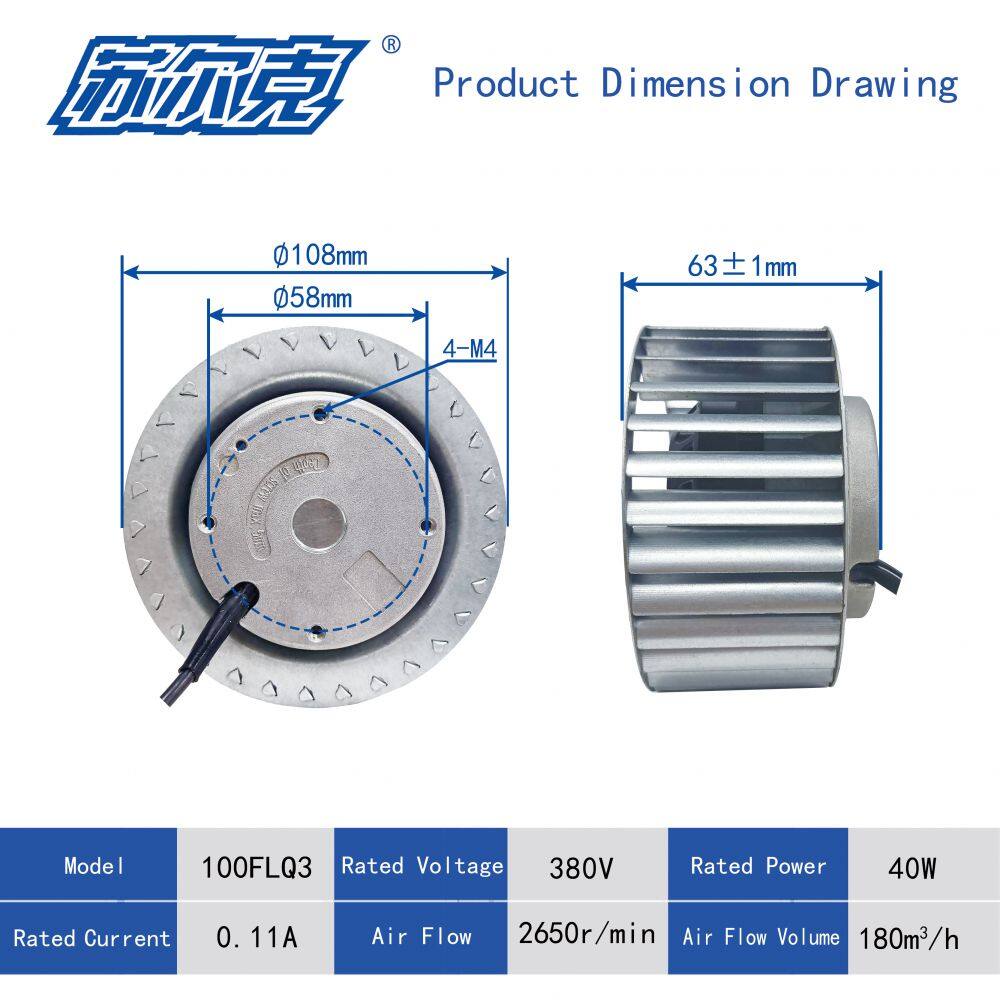

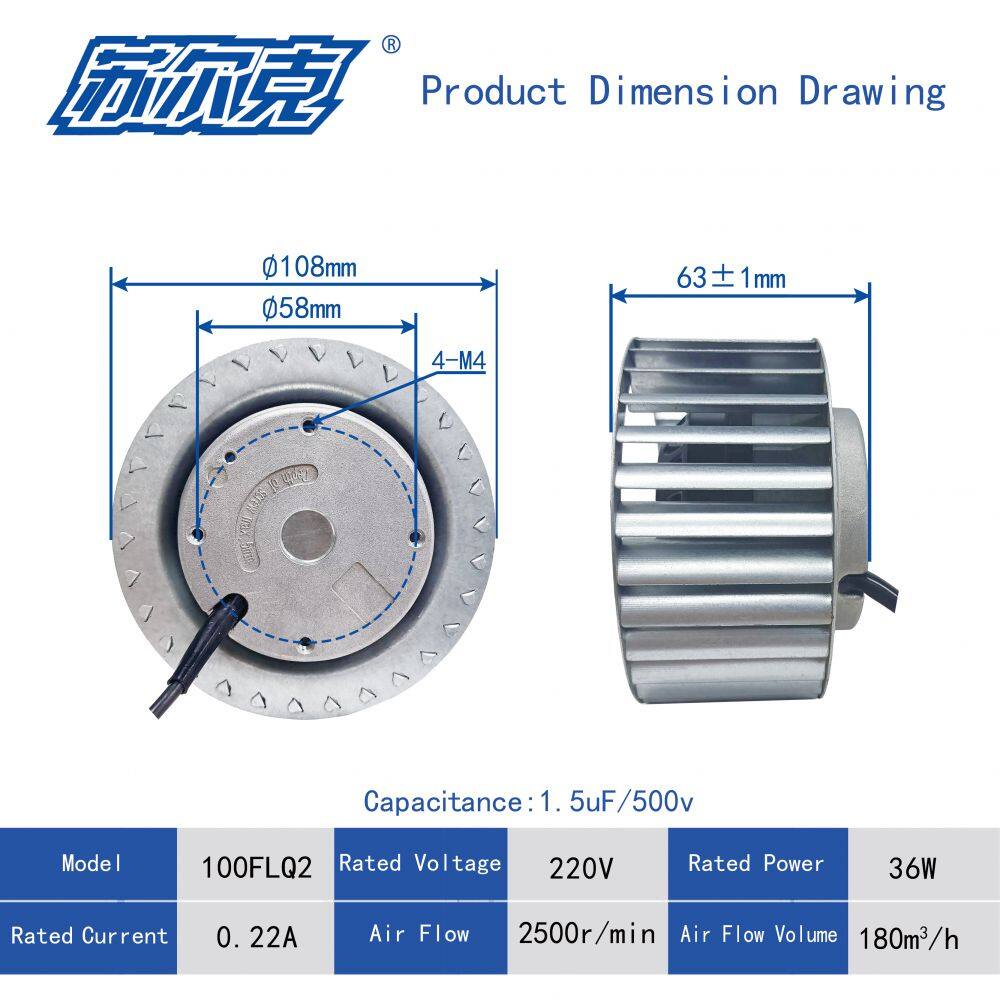

| Model Number | 100FLQ | Certification | CCC, CE | |
| Voltage | 230/400V | Power | 40W | |
| Speed | 2650r/min | Air Volume | 180m³/h | |
| Blade Material | Cast Iron | Mounting | Duct Fan | |
| Electric Current Type | AC |
Product Description
FLQ and FLJ Series
The FLQ centrifugal fans use external rotor or internal rotor AC asynchronous motors, or DC and EC external rotor motors. They are designed with multi-vane forward-curved centrifugal impellers. They have the characteristics of compact structure, small size, high efficiency, large air volume, and high static pressure. The FLJ series is designed with a matching volute on the basis of the FLQ series, making the product installation more convenient! It is widely used in the ventilation and heat dissipation of ground control facilities and electronic equipment, pipeline dust removal, exhaust air discharge, heat dissipation of air purification equipment in the fresh air system, inflatable dolls, blow molding machinery, smoke machinery, drying equipment, kitchen equipment, etc., with a wide range of applications.
Operating Environment:
Ambient temperature: -10°C～+40°C (H), -20°C～+55°C (G)
Atmospheric pressure: 74.8KPa (H), 55KPa (G)
Relative humidity: 90%-95%
