Home > Products > Axial Fan with External Rotor Motor > poultry farming equipment/ poultry farming ventilation/ poultry farming cooling fan
poultry farming equipment/ poultry farming ventilation/ poultry farming cooling fan
- ningbo/shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Electric Current Type | AC | Mounting | Wall Fan | |
Blade Material | Cast Iron | Place of Origin | Zhejiang, China | |
Brand Name | FENGDA | Model Number | FZY-4E400/FZY-4D400 | |
Voltage | 220V/380V | Power | 190w | |
Air Volume | 3500m3/h | Speed | 1350RPM | |
Certification | CCC, CE, CSA, GS, ROHS, UL | After-sales Service Provided | Overseas service center available |
Product Description
poultry farming equipment/ poultry farming ventilation/ poultry farming cooling fan
1, IP degree: IP 54
2., Insulation of class degree: F

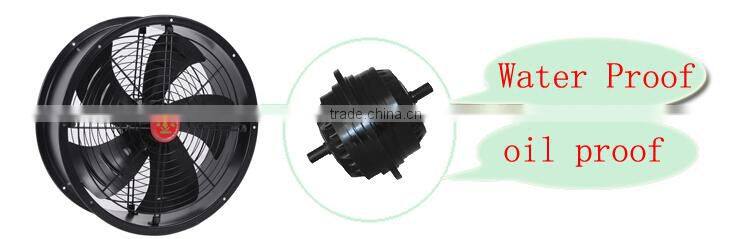

3., Water proof and oil proof
4, Fan diameter : 200mm to 600mm.
5, The voltage :120V/60Hz ,220V/50Hz,380V/50Hz or according to customer's requirements.
6,The using life is over 30000 hours.
7,The using ambient temperature is from -30°c to 60°c
8,The motors are 100% pure copper
Model | Voltage V | Frequency Hz | Current A | Power W | Speed RPM | Air Flow m3/h | Capacitor uF | Noise dB(A) | Pressure Pa |
FZY-2E200 | 220 | 50 | 0.29 | 65 | 2100 | 1050 | 2 | 65 | 90 |
FZY-2D200 | 380 | 50 | 0.15 | 60 | 2150 | 1050 | / | 65 | 90 |
FZY-4E200 | 220 | 50 | 0.24 | 55 | 1430 | 510 | 2 | 53 | 30 |
FZY-4D200 | 380 | 50 | 0.16 | 60 | 1400 | 510 | / | 53 | 30 |
FZY-2E250 | 220 | 50 | 0.73 | 160 | 2200 | 2100 | 4 | 69 | 100 |
FZY-2D250 | 380 | 50 | 0.31 | 120 | 2150 | 2100 | / | 69 | 100 |
FZY-4E250 | 220 | 50 | 0.26 | 60 | 1320 | 1300 | 2 | 55 | 35 |
FZY-4D250 | 380 | 50 | 0.17 | 65 | 1335 | 1200 | / | 55 | 35 |
FZY-2E300 | 220 | 50 | 0.78 | 170 | 2100 | 2700 | 4 | 69 | 130 |
FZY-2D300 | 380 | 50 | 0.38 | 145 | 2150 | 2700 | / | 69 | 130 |
FZY-4E300 | 220 | 50 | 0.35 | 75 | 1340 | 2200 | 3 | 61 | 60 |
FZY-4D300 | 380 | 50 | 0.26 | 100 | 1350 | 2200 | / | 61 | 60 |
FZY-4E400 | 220 | 50 | 0.35 | 185 | 1340 | 4150 | 4 | 65 | 160 |
FZY-4D400 | 380 | 50 | 0.51 | 195 | 1345 | 4150 | / | 65 | 160 |
FZY-4E500 | 220 | 50 | 1.49 | 320 | 1310 | 8000 | 6 | 68 | 170 |
FZY-4D500 | 380 | 50 | 0.85 | 325 | 1135 | 8000 | / | 68 | 170 |
FZY-4E600 | 220 | 50 | 3.10 | 680 | 1320 | 12000 | 8 | 73 | 300 |
FZY-4D600 | 380 | 50 | 1.70 | 650 | 1380 | 12000 | / | 73 | 300 |
FENGDA was establish in 1990,covering an area of 17,000 square meters,more than 200 employes.We professionally manufacture various fans and motors,which widely used in Ventilation,air condittion,air condition,cooling and heating industry.
We have gotten CE,UL,CCC certificates and ISO9001 Quality Management System Certification.nd our products are exporting to Europe and America,Middle East,Russia etc.
One piece in one single carton
1,We could provide the OEM service.
2,We also could repair the goods for you after the warranty period.
3.Warranty period could be 2 years.
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could FENGDA provide technology support?
A: We're in this field many years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does FENGDA keep goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
4. Q: Could you fill the invoice for customs as our requirement?
A: Yes, if there's any requirement for it, please tell us. We'll do it.
