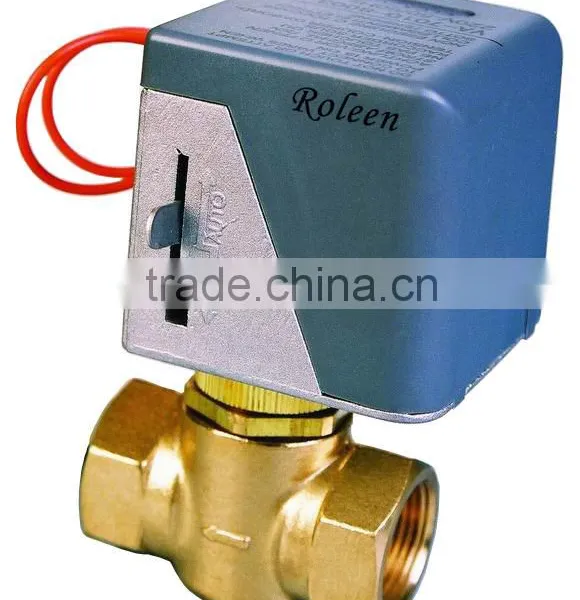

RL 6088 Two-way/Three-way 2-wire On/off Motorized Valve
US$ 12 - 18
MOQ: 50 Units
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Angle
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RL 2088 Two-way/Three-way 3-wire On-off/Modulating Motorized Ball ValveUS$ 15 - 25MOQ: 50 Units -
RL 3088 Two-way/Three-way 3-wire On-off/Modulating Motorized Ball ValveUS$ 15 - 150MOQ: 50 Units
-
RL3300Series Electrical Linear Valve ActuatorUS$ 100 - 200MOQ: 10 Units
-
RL7200 Series Electrical Linear Valve ActuatorUS$ 150 - 300MOQ: 10 Units
-
VB 3200 HVAC Control ValveUS$ 15 - 300MOQ: 10 Units
Standard or Nonstandard
Standard
Structure
Angle
Pressure
Medium Pressure
Power
Other, AC hysteresis Synchronous
Material
Brass
Temperature of Media
Normal Temperature
Media
Water
Port Size
DN 15 DN 20 DN 25
Place of Origin
Fujian, China
Model Number
RL 8068
Brand Name
Roleen
Specifications
Actuator could be installed after the valve body is fixed.RL 6088 Two-way/Three-way 2-wire On/off Motorized Valve
RL 6088 Series Two-way/Three-way Motorized Valves are widely used in heating and air-conditioning system. Actuator could be installed after the valve body is fixed.
Part No &Specification
| Power Consumption: | <7 W |
| Motor: | AC hysteresis SynchronousMotor |
| Actuator: | Casting Aluminum Plate, Nonflammable ABS Plastic Cover. |
| Valve Body: | Forging Brass |
| Stem: | Brass |
| Paddle: | Nitrile-butadiene rubber (NBR) |
| Spring Return | Yes |
Model# |
Screw & Size |
Config. |
KV |
Pressure Mpa |
Medium |
Media Temp. |
Ambient Temp. |
Power Supply |
RL6088-215 |
G1/2(15mm) |
2-way, Normally Close |
2.5 |
2.5 |
Chilled Water or Hot Water |
2~94℃ |
0~65℃ |
24/110/220 Vac, + 10%, 50/60Hz |
RL6088-220 |
G3/4(20mm) |
2-way, Normally Close |
2.1 |
2.5 |
||||
RL6088-225 |
G1 (25mm) |
2-way, Normally Close |
4.0 |
2.5 |
||||
RL6088-315 |
G1/2(15mm) |
3-way, Diverting |
2.5 |
2.5 |
||||
RL6088-320 |
G3/4(20mm) |
3-way, Diverting |
3.5 |
2.5 |
||||
RL6088-325 |
G1 (25mm) |
3-way, Diverting |
4.0 |
2.5 |
