Home > Industrial Equipment & Components > Valve > Ball Valve > RL 8068C-5 Two-way/Three-way 5-wire On/off Coupling Motorized Valve

RL 8068C-5 Two-way/Three-way 5-wire On/off Coupling Motorized Valve

Name: RL 8068C-5 Two-way/Three-way 5-wire On/off Coupling Motorized Valve
Brand: Roleen
SKU: 133087311
Availability: InStock

RL 8068C-5 Two-way/Three-way 5-wire On/off Coupling Motorized Valve thumbnail-1

RL 8068C-5 Two-way/Three-way 5-wire On/off Coupling Motorized Valve photo-1

US$ 13 - 20 MOQ: 50 Units

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Ball

Pressure:

Medium Pressure

Contact Supplier Request Quote Chat Now

Xiamen Ronglin Electronics Technology And Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Ball

Pressure Medium Pressure

Power Other, AC hysteresis Synchronous

Material Brass

Temperature of Media Normal Temperature

Media Water

Port Size DN 22 DN 28

Place of Origin Fujian, China

Model Number RL 8068-5C

Brand Name Roleen

Specifications

Actuator could be installed after the valve body is fixed.

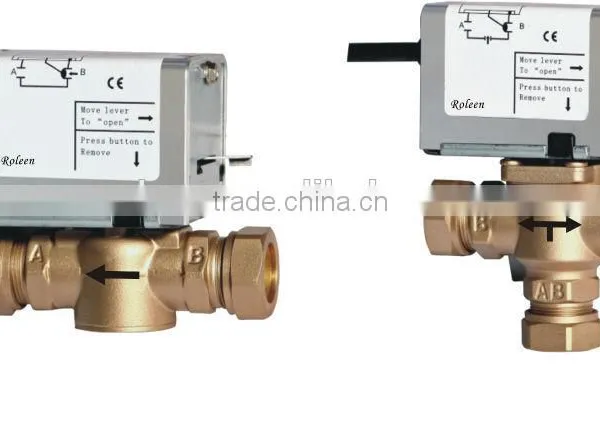

RL 8068C-5 Two-way/Three-way 5-wire On/off Coupling Motorized Valve

RL 8068C-5 Series Two-way/Three-way Motorized Valves are widely used in heating and air-conditioning system. Actuator could be installed after the valve body is fixed.

Part No &Specification

Power Consumption:	<7 W
Motor:	AC hysteresis SynchronousMotor
Actuator:	Stainless Steel Plate, Aluminum Cover.
Valve Body:	Forging Brass
Stem:	Brass
Paddle:	Nitrile-butadiene rubber (NBR)

Model#	Coupling Size	Config.	KV	Pressure Mpa	Medium	Media Temp.	Ambient Temp.	Power Supply
RL8068C-5222	22mm	2-way, Normally Close	2.6	1.6	Chilled Water or Hot Water	5~88℃	<52℃	220 Vac, + 10%, 50/60Hz
RL8068C-5228	28mm	2-way, Normally Close	2.8	1.6
RL8068C-5322	22mm	3-way, Diverting	2.6	1.6
RL8068C-5328	28mm	3-way, Diverting	2.8	1.6

Part No &Specification

Power Consumption:	<7 W
Motor:	AC hysteresis SynchronousMotor
Actuator:	Stainless Steel Plate, Aluminum Cover.
Valve Body:	Forging Brass
Stem:	Brass
Paddle:	Nitrile-butadiene rubber (NBR)

Model#	Coupling Size	Config.	KV	Pressure Mpa	Medium	Media Temp.	Ambient Temp.	Power Supply
RL8068C-5222	22mm	2-way, Normally Close	2.6	1.6	Chilled Water or Hot Water	5~88℃	<52℃	220 Vac, + 10%, 50/60Hz
RL8068C-5228	28mm	2-way, Normally Close	2.8	1.6
RL8068C-5322	22mm	3-way, Diverting	2.6	1.6
RL8068C-5328	28mm	3-way, Diverting	2.8	1.6
