Help CenterTY-Middle Section Treatment Grinding Machine
Related Products
Specifications
1.Washing machine for single side plate2.Surface treatmentof drying or wet membrane
3.Acid washing

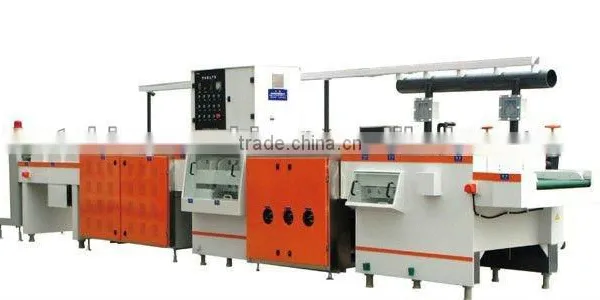

Middle Section Treatment Grinding Machine
Characteristics:
The line is used as washing treatment for single-side plate, usually it is used for surface treatment of drying or wet membrane, also it can use as flux after de-lead or tin. Two upper and two lower roll make the brush even. Spray with acid before brush, which can remove the oxidation layer.
Process flow:
Feeding → Acid washing → Pump washing → Running water washing → Grinding → Pump washing → Running water washing → Blot up → Cold wind drying → Hot wind drying → Cooling → Discharge
Main technical parameter:
1 |
Size of Machine |
L8300×W1800×H1980mm |
2 |
Working Height |
900mm |
3 |
Working Width |
700mm |
4 |
Running Speed |
0.5-5m/min |
5 |
Power voltage |
Three-Phase Four-Wire 380 V 50 HZ |
6 |
Total power of the machine |
22KW |
7 |
Size of maximal board |
610mm*460mm |
8 |
Size of minimal board |
150mm*150mm |
9 |
Thickness of outputting board |
0.1-2.5mm |
10 |
Running water consuming |
8-12L/min |
