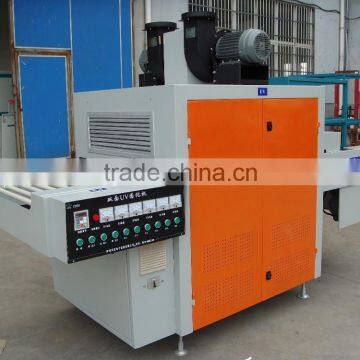

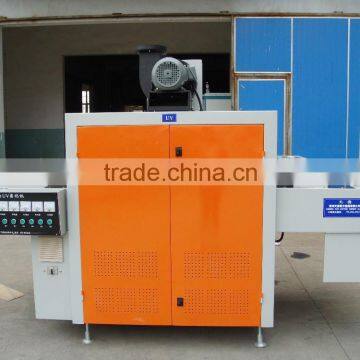

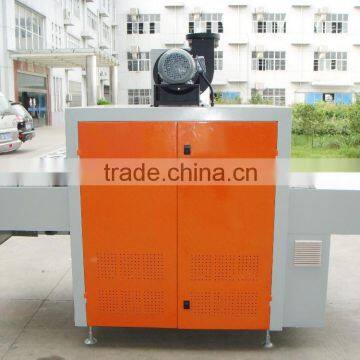

Tianyi UV Coating Machine

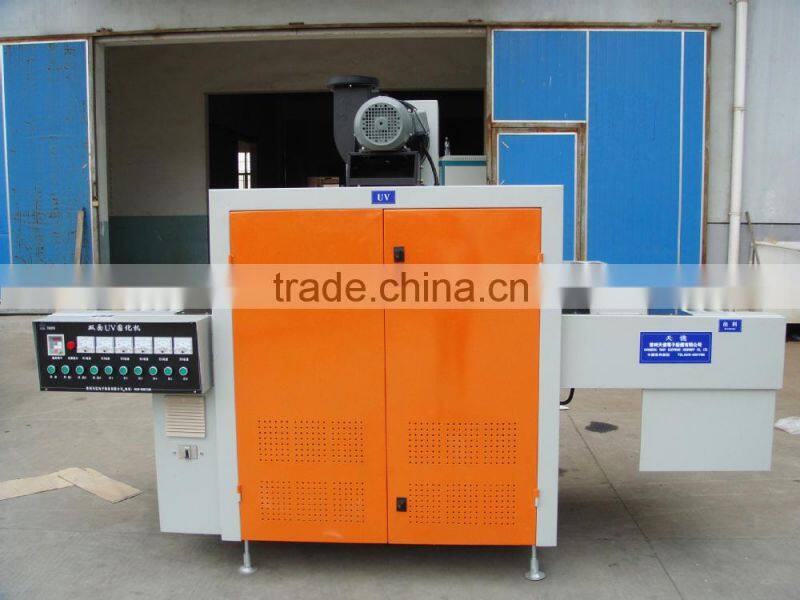

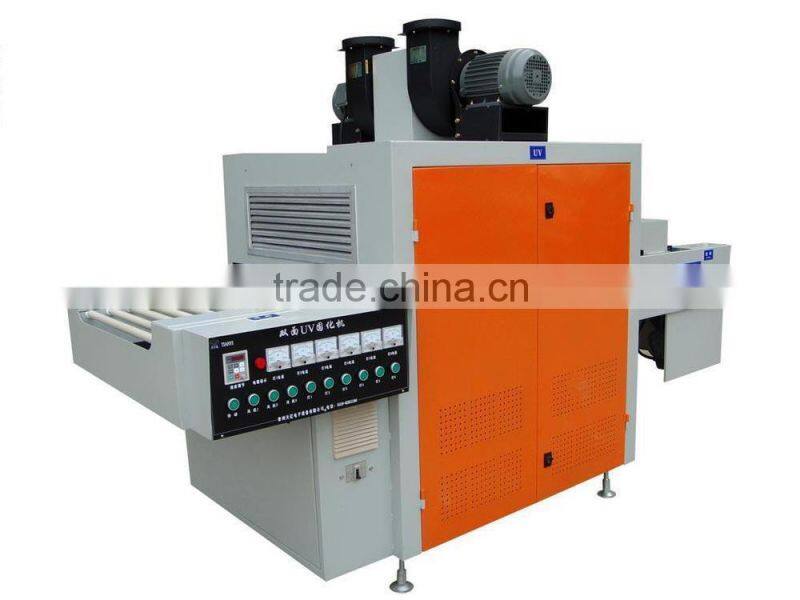

Tianyi UV Coating machine

  We are an unparalleled name in presenting superior quality UV Coating &Curing Machine that is demanded for all the offset presses. This machine is demanded in various sizes and types like high pile, low pile and online attachment. Designed using superior grade components at our well equipped manufacturing unit under the stern supervision of our professionals, this machine is available in various specifications. Clients can purchase this UV Coating &Curing Machine as per their application requirements at market leading rates.

Process flow:

Feeding → UV Curing → Cooling → Discharge

Mainly technology parameter:

Features:

• Compact, efficient design
• Heat resistant mesh conveyor belt
• Tilting control from conveyor declination
• Displayed conveyor speed meter
• Adjustable control speed with meter
• Low noised cooling blowers
• Safety working from harmful uv rays
• Low maintenance cost
• Emergency stop switch
• Available in  440v

  Available in different sizes and with IR lamps too

Maintenance:

UV lamp switch
1, Opening Turn:
→  Open the main power converter (use the drive to adjust the desired speed) → Turn open the UV lamp switch (select appropriate gear) → Cooling fan automatically starts → 10 minutes after the normal work after three minutes.
2, UV shutdown Turn:
Turn off the UV lamp →  Cooling fan automatically turns off after 5-8 minutes → shut off the power converter →Turn off power
Note:
* Turn on the lights in turn, each light interval of one minute or so, do not open the same time.

* Continue to run the fan for some time after the lights are turned off, causing the lamp to cool straight up.

* If you want to turn off the lights after the second start, it must closed until the lamp is completely cool before starting, otherwise the tube surface at high temperatures is not starting up.

* Lights, lamps have some warm-up time, the summer temperature is high, warm-up time is short; low winter temperatures, longer preheat time, preheat time should be 2-3 minutes. If the machine has the strength of UV light device, you should start light profile lights, which can shorten the lamp warm-up time, if the production needs of low light, can be adjusted at the end of the warm-up low-light gear.

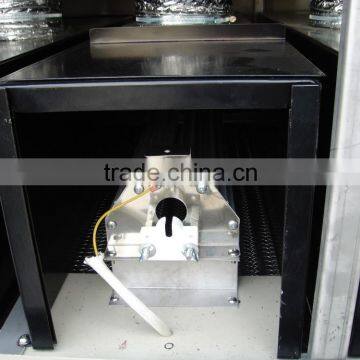

 Lamp maintenance

* Maximum UV lamp life in general is generally 1000-2600 hours, reached after life should be replaced.
* UV lamp during use, at the appropriate time (1-2 weeks) with ethanol, gauze clean tube surface and the reflective surface of the reflective cover plate, then the UV lamp is rotated 180 degrees. Lampshade reflector plate to be replaced after losing the mirror effect.

 Speed adjustment
* Optimum speed selection methods: the first product to a certain speed by UV curing apparatus, if solidified, and then speed, until the product through the curing apparatus just not completely cured, whereupon the speed multiplied by 0.8 is the optimum speed .
* Also note that the UV lamp usage time, with the extension of the UV lamp use of time, energy will decay, but    subsequently slow the pace.
 Transformers, capacitors
* Transformer line voltage according to the site to select the appropriate terminals.
* Capacitor after use, if repairs must be discharged in order to avoid capacitor discharge wounding.
Five, ultraviolet light will damage the eyes and skin, when the lights do not look directly into the tube surface, and do not let the ultraviolet radiation to bare skin

Application:

Metal solidifying  :Copper,Nickle,Zinc ,Aluminum,Iron,Tin,Chrom,Magesium ,Pewter,Brass,Silver,etc.

PCB solidifying : Mobile PCB, Computer PCB, Light PCB , Battery PCB,etc.

Quality & Inspection

• Cooperated with good reputation suppliers.
• 100% check spare parts quality which produced from matching suppliers.
• QC checking each step from spare parts to production on the full of line.

Production for a series of etching,cleaning, electroplating equipment. At present,we have cooperated with iphone,asus,HP,HTC,Samsung,LG and other industry brand processing manufactures,and we have achieved good reputation.Warmly welcome friends at home and abroad to visit our company and negotiate business.
