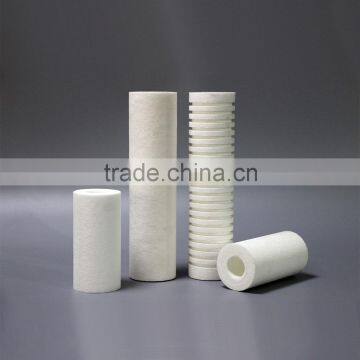

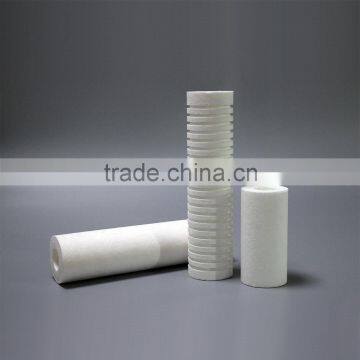

Help Center5micron PP Spun Melt Blown Filter Catridge for Water Treatment
Related Products
-
10" 110g Spun PP Sediment Filter Cartridge/ PP Melt Blown Water Filter CartridgeUS$ 1 - 3MOQ: 100 Pieces -
800 Gram 20" 1 Micron/5micron Big Fat pp Sediment Cartridge Filter for RO SystemUS$ 1 - 3MOQ: 100 Pieces
-
4" Diameter Melt Blown PP Spun Sediment Filter Cartridge/Big Fat Water Filter CartridgeUS$ 1 - 3MOQ: 100 Pieces
-
PP Type pp Sediment Filter Cartridge/10"160 Gram 1 Micron Melt Blown Filter/pp Melt Blown Filter CartridgeUS$ 1 - 3MOQ: 100 Pieces
-
1,5,10...100 Micron pp Melt Blown Cartridge Filter/PP Filter Cartridge Factory / PP Filter ManufacturerUS$ 0.1 - 0.35MOQ: 100 Pieces
Nominal Rated PP Melt Blown / Spun Cartridge Filters
Features & Benefits
• Surface pore structure spreads water flow to reduce pressure drop
• Continuously gradient pore structure increases the capacity of dust holding, longer service life and high efficiency
• High strength and pressure resistance
• Micro-denier melt blown filtration fiber, high removal ratings
• 100% PP for compatibility with a wide range of process fluids
• Formed by thermal bond without use of any binders and adhesives
Applications
• R.O. Pre-filtration
• Electronic industry
• Chemicals and Solvents
• Plating Solutions
Specification
Material Of Construction |
Filter media |
Polypropylene Microfiber 100% |
Micron rating |
1.0,2.0,3.0,5.0,10,30,50,70,100 μm |
|
Inner core |
Polypropylene / Coreless |
|
Outer cage,End Cap |
Polypropylene |
|
Filtration Efficiency |
>80% |
|
O-ring/Gaskets |
EPDM,Slicone,Buna,Viton |
|
Cartridge Dimensions |
Outer Diameter |
63mm,65mm,110mm,115mm |
Inner Diameter |
28mm, |
|
Length(Based on DOE End Cap) |
10”-254mm,20”-508mm,30”-762mm,40”-1016mm |
|
Filtration Area(m2) |
0.4m2 per 10” |
|
Operating Conditions |
Normal Operating Temperature |
Up to 50℃ (122℉) |
Max.Operating Temperature |
80℃ (176℉) at P≤1.0 bar (14.5psi) |
|
Forward Flow Direction |
4.0 bar (58psi) at 25℃ (77℉) |
|
Reverse Flow Direction |
2.0 bar (29psi) at 25℃ (77℉). |
|
PH Value Compatibility |
1-13 |
Certificate:
Q1. Can I have a sample order for filter cartridge?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks after the payment.
Q3. Do you have any MOQ limit for filter cartridge?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for filter cartridge?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on filter cartridge product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
