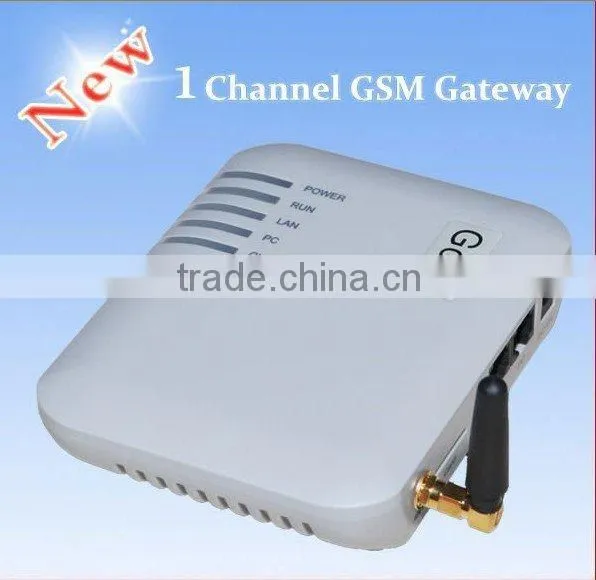

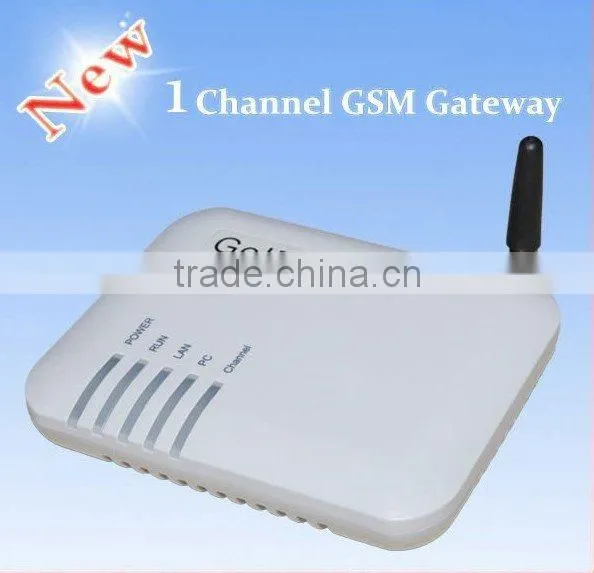

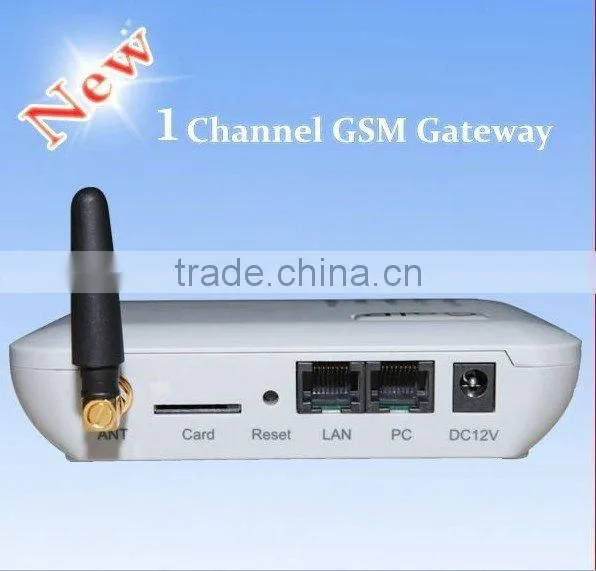

Product name:1 channel GSM VOIP gateway/1 SIM GOIP gateway/1 port GSM VOIP gateway/GSM Gateway SIP
Key Features
•Open Standard VoIP Protocols (ITU H.323 V4 and IETF SIP V2)
•Single or Multiple Server Registrations
•Two 10/100 Ethernet circuits connect to the LAN and an additional device
•GSM module for making GSM calls
•Speech quality ensured by QoS at the Ethernet and IP layers and
comprehensive jitter buffer
•VLAN and QoS support
•NAT Transversal and Router functions
•Voice prompts, HTTP Web, Auto Provision support for configuration and
updates
•Highly stable embedded Linux operating system in high performance ARM 9
Processor
Basic Features
•LEDs for Power, Ready, Status, WAN, PC, GSM
•Call forward from GSM to VoIP and VoIP to GSM
•Dial in mode or dial out mode only
•Dial Plan
•Password protection for both GSM dial in or dial out
•Retransmit GSM Caller ID to VoIP terminal
Enhanced Features
•Dynamic selection of codec
•Advanced jitter buffer
•Automatic traversal of NAT and firewall
•VLAN / Qos
•Router
•Echo cancellation for Speakerphone
•Comfort noise generation (CNG)
•Voice activity detection (VAD)
•Auto provisioning (requires auto provisioning server)
•On line firmware upgrade
•Multi-language support: English and Chinese
Supported Standards
•ITU: H.323 V4, H.225, H.235, H.245, H.450
•RFC 1889 - RTP/RTCP
•RFC 2327 SDP
•RFC 2833 RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
•RFC 2976 SIP INFO Method
•RFC 3261 SIP
•RFC 3264 Offer/Answer model with SDP
•RFC 3515 SIP REFER Method
•RFC 3842 A Message Summary and Message Waiting Indicator
•RFC 3489 Simple Traversal of User Datagram Protocol (UDP) Through Network
Address Translators (NATs)
•RFC 3891 SIP Replaces Header
•RFC 3892 SIP Referred-By Mechanism
•draft-ietf-sipping-cc-transfer-04 Session Initiation Protocol Call Control-Transfer
•Codec: G.711 (A/µ law), G.729A/B, G.723.1
•DTMF: RFC 2833, In-band DTMF, SIP INFO
Packing
Weight:600g(Including AC/DC Adapter)
Size:105 mm (W) x 100 mm (L) x 28 mm (H)
Power: 12 Vdc 500 mA (AC/DC adapter included)
Warranty: one year
