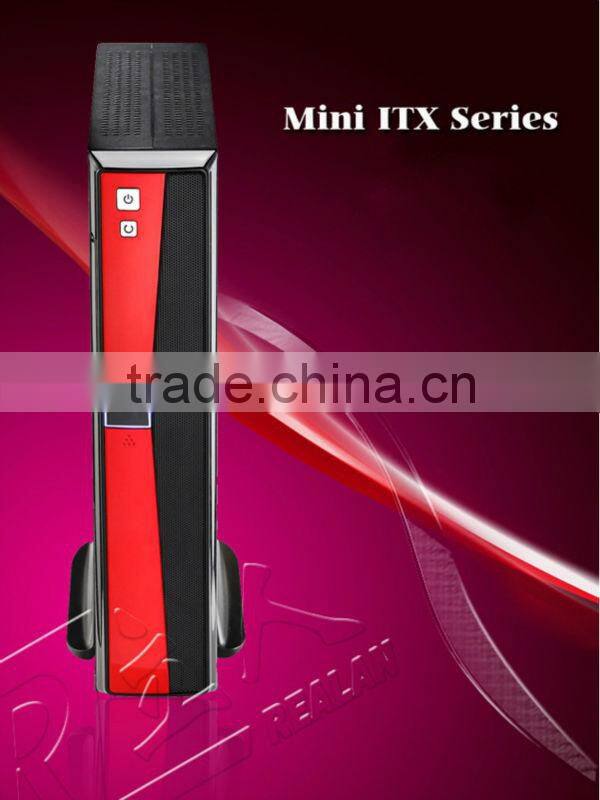

ITX case/mini itx case/computer case

Model

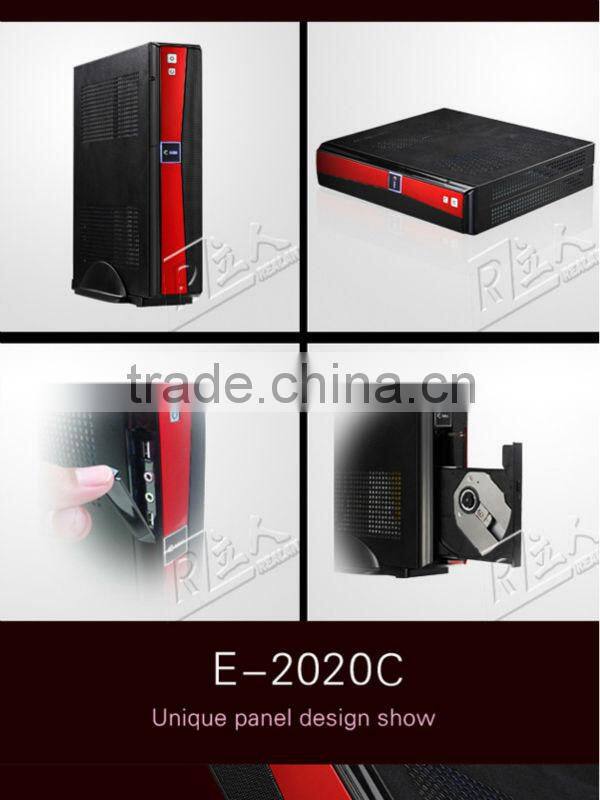

E-2020

Dimension

295x 280 x 64mm (HxDxW)

Form Factor

Mini-ITX M/B (170 x 170mm or 170 x190 mm)

Support Micro-ATX M/B (≤200*245 mm)

Specs

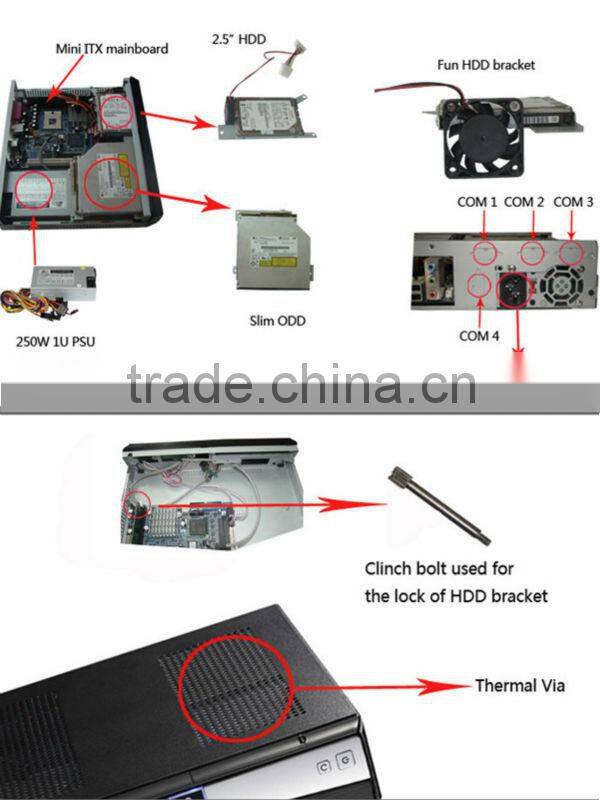

Exposed: 1 x 3.5" HDD Drive Bay (or 1 x 2.5" HDD Drive Bay) and 1* silm ODD Drive Bay

Hidden: SATA HDD or Optical Drive *1 (External)

Colors

White/Red/Blue/Silver/Black

Cooling Fan position

Hidden: 4cm Fan x 1(Optional)

Packing

N.W.: 2.0KG                 G.W.: 2.5KG

Each packed in neutrual box with handle(345*305*130 mm)

6pcs in one carton (690*430*375 mm)

Front I/O Port

Hidden: 2 x USB2.0 and 2 x Audio jacks: line-out and mic-in;

Power supply

120W DC Board and 12V/7A  AC Adapter

Option

1.      SATA-ESATA Cable

2.      4cm Fan x 1

3.      Remote Controller*1

4.      12V/5A or 10A AC Adapter

5.      PCI/PCI-E Riser Card

6.      IDE Converter Card for Slim ODD Drive

7.      IDE FLAT Cable for 2.5 inch HDD

8.      SATA Cable for SATA Slim ODD

Material

SECC 0.8mm and PC/ABS

Expansion Slot

PCI Slot*1 , 4pin*2 and SATA port*2pcs
