800Mhz CDMA FWT Fixed Wireless Terminal 8848

800Mhz CDMA FWT Fixed Wireless Terminal 8848

Brand:Etross or OEM

Frequency:CDMA 800mhz

Product name: 800Mhz CDMA fwt fixed wireless terminal

1.Specifications

1) It is a 1 channel GSM Gateway which has 2 RJ-11 outputs for extensions;

2) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc. ;

3) Dialing tone frequency:450hz;

4) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;

5) Can adjust voice volume by setting up from telephone set;

6) UIM card supported (1.8V, 3V);
7) Caller ID display;
8) DTMF Dialing;
9) Bell signal;
10) Polarity reversal;
11) The RJ-11 socket which connect the phone or billing system for metering purpose;
12) Antenna socket (SMA);
13) IP Presetting;
14) Working status and Signal Strength by LED indicator;

15) back up Li-ion battery( Optional) 7.2V 1300mAh.standby 24hrs,talking time: 2.5hrs.

2,Technical Specifications
Air interface standard: CDMA 800Mhz

Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W
AC-Adapter interface: Input: AC 110~240VAC  50~60Hz
                   Output: 12DC 1A.

AC-Adapter type: EU,US,AU,British can be optional

3,Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >2.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA

4Check Package:
ETROSS-8848 CDMA FWT 1 piece;

Ac-adapter 12V 1A: 1 piece,

GSM Antenna with 3m cable 1 piece,

User’s Manual 1 piece,

G.W: 0.75kg per unit. And 20pcs per carton, 16kg per carton.

Gift carton Measurement: 55cmX34.5cmX32.5cm

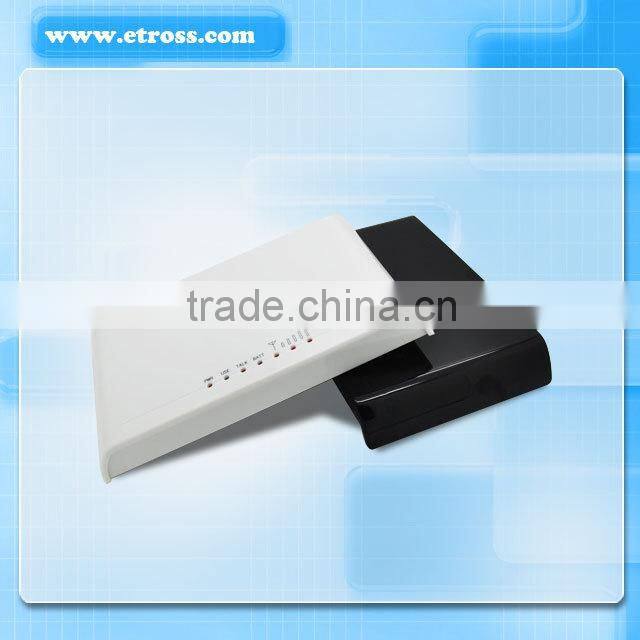

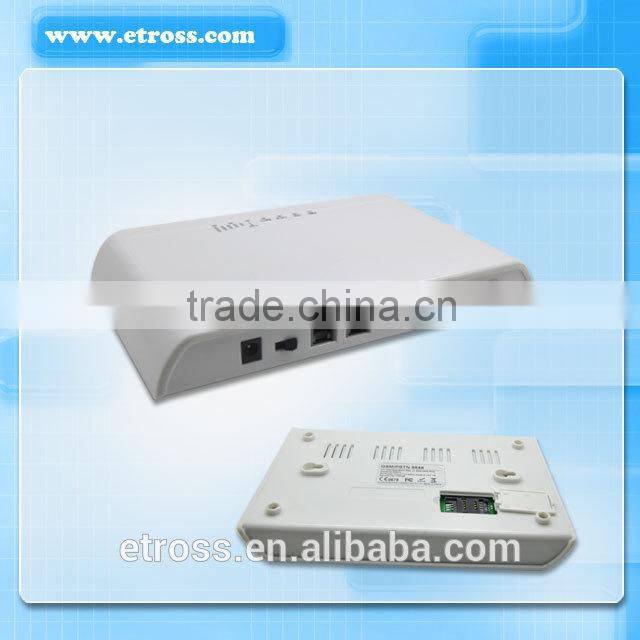

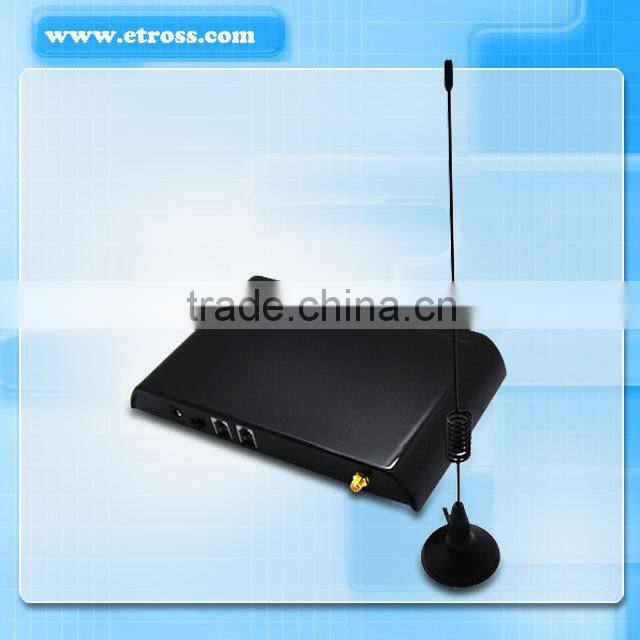

5,pictures
