Home > Products > CDMA FWT/CDMA FCT/CDMA GATEWAYS > CDMA Fixed Wireless Terminal / GSM Gateway 8 ports (Ruim card support)

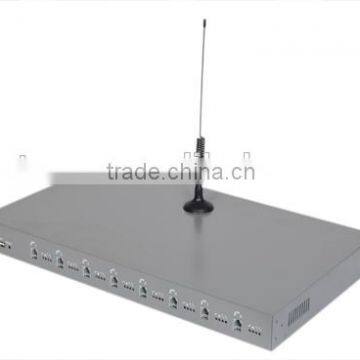

CDMA Fixed Wireless Terminal / GSM Gateway 8 ports (Ruim card support)
- 10000 Unit / Units per Month
- shenzhen
- T/T Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | etross | Model Number: | 8888 |
Type: | CDMA | Port Number: | 8 | Working Frequency: | 800/1900mhz |
Product Description
Brand: Etross or OEM brand
Model no.: Etross-8888
Product name: 8 ports CDMA Fixed Wireless Terminal/CDMA gateways
Frequencies: CDMA 800Mhz/1900Mhz 2000 1x RTT
Features:
It is a 4 channels CDMA Gateway that has 4 ports FXS interfaces.
It can connect with ordinary telephone set,PBX or VOIP Gateway,call back system etc.
Dialing tone frequency:450hz
RUIM card Support
Caller ID display
DTMF Dialing
Bell signal
Polarity reversal
The RJ-11 socket which connect the phone or billing system for metering purpose
Antenna socket (SMA)
IP Presetting.
Working status indicator
Signal Strength indicator
Technical Specifications
CDMA 800Mhz 2000 1X RTT
Frequency Rate
-RX Frequency: 869.64-893.37MHz
-TX Frequency: 824.64-849.37MHz
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>1.5db
Sensitivity:<-104DBM
Transmitting power<3W
Adapter interface:INPUT:AC 175~260V
OUTPUT:+12V/1000MA
Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >1.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA
Package:
Product dimension: L455x W280 x H45mm
Gift box dimension: L510x W170x H64mm
G.W: 4.5kg
