8 channels cdma fixed wireless terminal for pabx call extension

Specifications

-800MHZ Ruim
-8 Calls same time
-Dtmf Caller ID/Reversal polarity
-Good compatility for VOIP Gateway/PBX/Asterisk



1,General Description:

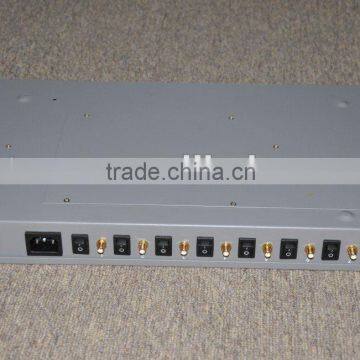

Etross-8888 is a CDMA to Analog Converter, the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN) except your calls will go out the CDMA network. This device can both receive and make calls.



The main application is: Connecting the RJ-11 FXS line to connect Ordinary telephone set for voice call, to connect PBX for call extentions, to connect billing systems for public phone use, to connect VoIP gateway to realize VoIP call termination, to connect alarm system for security purpose, etc. It is not a VOIP gateway, nor a GSM+VOIP gateway, It is a CDMA Fixed Wireless Terminal that produces a Analog FXS phone line.

2,Features:

1) It is a 8 channels CDMA Gateway that has 8 ports FXS interfaces;

2) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc.;

3) Dialing tone frequency:450hz;

4) Can adjust dial interval from 0.5sec to 9 secs by setting up from telephone set;

5) Can adjust voice volume by setting up from telephone set;

6)UIM card supported (1.8V, 3V);
7) Caller ID display;
8) DTMF Dialing;
9) Bell signal;
10) Polarity reversal;
11) The RJ-11 socket which connect the phone or billing system for metering purpose;
12) Antenna socket (SMA);
13) IP Presetting;
14) Working status and Signal Strength by LED indicator;

3,Technical Specifications
Phone interface: supply RJ-11 Phone Interface
Hanging voltage: 45V
Picking off voltage: 30mA / 41mA
Dialing tone Frequency: 450Hz
Antenna interface: Antenna amplifying>2.5db
Sensitivity:<-104DBM
Transmitting power<3W
AC-Adapter interface: INPUT: AC 110~240V
OUTPUT: 5V 7A

AC-Power type: EU,US,AU,British can be optional

4,Operation Circumstance:
Operation temperature: -10c~60C
Storage temperature:-20C~70C
Operation humidity:45%-95%
Atmosphere pressure:86-106Kpa
Environment noise: <60DB
Transmitting Power:2W
Sensitivity: <-104dbm
Antenna Amplifying: >1.5db
Dialing frequency: 450Hz
Hanging voltage: 45V
Picking current: 30mA/41mA



5,Checking Package:
ETROSS-8888 CDMA 8 PORTS FWT: 1pcs;

Power Supply Cable: 1pcs,

GSM Antenna with 3m cable: 8pcs,

User’s Manual 1pcs.

Product dimension: L455x W280 x H45mm
Gift box dimension: L510x W170x H64mm
G.W: 4.5kg
