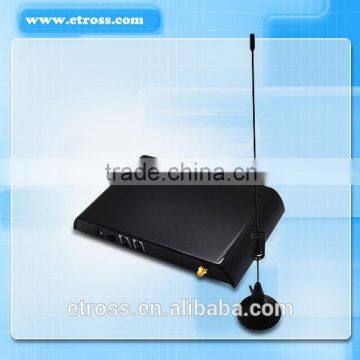

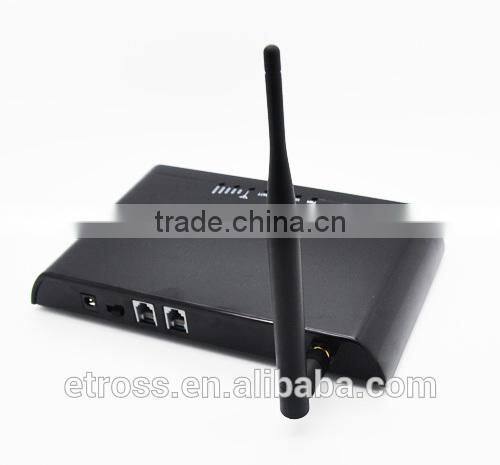

3g Wcdma Gsm Fwt 8848

Specifications

General Description:

3G WCDMA FWT8848 is a WCDMA to Analog Converter(single port, insert 1 sim card only), the device can produce a FXS line to allow a regular phone to be connected and u sed just like a local landline(PSTN) except your calls will go out the GSM network. This device can both receive and make calls. The main application is: Connecting the RJ11 FXS line to connect Ordinary telephone set for voice call; to connect PBX for call extensions; to connect billing systems for public phone use; to connect VoIP FXO gateway to realize VoIP call termination; to connect alarm system for security purpose, etc. It is not a VOIP gateway, nor a GSM+VOIP gateway, It is a GSM Fixed Wireless Terminal that produces an analog FXS phone line

Advantage :
1.more than 7 years manuafaturer
2.CE&RoHS
3.Imei changeble ; polarity reversal signal for billing meter while connection ; multi-useage
4.good technical support
5.Fast production
6.OEM &ODM service welcomed
All of our products have 1 year warranty

ATTN: Please confirm your network frequency before you place the order,
in North America, Central America,Caribbean and South America
------GSM Network frequency is: 850/1900Mhz or Quadband 850/900/1800/1900Mhz;

while in Europe,Asia,Africa,Oceania and Middle east,
------GSM frequency is GSM 900/1800Mhz.

Features and Functions:

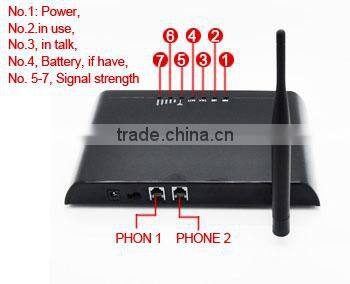

1) It is a 1 port WCDMA FWT which has 2 RJ-11 outputs for extensions;
2) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc.
3) Employ industrial module to make
4) Simple to install and easy to maintain
5) Steady module and reliable design ensures good performance
6) Provides optimized circuit directly connecting the exchange device for extensions
7) Compatible to most telephones, PBX device.
8) Strong signals with high gain antenna
9) Attractive plastic casing
10) SIM card supported (1.8V, 3V)
11) Caller ID display
12) Provides reversal polarity signal for metering
13) No noise and clear voice
14) Suitable for wide voltage range and low power consumption
15) Suitable for all kinds of weather and environment
16) Locking PIN / network (optional)

Specifications:
Air interface standard:
Longsung U6100 is a wireless module which is designed for the global market. It is a consumptive product; it can be designed in many kinds of applications which can work on HSPA/UMTS/EDGE/GPRS/GSM network.

U6100 support the Bands as the following:

3G Tri-Band UMTS/HSDPA/HSUPA (WCDMA/FDD): 850/1900/2100 MHz;

2G Quad-Band GSM: 850/900/DCS1800/PCS1900 MHz

Phone interface: supply RJ-11 Phone Interface

Hanging voltage: 45V

Picking off voltage: 30mA / 41mA

Dialing tone Frequency: 450HzAntenna

interface: Antenna

amplifying>2.5dbSensitivity:<-104DBM

Transmitting power<3W

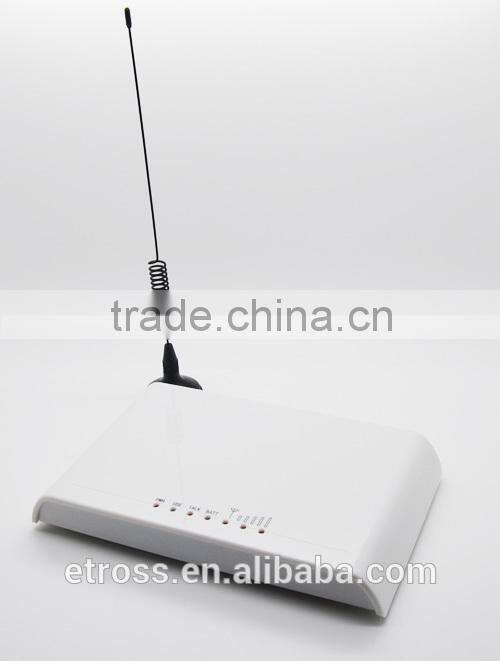

Color: White /Black (optional)

AC-Adapter interface: Input: AC 110~240VAC 50~60Hz Output: 12DC 1A.

AC-Adapter type: EU, US, AU, British can be optional
