3G FWT Fixed Wireless Terminal (WCDMA Mobile Phone Sim Card Converter)

3g fixed wireless terminal/ WCDMA mobile phone sim card converter/ 3G Terminal celular/3G Bass celular/3G WCDMA to PSTN line converter/ WCDMA 3G Gateway/3G UMTS Phone adapter/3G fixed mobile phone converter/3G Band Terminal

3G Requency: 3G/UMTS 850/1900MHZ
                             3G/UMTS 900/2100MHZ
                             3G/UMTS 850/2100MHZ

3G WCDMA FWT8848 is a WCDMA to Analog Converter(single port, insert 1 sim card only), the device can produce a FXS line to allow a regular phone to be connected and u sed just like a local landline(PSTN) except your calls will go out the GSM network. This device can both receive and make calls.

Application:

1) Can connect to regular telephone set

2) Can connect to pabx/pbx for incoming calls  extension

3) Can connect to home alarm system secuiryt

4) Can connect to payphone or phone billing meter

5) Can connect to fxo port voip gateway

2. Features:

1) It is a 1 port WCDMA FWT which has 2 RJ-11 outputs for extensions;

2) It can connect with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc.

3) Employ industrial module to make

4) Simple to install and easy to maintain

5) Steady module and reliable design ensures good performance

6) Provides optimized circuit directly connecting the exchange device for extensions

7) Compatible to most telephones, PBX device.

8) Strong signals with high gain antenna

9) Attractive plastic casing

10) SIM card supported (1.8V, 3V)

11) Caller ID display

12) Provides reversal polarity signal for metering

13) No noise and clear voice

14) Suitable for wide voltage range and low power consumption

15) Suitable for all kinds of weather and environment

16) Locking PIN / network (optional)

3.Technical Specifications:

Phone interface: supply RJ-11 Phone Interface

Hanging voltage: 45V

Picking off voltage: 30mA / 41mA

Dialing tone Frequency: 450HzAntenna

interface: Antenna

amplifying>2.5dbSensitivity:<-104DBM

Transmitting power<3W

Color: White /Black (optional)

AC-Adapter interface: Input: AC 110~240VAC  50~60Hz  Output: 12DC 1A.

AC-Adapter type: EU, US, AU, British can be optional

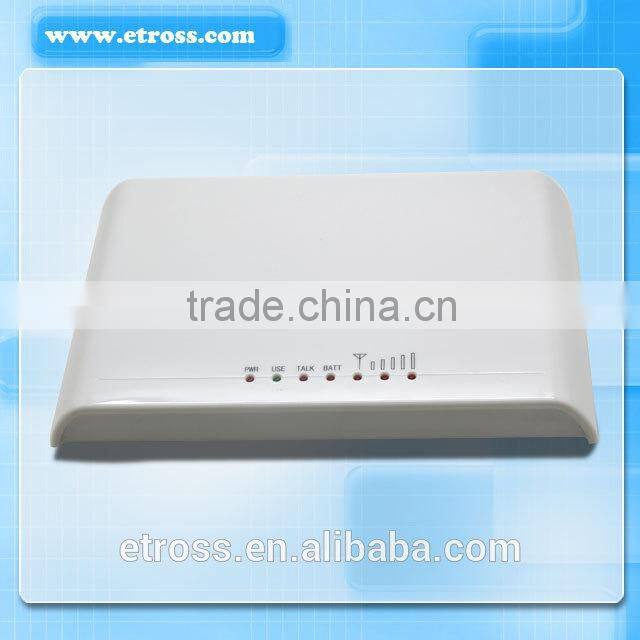

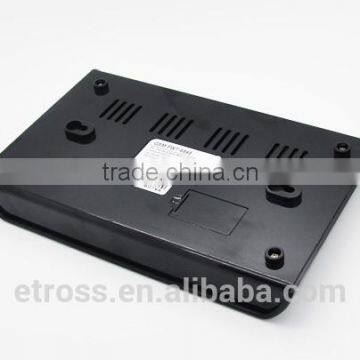

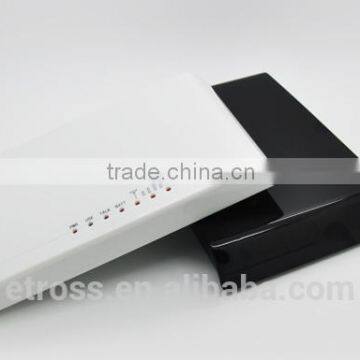

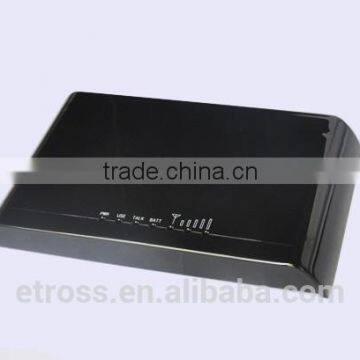

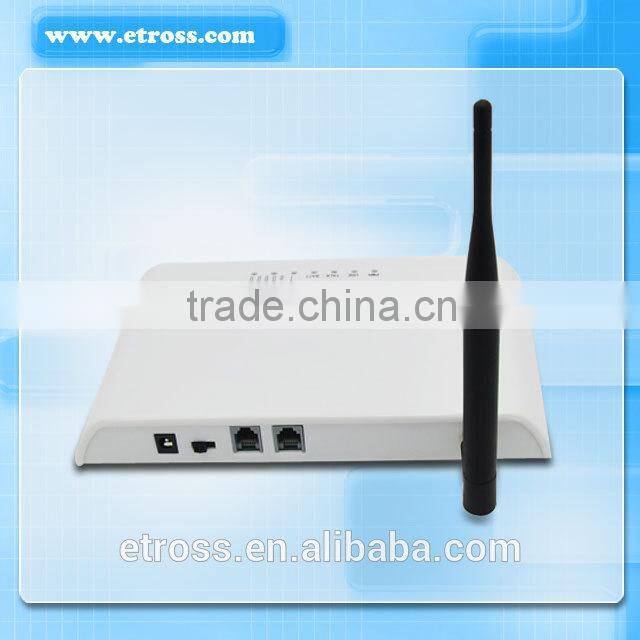

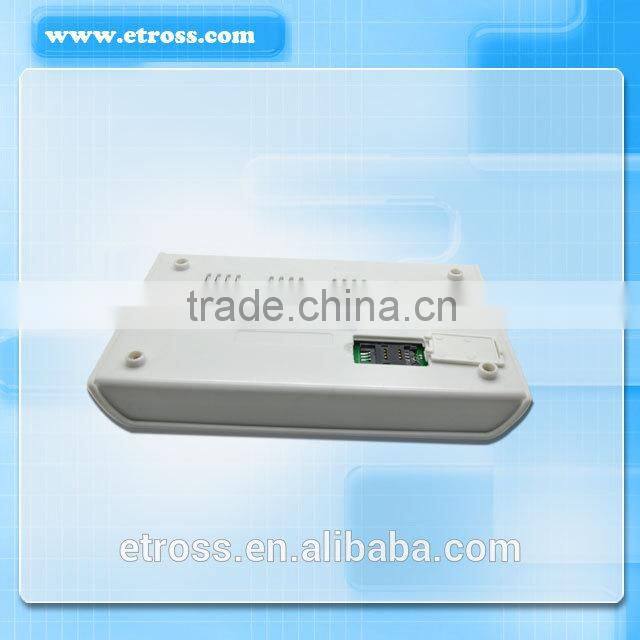

Photo view:
