Specifications
High-speed AMD Chipset Motherboard4 COM ports expansion
10/100/1000M ethernet controller

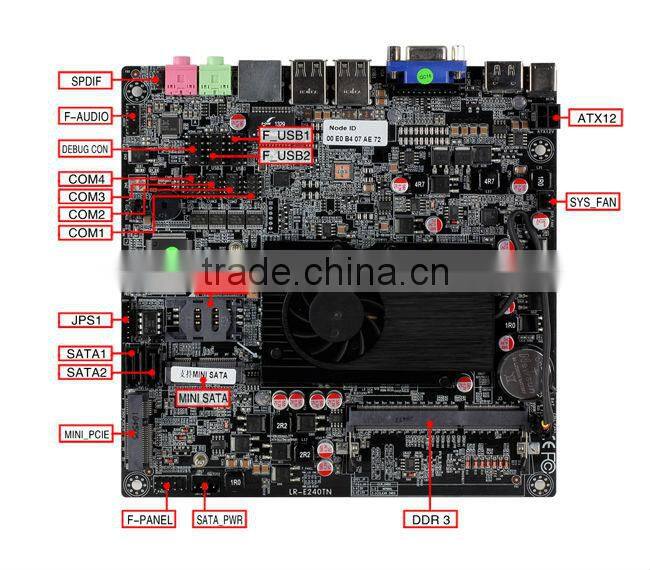

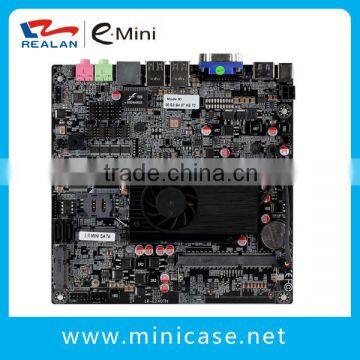

Realan 2013 The Newest Mainboard LR-E240TN
Motherboard Specification | |||
Model |
• LR-E240TN |
Graphic Display |
• AMD HD6310 |
CPU |
• AMD-E240 single-core processor 1.5G |
Expansion Slot |
• 1*SIM |
MINI_PCIE |
• 2 |
||
Chipset |
• I/O chipset A55E |
Serial ATA |
• 2*SATA |
Memory |
• 1*SO-DIMM DDR3 1333MHz |
LAN |
• 1* Realtek 8111E,10/100/1000M ethernet controller |
• Support 8GB memory |
Sound Chip |
• ALC662 2/4/5.1channel output |
|
Front I/O Interface |
• 2 sets of USB pin, for 4*USB2.0; • 2 fan connectors, for CPU fan and system fan; • 1* Audio pin; • 4*COM pin; • 1* 12PIN VGA; • 1 * 7PIN PS2; • 1*LVDS pin (optional); • 1*HDMI pin (optional) |
Rear I/O Interface |
• 4* USB2.0 • 1* VGA • 1* 12V DC input • 1* HDMI • 1* LAN • 1* audio |
|
System Monitoring and Management
|
• Wake On LAN |
||
BIOS |
• 4/8Mbit flash memory |
Working Environment Humidity |
0% ~ 95% (relative humidity, non-condensing) |
Type |
• MINI-ITX (4*PCB) |
||
O/S |
Windows XP, Windows 2000,Linux, Win CE, Windows 7, Windows 8 |
||
Operating Temperature |
0°C ~ 50°C |
Special Performance |
without |
• AMD-E240TN Processor
The new generation AMD single-core processor E-240 with AMD Radeon™ HD 6310 graphics. Realan LR-240 motherboard will continue to provide innovation through integrated graphics built directly into the CPU, and these will also make smaller and more energy efficient designs.
• AMD HD6310
Integrated AMD Radeon HD6310M, its graphics processing is comparable to middle discrete graphics. It can support Direct X 11, 1080P high-definition videos and 3D games, and all these can greatly meet your entertainment needs!
• SO-DIMM DDR3 1333MHz 8GB
Support 8GB DDR3 1333MHz a memory expansion with less power consumption, lower working voltage, higher frequency and faster speed. The function of DDR3 1333 is much higher than DDR2!

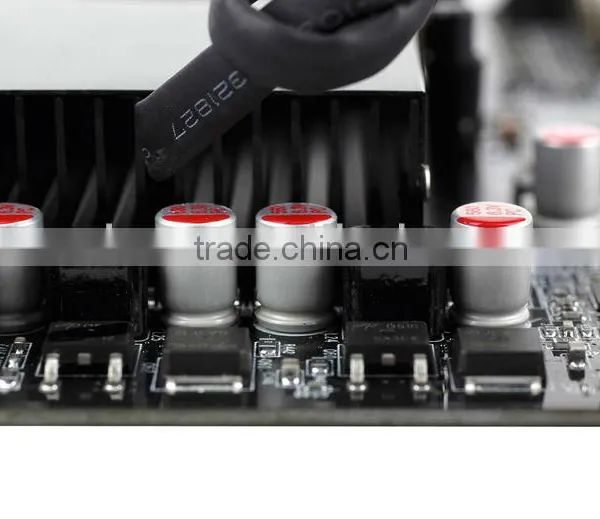

• Japanese Lower ESR Solid Capacitor
The actual operation is much more than 50,000 hours. Not only use high-quality components, but also ensure the stability and service life of motherboard.

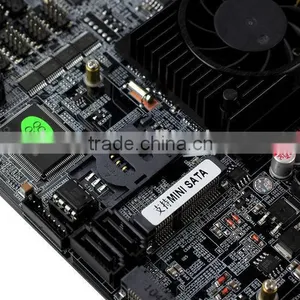

• 3G-SIM Slot
Support 3G wireless networking. With the development of information age, there are some very high requirements on wireless communication, and the becoming of 3G card meets people’s demands. You can easily surf the Internet.
• Realtek 8111E, 10/100/1000M Ethernet Controller
Three-speed ethernet controller, self-adaption 10M/100M/1000M ethernet network. There is a high-speed network interface which can support the best network linking with 1,000 Mbps. You will get a wonderful online enjoyment.
• SATA 3Gb/s Storage Interface
The transmission bandwidth is from 1.5Gb/s to 3Gb/s. It will not only double SATA speed, but also benefit for bandwidth utilization, data backup and storage.

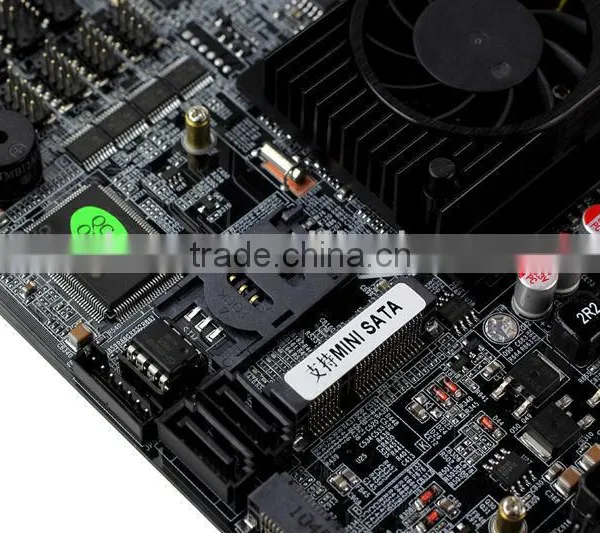

• Onboard Mini PCI, High-Speed SSD
Support onboard mini PCI & SSD expansion which owns a lot of advantages like fast random access, the slowest seek time, low-consumption, silent, anti-vibration, small size, large operating temperature range and so on! It is much better than an ordinary HDD.
• High-Definition HDMI Display Output
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
• Support Multi-System
Fully support Windows XP, Windows 2000,Linux, Win CE, Windows 7, Windows 8….
Hardware Features:
Graphic Display |
Description |
|||||||
Display Chip & Core |
AMD Radeon HD6310 |
|||||||
Interface Type |
VGA |
DB15 |
||||||
LVDS |
1*30Pin outlet (24bit) two-channel |
|||||||
DVI |
without |
|||||||
Display Mode |
Dual-display |
Support dual display mode (replication model, expansion mode) (DOS display) |
||||||
Interface |
1*12PIN VGA:

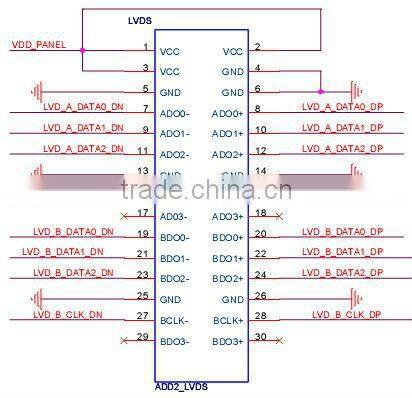

1*30 PIN LVDS CONNECTOR PIN:
inverter power supply interface INVERT2:
working voltage pin LVDS_PWRL1: (behind HDMI)
|
|||||||
Audio |
Description |
Audio Codec |
Realtek ALC982 |
Audio Pin |
Pin:
|
Pin Type |
2.54mm 2*5pin header |
LAN |
Description |
LAN Card |
Realtek RTL8111E |
Function |
10/100/1000Mbps self-adaption, support PXE guide and wake on lan |
Interface Type |
RJ45 |
Lan Card Lamp |
-- |
USB |
Description |
Interface Type |
USB2.0/1.1 |
Rare Interface |
4 |
Front Pin |
USB PIN: 1. VCC 2. VCC 3. DATA0- 4. DATA1- 5. DATA0+ 6. DATA1+ 7. GND 8. GND 9. NC(CUT) 10. GND |
Interface and Pin Type |
2*5Pin header/2.54mm |
Hard Disk Interface |
Description |
Interface Type |
2*SATA Port; |
Pin |
|
COM |
Description |
COM Function |
4* com port |
COM Position |
4*Pin |
Front COM |
front side (standard RS232) full signal RS232 2*5 PIN 1. DCD 2. RXD 3. TXD 4. DTR 5. GND 6. DSR 7. RTS 8. CTS 9. RI 10. NC(CUT) |
Why Realan:
We are a very professional manufacturer for mini computer cases and power supplies, with the rich experience for over 10 years of developing and producing pc cases. Determination achieves quality, Realan is always keeping the production philosophy that doing by heart, win to win, providing the higher products value cooperation. And our products have been exported to East Asia, Southeast Asia, Middle East, North America, South America, Europe, Africa, Australia and other countries.
Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
