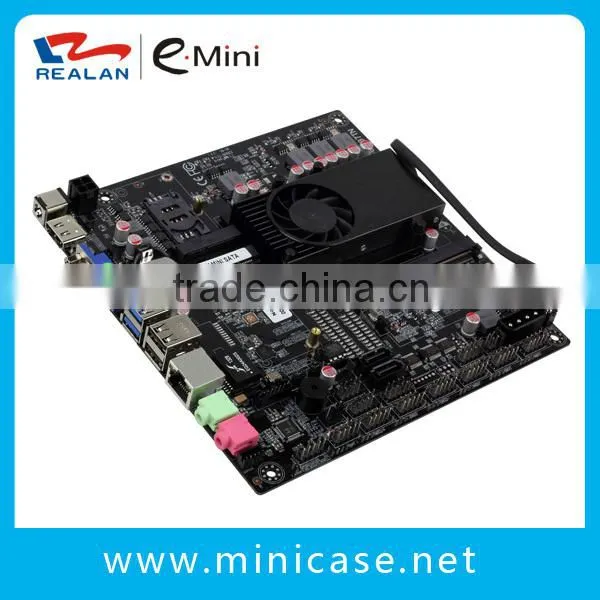

Realan New Intel C1037U Dual-Core 1.8GHz High-quality Mainboard

Specifications

High-quality Mainboard
Japanese Lower ESR Solid Capacitor
6 COM Ports Expansion

Realan 2013 The Newest Mainboard LR-C1037TN







Motherboard Specification
Model	• LR-C1037TN	Graphic Display	• HD Graphics 2000
CPU	• Intel C1037U dual-core 1.8GHz	Expansion Slot	• 1*SIM
		MINI-PCIE	• 2
Chipset	• Intel NM70	Serial ATA	• 2*SATA
Memory	• 1*SO-DIMM DDR3 1333MHz	LAN	• 1* Realtek 8111E, 10/100/1000M ethernet controller
	Support 4GB memory	Sound Chip	• ALC662 2/4/5.1channel output

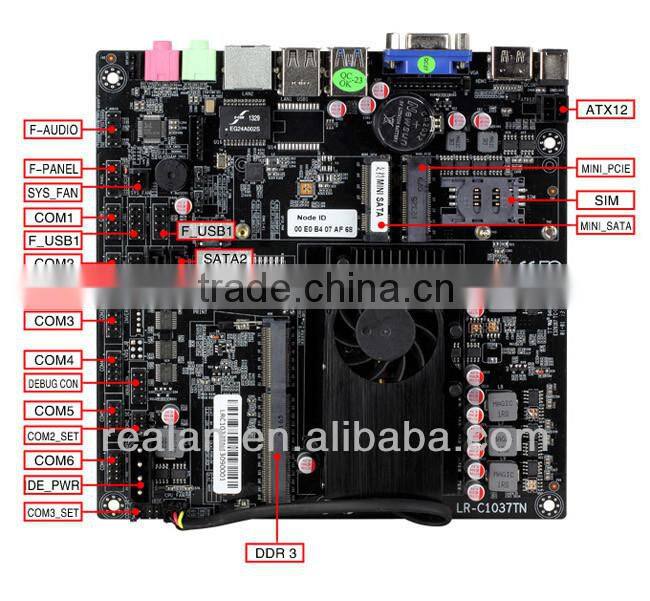

Front I/O Interface	• 2 sets of USB pin, for 4*USB2.0; • 2 fan connectors, for CPU fan and system fan; • 1* Audio pin; • 6*COM pin; • 1* 12PIN VGA; • 1* printer pin; • 1 * PS2 pin;  • 1*LVDS pin (optional); • 1*6PIN INVERT (optional)	Rear I/O Interface	• 2* USB2.0 • 2* USB3.0 • 1* VGA • 1* DC input • 1* HDMI • 1* LAN • 1* audio
		Monitoring and Management	• Wake On LAN • System power management • Thermal & voltage management • Fan speed monitoring
BIOS	• AMIBIOS • 4/8Mbit flash memory	Working Environment Humidity	0% ~ 95% (relative humidity, non-condensing)
		Type	• MINI-ITX (6*PCB) • 170mm x 170mm
O/S	Windows XP, Windows 2000, Linux, Win CE, Windows 7, Windows 8
Operating Temperature	0°C ~ 50°C	Special Performance	without





• Intel C1037U Dual-Core 1.8GHz

Third-generation IVB Celeron series U processor 1037, dual-core dual-thread 1.8GHz, TDP power consumption is only 17W. The processor is built-in 2D/3D graphics engine and hardware acceleration which can support various video formats and 720P/1080P high-definition videos.



• HD Graphics 2000

The newest display chip & core. The number of EU has increased by 30% and it also supports DirectX 11,OpenGL 3.1,OpenCL 1.1. In addition, according to Intel official introduction, this new graphics processing units (GPGPU) also supports games.



• Japanese Lower ESR Solid Capacitor

The actual operation is much more than 50,000 hours. Not only use high-quality components, but also ensure the stability and service life of motherboard.



• USB3.0

The newest USB3.0 chip, its transmission speed can be 5Gbp/s which is 10 times faster than USB2.0. In addition, the motherboard also owns advanced power management.



• 3G-SIM Slot

Support 3G wireless networking. With the development of information age, there are some very high requirements on wireless communication, and the becoming of 3G card meets people’s demands. You can easily surf the Internet.



• SO-DIMM DDR3 1333MHz 4GB

Support 4GB DDR3 1333MHz a memory expansion with less power consumption, lower working voltage, higher frequency and faster speed. The function of DDR3 1333 is much higher than DDR2!



• Realtek 8111E, 10/100/1000M Ethernet Controller

Three-speed ethernet controller, self-adaption 10M/100M/1000M ethernet network. There is a high-speed network interface which can support the best network linking with 1,000 Mbps. You will get a wonderful online enjoyment.



• SATA 3Gb/s Storage Interface

The transmission bandwidth is from 1.5Gb/s to 3Gb/s. It will not only double SATA speed, but also benefit for bandwidth utilization, data backup and storage.

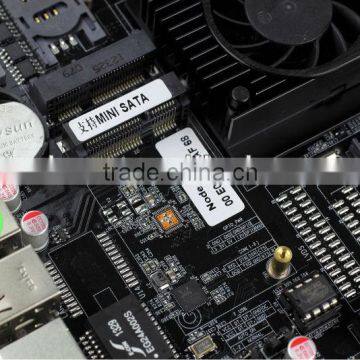

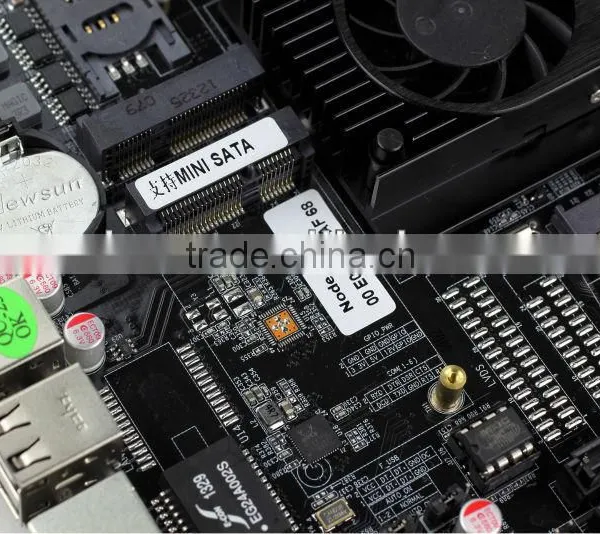

• Onboard Mini PCI, High-Speed SSD

Support onboard mini PCI & SSD expansion which owns a lot of advantages like fast random access, the slowest seek time, low-consumption, silent, anti-vibration, small size, large operating temperature range and so on! It is much better than an ordinary HDD.





• High-Definition HDMI Display Output

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.



• Support Multi-System

Fully support Windows XP, Windows 2000,Linux, Win CE, Windows 7, Windows 8….
