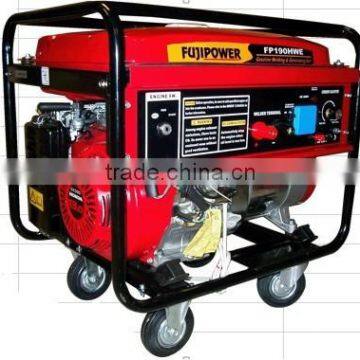

Gasoline Generator & Welding FP190HWE

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Fujipower		Model Number	FP160HWE
Frequency	50Hz		Rated Voltage	240V

Specification:

Model	FP190HWE
Type	190 Welding Generator
Generator -- DC(welding)Output >> Rated current	150A
Generator -- DC(Welding)Output >> Welding current	50 ~190A
Generator -- DC(welding)Output >> No-Load voltage(DC)	60 ~80V
Generator -- DC(welding)Output >> Working voltage(DC)	2.1 ~2.8Kw
Generator -- DC(welding)Output >> Rated output	3Kw
Generator -- DC(welding)Output >> Duty cycle	60%
Generator -- AC Output >> Rated voltage / frequency	240V 50Hz
Generator -- AC Output >> Rated amperage	2.0 Kva
Generator -- AC Output >> Rated output	2.0 Kva
Working Type	Continue
Cool type of engine and generator	Air-cooling
Engine -- Model	GX390 (Honda)
Engine -- Type	Air-cooled 4 stroke OHV 25° inclined single cylinder
Engine -- Bore x Stroke	88 x 64mm
Engine -- Displacement	396cm³
Engine -- Compression Ratio	8 : 1
Engine -- Max. Power output	13HP / 3600rpm
Engine -- Recommended Power Output	11.7HP / 3600rpm
Engine -- Ignition System	Transistorized magneto
Engine -- Starting System	Recoil start / Electric start
Engine -- Fuel tank capacity / Oil capacity	25 Litres / 1.1 litres
Engine -- Air cleaner	Semi-dry; Oil-bath; Silent; Cylone
Engine -- Operating Noise (at 7m)	72db
Dimension (mm)	700mm590mm580mm
Dry weight (KG)	98 / 102KG
