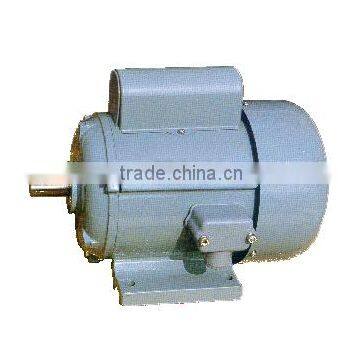

Single Phase Electric Motor JY Series
Negotiable
1 (Min.Order)
- 0 per Month
You May Like
Product Details
| Type | Asynchronous Motor | Phase | Single-phase | |
| AC Voltage | Other |
Product Description
JY Series single-phase capacitor start induction motor is suitable for any where a larger starting torque and the starting current to be limited are required, and is used as driving motor of air compressors, refrigerators, medical apparatus and other small machines in which full-loaded starting is demanded.
These series motors having 3 frame sizes 09, 1 and 2 are of totally enclosed fan cooled. The frames are made of cast iron or cast aluminum according to the request.
Detailed Description
- Shaft diameter or length can be any as customers request.
- Stator height can be any from 10mm to 50mm.
- Mounting holes size and distance can be any as customers needs.
- Brackets can be either metal or aluminum.
- Its height can be changed.
- Motor rotation direction can be CW or CCW.
- The motors can be customized according to the different voltages, frequencies and rotation speed.
| Type | JY1B-2 | JY2B-2 | JY09A-4 | JY1A-4 | JY2B-4 |
| Power Rating (HP) | 1/2 | 1 | 1/4 | 1/2 | 3/4 |
| Power Rating (KW) | 0.37 | 0.75 | 0.18 | 0.37 | 0.55 |
| Current (A) | 3.74 | 6.81 | 2.52 | 4.03 | 5.12 |
| Power Factor | 0.75 | 0.77 | 0.65 | 0.72 | 0.74 |
| Eff (%) | 60 | 65 | 50 | 58 | 66 |
| Speed (R/MIN) | 2800 | 2800 | 1400 | 1400 | 1400 |
| Rotor Current / Rated Current | 25 | 45 | 16 | 30 | 38.5 |
| Max Torque/ Rated Torque | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Frame Size | 90S | 90L | 100L | 112M |
| Mounting Dimensions (MM)--A | 140 | 140 | 160 | 190 |
| Mounting Dimensions (MM)--B | 100 | 125 | 140 | 140 |
| Mounting Dimensions (MM)--C | 56 | 56 | 63 | 70 |
| Mounting Dimensions (MM)--D | 24 | 24 | 28 | 28 |
| Mounting Dimensions (MM)--E | 50 | 50 | 60 | 60 |
| Mounting Dimensions (MM)--F | 8 | 8 | 8 | 8 |
| Mounting Dimensions (MM)--G | 20 | 20 | 24 | 24 |
| Mounting Dimensions (MM)--H | 90 | 90 | 100 | 112 |
| Mounting Dimensions (MM)--K | 10 | 10 | 12 | 12 |
| Mounting Dimensions (MM)--M | 165 | 165 | 215 | 215 |
| Mounting Dimensions (MM)--N | 130 | 130 | 180 | 230 |
| Mounting Dimensions (MM)--P | 200 | 200 | 250 | 250 |
| Mounting Dimensions (MM)--R | 0 | 0 | 0 | 0 |
| Mounting Dimensions (MM)--S | 12 | 12 | 15 | 15 |
| Mounting Dimensions (MM)--T | 3.5 | 3.5 | 4 | 4 |
| Overall Dimension (MM)---AB | 180 | 180 | 220 | 250 |
| Overall Dimension (MM)---AC | 185 | 185 | 220 | 250 |
| Overall Dimension (MM)---AD | 160 | 160 | 180 | 190 |
| Overall Dimension (MM)---HD | 240 | 240 | 260 | 300 |
| Overall Dimension (MM)---L | 370 | 400 | 430 | 455 |
