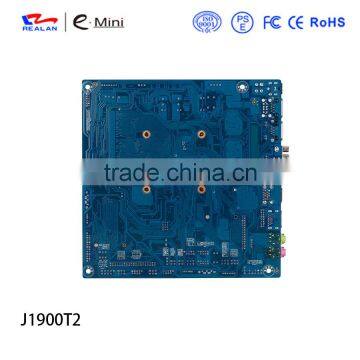

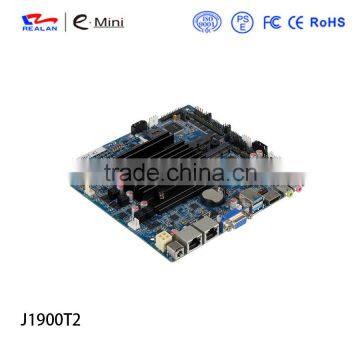

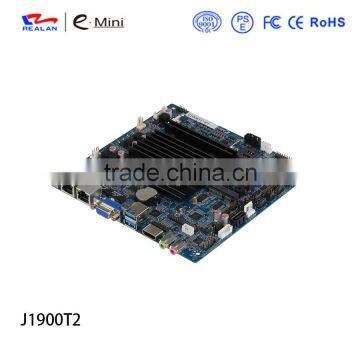

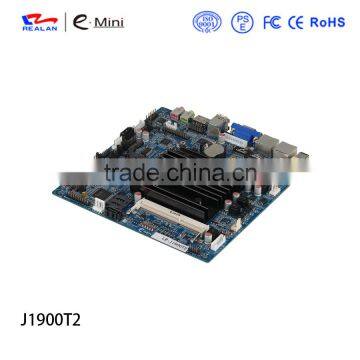

Realan Desktop fanless Mini-ITX Motherboards with J1900 processor 2 lan 6 com hdmi and vga
- 1.All of Realan products under the hl-tech corporation standard production
- 2.CE RoHS Approved
- 3.Promise made promise delivered
- 4.Serve professionally
- 5.No lowest price but always value for money
Detailed specification
CPU |
1 Build-in Intel Celeron J1900 Quad Core 2.0G up to 2.41G |
RAM |
2 1*DDR3L SO-DIMM slot,support up to 8 GB 3 Support 1.35V DDR3L 1066/1333 MHz 4 Support non-ECC Ram |
Display Function |
5 Intel HD Graphics 6 1*HDMI 1.4, support up to 1920*1080 resolution 7 1*VGA, support up to 1920*1080 resolution |
Audio |
8 Build-in Realtek ALC662 HD Audio Controller 9 Support High Definition Audio 10 Support 2/4/5.1 surround sound (via HDMI) |
Network |
11 Build-in Realtek RTL8111E network chip |
Expansion Slot |
12 2*MINI PCI Express slot |
USB |
13 1*USB 3.0, 1*USB 2.0 14 6*USB 2.0(need expanding) |
Inscribe Pin |
15 2*MINI PCIE 16 1*F_Panel 17 1*SPDIF 18 1*CPU_FAN 19 1*SYS_FAN 20 2*SATA 21 6*COM 22 1*LVDS 23 1*PRINT 24 1*JPS1 25 1*GPIO 26 1*SPEAKER 27 1*ATX1 28 1*CIR 29 1*CLR_CMOS 30 1*AUTO_ON 31 1*VGA_H1 32 1*JHDMI1 |
Memory Interface |
33 2*SATA 3Gb/s SSD/HDD 34 1*mSATA |
Rear I/O Port |
35 1*DC_IN 36 1*USB2.0 37 2*RJ45 38 1*VGA 39 1*USB3.0 40 1*HDMI 41 1*HP_OUT 42 1*MIC_IN |
BIOS |
43 AMl BIOS |
Power |
44 DC_12V adapter |
Operating System |
45 Support Windows 8.1/8 32-bit/64-bit 46 Support Windows 7 32-bit/64-bit 47 Support Windows ES 7/8 |
Cooling |
49 M/B low power consumption, fanless cooling |
Others |
50 Operating temperature:-10℃~60℃ 51 Storage temperature:-20℃~80℃ 52 Operating humidity:5%-95% relative humidity, no condensation |
PCB Dimension |
53 170mm*170mm |
In the early 2002, Realan Computer was founded in Shenzhen. It is a Mini PC manufacturing corporation, combining self-research, self-manufacturing, self-brand and self-selling together, with E-mini/Realan as company logo and Mr.nuc as product logo.
After more than 10-year rapid growth, E.mini has become a leader corporation in the mini ITX field, and has contributed a lot in the leading and promotion of mini PC’s development. Realan has also become the largest mini pc corporation, with production and sales over 3 million pcs/year. For now, its products can be mainly divided into four parts:
1.Mini cases based on mini ITX type
2.Power supply based on mini ITX type
3.Mainboard based on mini ITX type
4.Barebone based on mini ITX type
