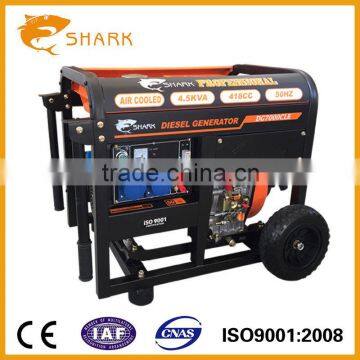

4.5KVA Luxuary Type Diesel Generator Set DG600CLE
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | Shark | |
| Model Number | DG5500CLE3 | Output Type | AC Three Phase | |
| Speed | 3000/3600 rpm | Frequency | 50/60Hz | |
| Rated Power | 4.5KW | Rated Voltage | 220/380V, 230/400V | |
| Rated Current | 8.3A DC output |
Product Description
Diesel Generator Set
Specifications:
1) 4.5/5.0KVA diesel generator
2) Frequency (Hz): 50/60
3) Max. AC output (KVA): 4.5/5.0
4) Rated AC output (KVA): 4.2/4.6
5) Rated AC voltage (V): 230/400, 240/416
6) Power factor: 1
7) Type: brush, self-excitation, 2-poles, three-phase
8) Voltage regulator: AVR
9) DC output: 12V/8.3A (option)
10) Engine model: SH186FE
11) Type: forced air-cooled, 4-stroke, Diesel Engine
12) Displacement (cc): 406
13) Max. output (HP/rpm): 10.0/3600
14) Fuel: diesel light fuel
15) Fuel tank capacity (L): 14
16) Continuous operating hours (H): 8.5/8.0
17) Oil: SAE 10W30 (above CC grade)
18) Oil capacity (L): 1.65
19) Ignition system: direct injection
20) Starting system: recoil + electric start
21) Operating noise level (7m)dB(A): 84/85
22) Net dimension L x W x H(mm): 720 x 480 x 580
23) Overall dimension L x W x H(mm): 735 x 49 5x 605
24) N.W./G.W.(kg): 97/100
Conveyance:
Qty/20' GP: 102pcs
Qty40' GP: 213pcs
Qty/40' HQ: 284pcs
