Home > Products > Diesel Generator sets > Diesel Generator Set
Diesel Generator Set
- Shanghai
- T/T
You May Like
Product Details
| Brand Name | SHARK | Model Number | DG3500CLE | |
| Output Type | AC Single Phase | Speed | 3000/3600 | |
| Frequency | 50/60Hz | Rated Power | 3.0/3.3KVA | |
| Rated Voltage | 220/230V | Rated Current | 8.3A |
Product Description
Specifications

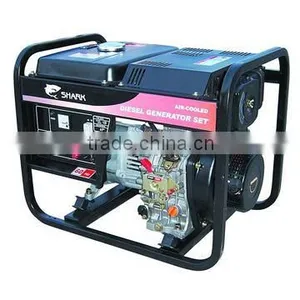

Diesel Generator Set3.0/3.3 KVA
Open Frame.
Diesel Generartor Set
Features:
1) 3.0/3.3KVA diesel generator with electric start and EPA approval
2) Frequency: 50/60Hz
3) Max. AC output: 3.0/3.3KVA
4) Rated AC output: 2.8/3.0KVA
5) Rated AC voltage: 110, 220, 230, 240, 110/220V, 120/240V
6) Power factor: 1.0
7) Tyre: brushless, self-excitation, 2-poles, single-phase
8) Voltage regulator: condenser type
9) DC output: 12V/8.3A (option)
10) Engine model: SH178FE
11) Type: forced air-cooled, 4-stroke, diesel engine
12) Displacement: 296cc
13) Max. output (hp/rpm): 6.0/3,600
14) Fuel: diesel light fuel
15) Fuel tank capacity: 14L
16) Continuous operating hours: 10.0/9.0
17) Oil: SAE 10W30 (above CC grade)
18) Oil capacity: 1.1L
19) Ignition system: direct injection
20) Starting system: recoil + electric start
21) Operating noise level(7m)dB(A): 81/83
22) Net dimensions (L x W x H): 640 x 480 x 535mm
Packing:
Overall dimensions (L x W x H): 655 x 495 x 555mm
N.W.: 75kg
G.W.: 78kg
Conveyance:
Qty/20' GP: 156pcs
Qty/40' GP: 324pcs
Qty/40' HQ: 324pcs
