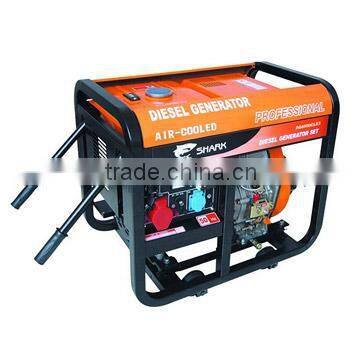

4.5KVA Luxuary Type Diesel Generator Set

4.5KVA Luxuary Type Diesel Generator Set thumbnail-1
4.5KVA Luxuary Type Diesel Generator Set photo-1
US$ 330 - 380 MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Shark
Model Number:
DG5500CLE3
Contact Supplier Request Quote Chat Now
Changzhou Shark Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Shark
Model Number DG5500CLE3
Output Type AC Three Phase
Speed 3000/3600 rpm
Frequency 50/60Hz
Rated Power 4.5KW
Rated Voltage 220/380V, 230/400V
Rated Current 8.3A DC output

Specifications

1.Diesel Generator Set, open frame,
2.portable with handles and wheels.

Diesel Generator Set



Specifications:
1) 4.5/5.0KVA diesel generator (EPA-approved)
2) Frequency (Hz): 50/60
3) Max. AC output (KVA): 4.5/5.0
4) Rated AC output (KVA): 4.2/4.6
5) Rated AC voltage (V): 230/400, 240/416
6) Power factor: 1

7) Type: brush, self-excitation, 2-poles, three-phase
8) Voltage regulator: AVR
9) DC output: 12V/8.3A (option)
10) Engine model: SH186FE
11) Type: forced air-cooled, 4-stroke, Diesel Engine
12) Displacement (cc): 406
13) Max. output (HP/rpm): 10.0/3600
14) Fuel: diesel light fuel
15) Fuel tank capacity (L): 14
16) Continuous operating hours (H): 8.5/8.0
17) Oil: SAE 10W30 (above CC grade)
18) Oil capacity (L): 1.65
19) Ignition system: direct injection
20) Starting system: recoil + electric start
21) Operating noise level (7m)dB(A): 84/85
22) Net dimension L x W x H(mm): 720 x 480 x 580
23) Overall dimension L x W x H(mm): 735 x 49 5x 605
24) N.W./G.W.(kg): 97/100

Conveyance:
Qty/20' GP: 102pcs
Qty40' GP: 213pcs
Qty/40' HQ: 284pcs
