Ultrasonic Cleaning Machines, Stencil Ultrasonic Cleaning Machines -YS-750
Model:YS-750
Product Description:
YS-750 pneumatic stencil cleaner is designed for solder paste and red glue printing stencil cleaning of SMT process. Driven by compressed air, constructed by super parts of pneumatic industry and our good manufacturing process, SME guarantee you an efficient ,reliable cleaning machine and high quality cleaning result. By “One button” easy operation, the machine complete “clean + dry “process automatically. Special designed pipe and patent rotation pod system guarantee stable jet pressure on stencil.
Machine features :
1. SUS 304 structure, Acid and Alkali corrosion resistance, 10 years lifespan.
2. Totally Driven by compressed air , no electric power, no fire or explosion risk caused by electrical spark .

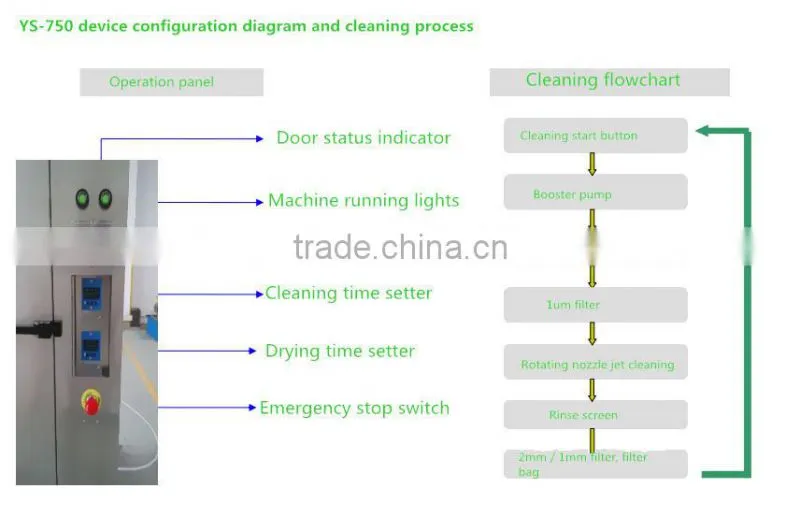

3. One button easy operation, clean and dry complete automatically
4. Special designed rotate rod and nozzle, ensure good cleaning quality and guarantee stable stencil tension

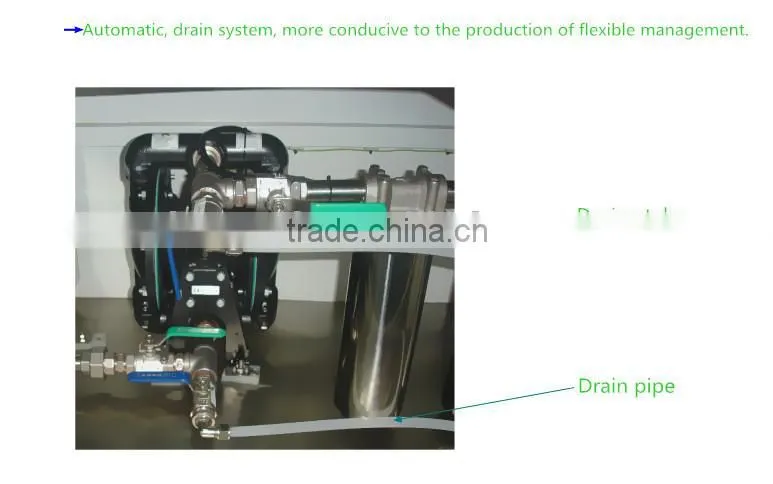

5. Equipped auto liquid fill in and drain function
6. Liquid recycle use to ensure low consumption
7. Inner-lock safety door, once open, machine stopped immediately to ensure operator safety

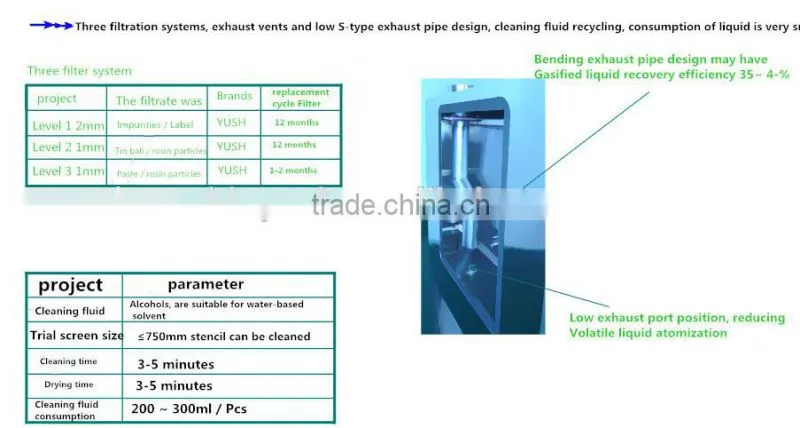

8. 3-level precise filtering system to make liquid clean by recycled use

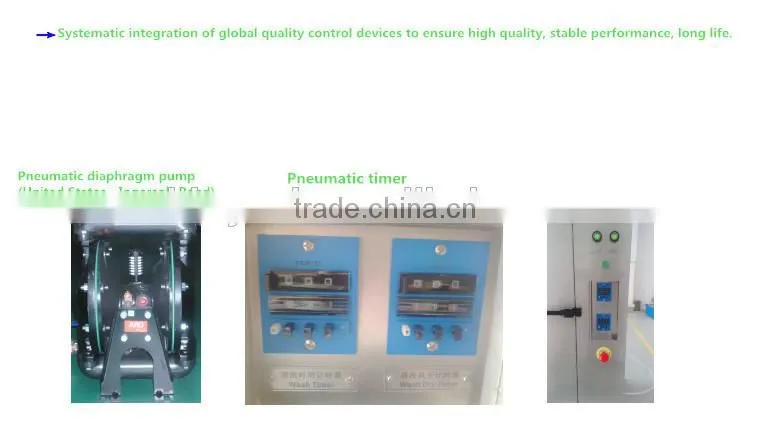

9. Super well-known Pneumatic parts from all over the word ensure stable use of the machine
Machine Specs:
|
ItemModel Number |
YS-750 |
Max stencil size |
L750 x W750 x H40(mm) |
Liquid tank |
Max: 40L; Min20L |
Clean time |
4~6min |
Dry time |
4~10min |
Air supply |
0.5~0.7Mpa |
Air consumption |
400~600L/min |
Clean type |
|
Filter system |
20um/5um/1um(3 level) |
Machine size |
L700 x W1000 x H1650(mm) |
Machine weight |
185KG |
